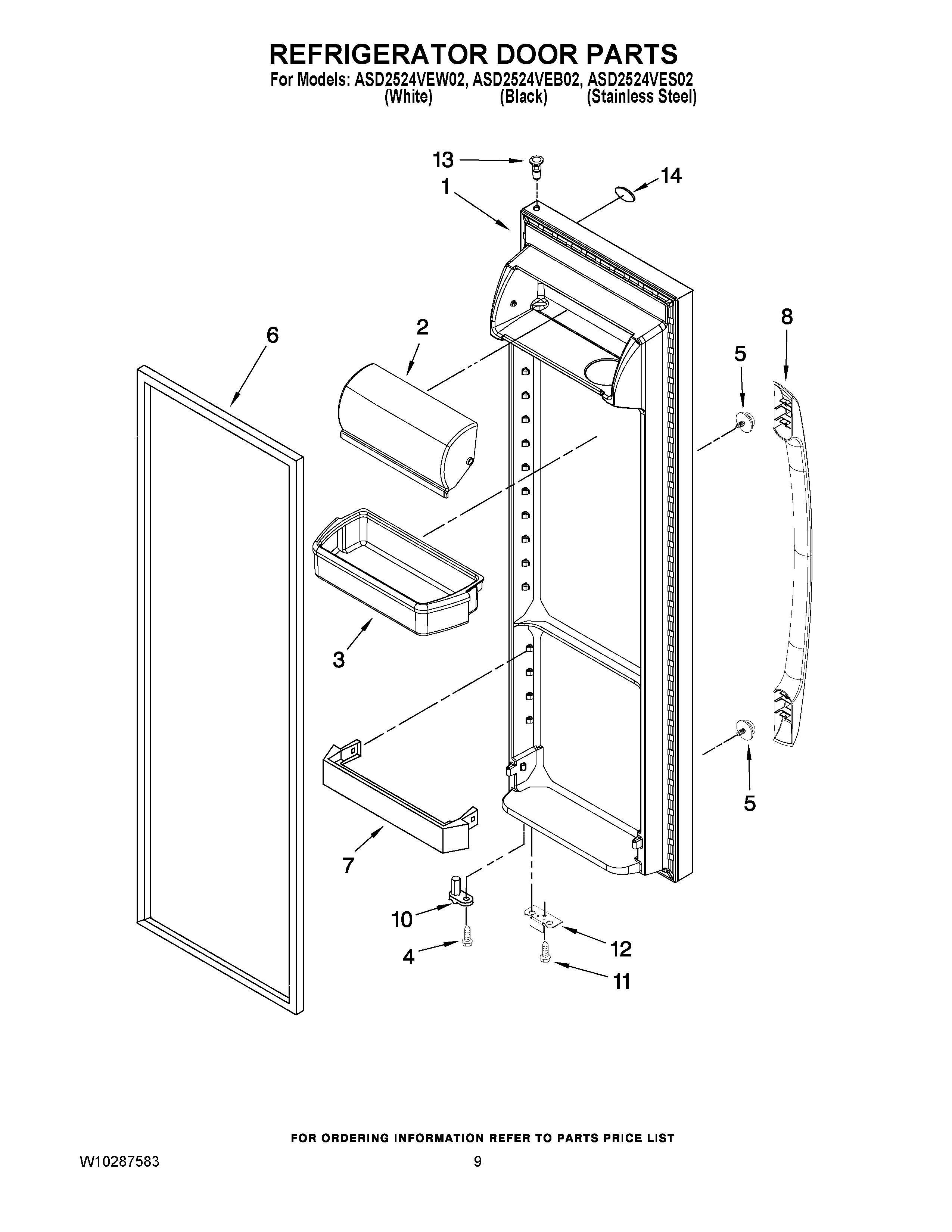

ASD2524VES02 06 – REFRIGERATOR DOOR PARTS

ASD2524VES02 06 – REFRIGERATOR DOOR PARTS

Written by

in

ASD2524VES02 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ITEM No.6) (STAINLESS STEEL)
1MAY W10173407
1MAY W10173409
2Door, Compartment
3MAY 2304235
4MAY 3400012
5MAY 2326016
6Door Gasket, Magnetic (Repair) (Mist Beige)
6Door Gasket, Magnetic (Repair) (Black)
7Shelf Bin
8Handle, RH (Black)
8Handle (White)
8Handle, Assy (Stainless Steel)
10DOOR CLOSER
11MAY 489420
12Bracket, Door Stop (Chrome)
12Bracket, Door Stop (Black)
13MAY 2308091
14STAINLESS
