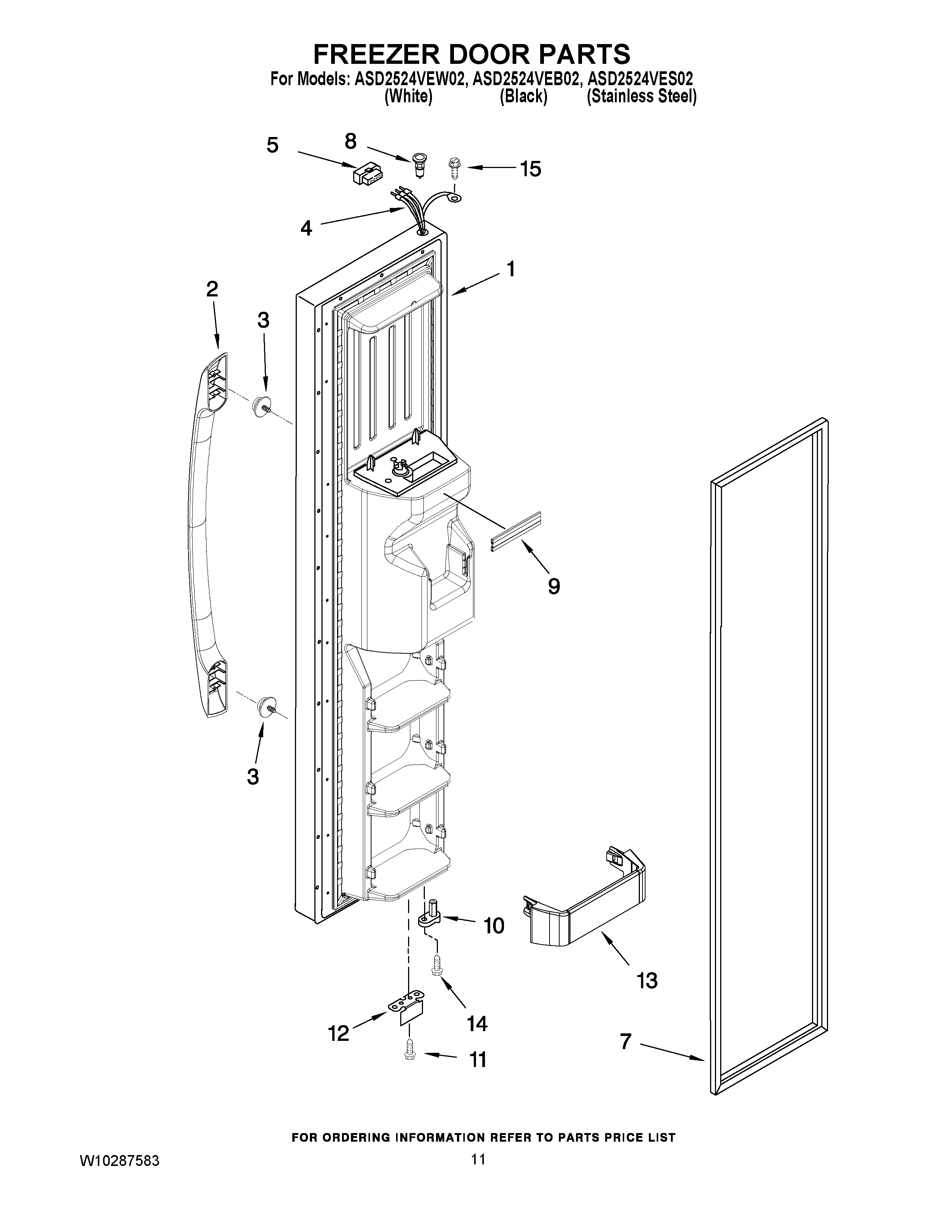

ASD2524VES02 07 – FREEZER DOOR PARTS

Products

Position	Product
1	FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (STAINLESS STEEL)
1	FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (BLACK)
1	FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (WHITE)
2	MAY W10179169
2	Handle, Assy (Stainless Steel)
2	MAY W10179171
3	MAY 2326016
4	DISPENSER HARNESS
5	Connector
7	Door Gasket, Magnetic (Repair) (Black)
7	Door Gasket, Magnetic (Repair) (Mist Beige)
8	Thimble-Top (For White, Black, Biscuit and Stainless VCM Models)
8	MAY 2308091
9	MAY 2209681
10	MAY 2323535
11	MAY 489420
12	Bracket, Door Stop (Black)
12	Bracket, Door Stop (Chrome)
13	MAY 2174267
14	MAY 3400012
15	SCREW
