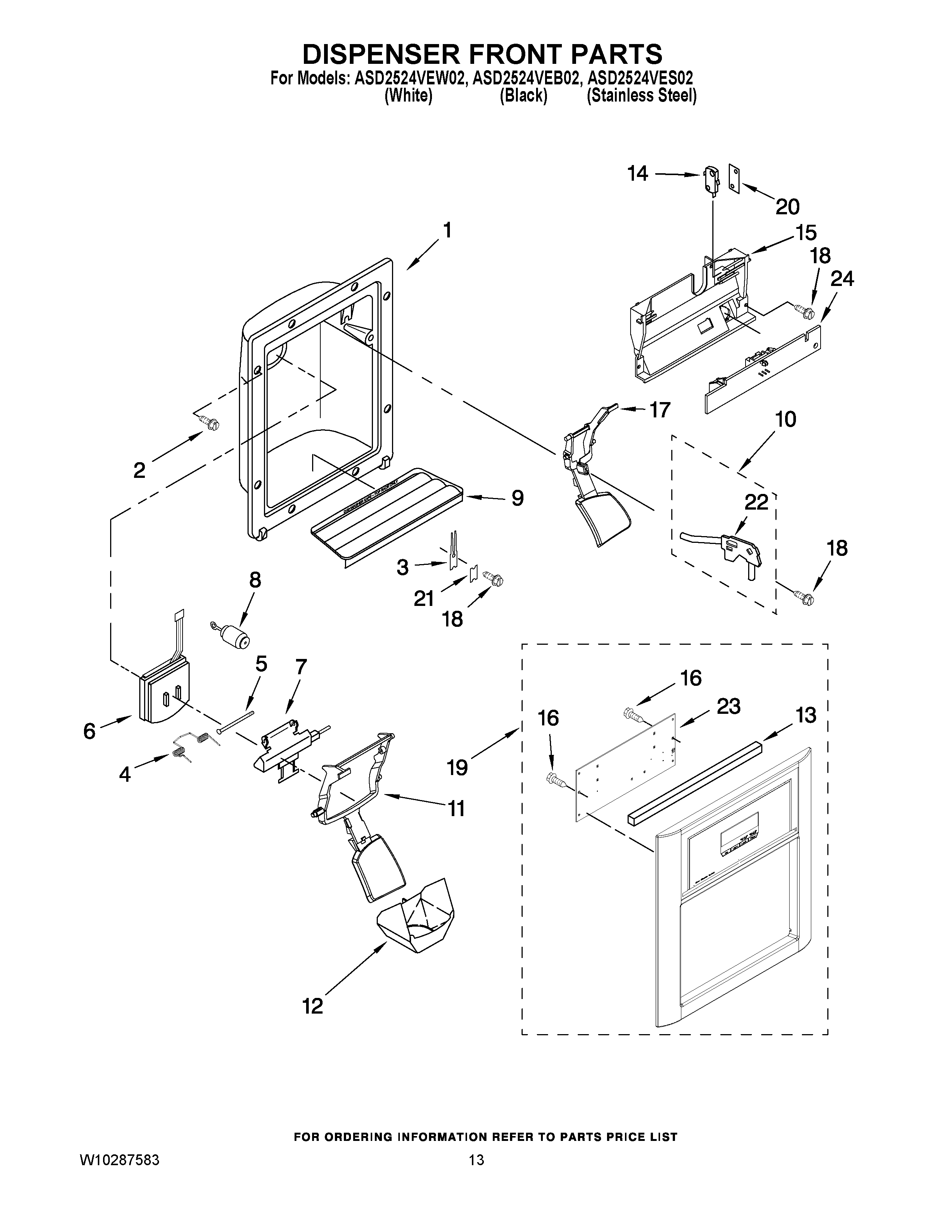

ASD2524VES02 08 – DISPENSER FRONT PARTS

ASD2524VES02 08 – DISPENSER FRONT PARTS

Written by

in

ASD2524VES02 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Screw
3	MAY 2194719
4	MAY W10224328
5	MAY 2196195
6	MAY 2180353
7	MAY 2304355
8	MAY 2205686
9	MAY W10189532
9	MAY W10189531
10	MAY W10133007
11	Lever, Ice Dispenser (White)
11	Lever, Ice Dispenser (Black)
12	MAY 2180224
13	MAY 2305571
14	Switch (4)
15	MAY W10206221
16	Screw (2)
17	Lever, Water Dispenser (White)
17	Lever, Water Dispenser (Black)
18	MAY 489000
19	MAY W10139879
19	MAY W10139881
20	MAY 625834
21	MAY 2195051
22	MAY 2304673
23	MAY W10170979
24	MAY W10245284
