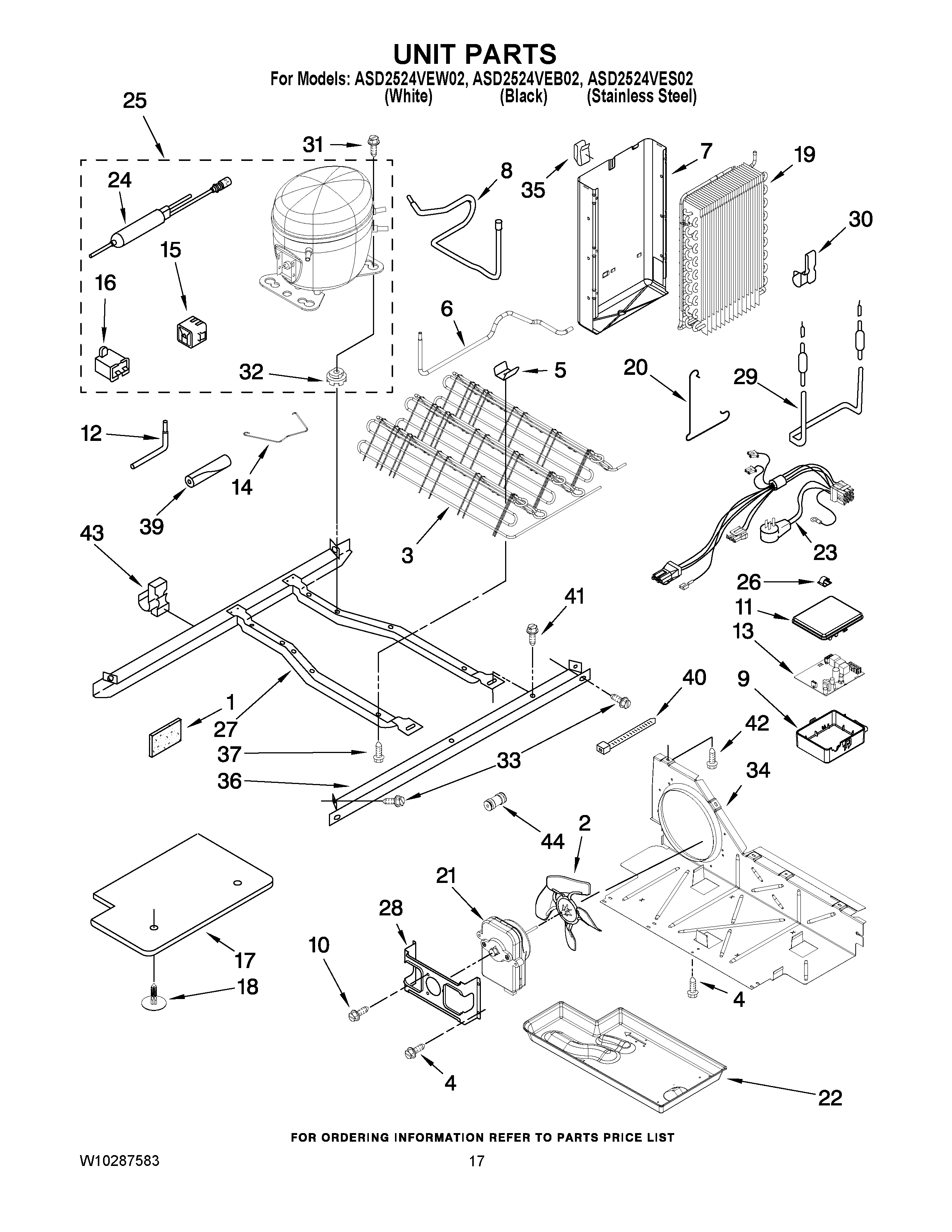

ASD2524VES02 11 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4``)
NI	Valve, Access (5/8``)
NI	Valve, Access (1/2``)
NI	VALVE, ACCESS (3/8``)
NI	Valve, Access (5/16``)
NI	VALVE, ACCESS (1/4``)
1	SEALER, INSULATION
2	Fan, Blade
3	Condenser Assembly (Also Order 7)
4	MAY W10001250
5	MAY 2216914
6	MAY 2161341
7	Heat Shield (Includes 26)
8	MAY W10177642
9	MAY 2326982
10	MAY 8533993
11	Box Cover
12	Tube, Process
13	MAY 2322547
14	MAY W10174384
15	Start-Device, Combination (Start Relay and Overload)
16	Capacitator (Production)
17	Unit Cover, Bottom
18	MAY 489396
19	Evaporator
20	Clip
21	MOTOR, CONDENSOR
22	MAY 1105523
23	Harness, Unit
24	Drier
25	Compressor (Includes Items 9, 12, 20 & 28) (Also Order 876765 Tube Kit)
26	MAY 1115374
27	MAY 2304904
28	MAY 2181929
29	MAY 2323198
30	MAY 2304287
31	MAY 489373
32	Grommet (Production)
33	MAY 489340
34	MAY 2196202
35	MAY 2155547
36	MAY 2305374
37	MAY 8281232
39	Sleeve, Pressure Switch Hose
40	Wire Tie
41	MAY W10146358
42	SCREW, 8 X 1/2
43	MAY W10169512
44	MAY W10133008
