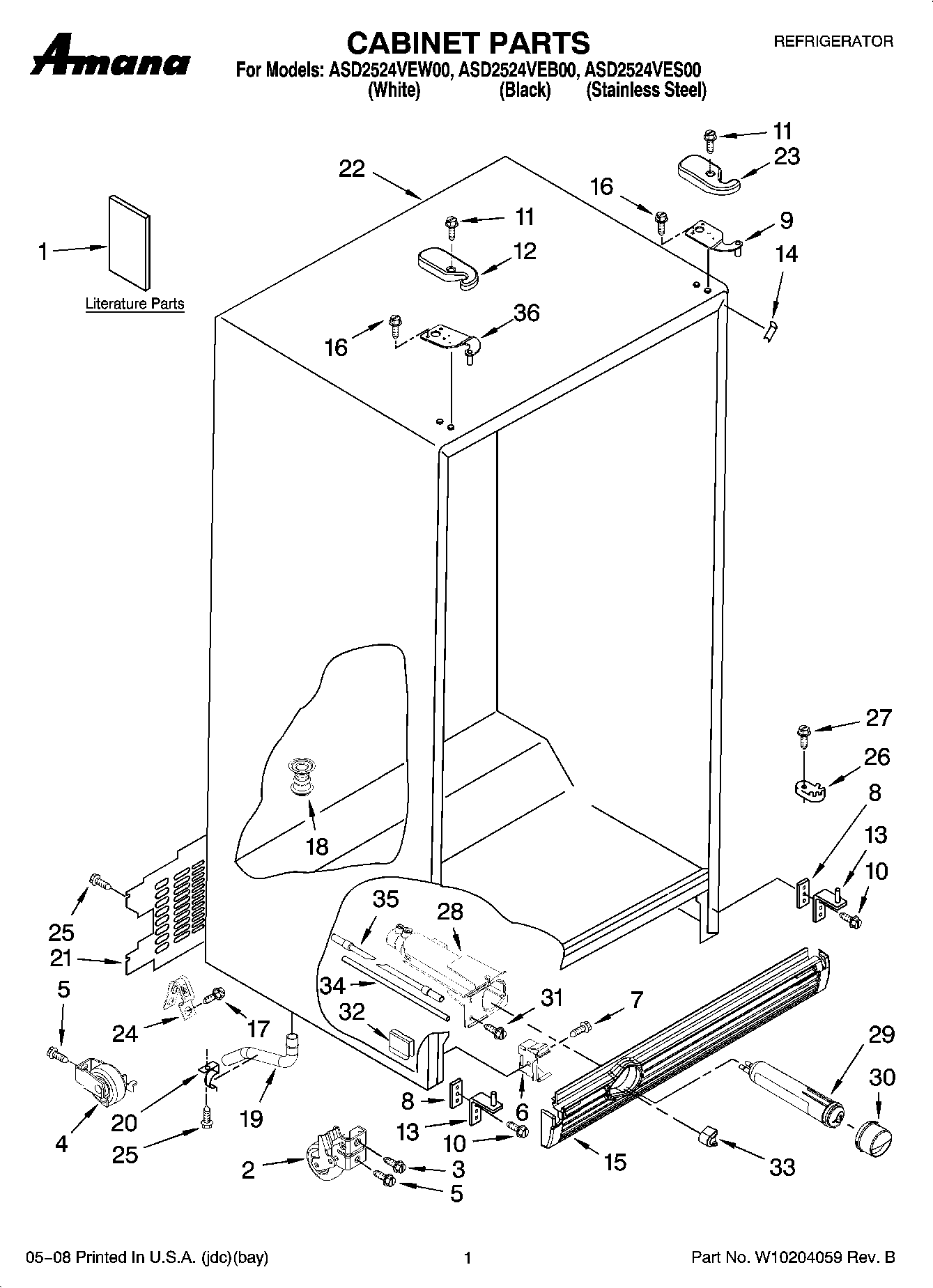

ASD2524VEW00 01 – CABINET PARTS
Written by
in
ASD2524VEW00 01 – CABINET PARTS
Products
Position
Product
1
MAY W10162456
1
MAY W10180856
1
MAY 628370
1
MAY W10194140
1
MAY W10168294
2
MAY 2174748
3
MAY 3400517
4
MAY 2196236
5
MAY 489427
6
MAY 2155013
7
MAY 489478
8
Shim
9
HINGE TOP RC
10
Screw (4)
11
MAY 8281227
12
Hinge Cover (FC) (White)
12
Hinge Cover (FC) (Black)
13
Hinge Bottom
13
Hinge Bottom (FC)
14
MAY 2304846
14
MAY 2304848
15
MAY W10184888
15
MAY W10184886
16
MAY 489497
17
Screw (3)
18
MAY 2304888
19
MAY 2304937
20
MAY 1108439
21
MAY 2188739
23
Hinge Cover (RC) (White)
23
Hinge Cover (RC) (Black)
24
MAY 549193
25
MAY 489084
26
CLOSER, FREEZER DOOR
26
MAY 2155311
27
MAY 489483
28
MAY 2260507
29
MAY 4396841
30
MAY 2260502B
30
MAY 2260502W
31
MAY 489500
32
Block, Housing Support
33
Button, Filter (Black)
33
MAY 2260503W
34
Tube, Filter Outlet
35
MAY 2319867
36
HINGE TOP, FC
←
