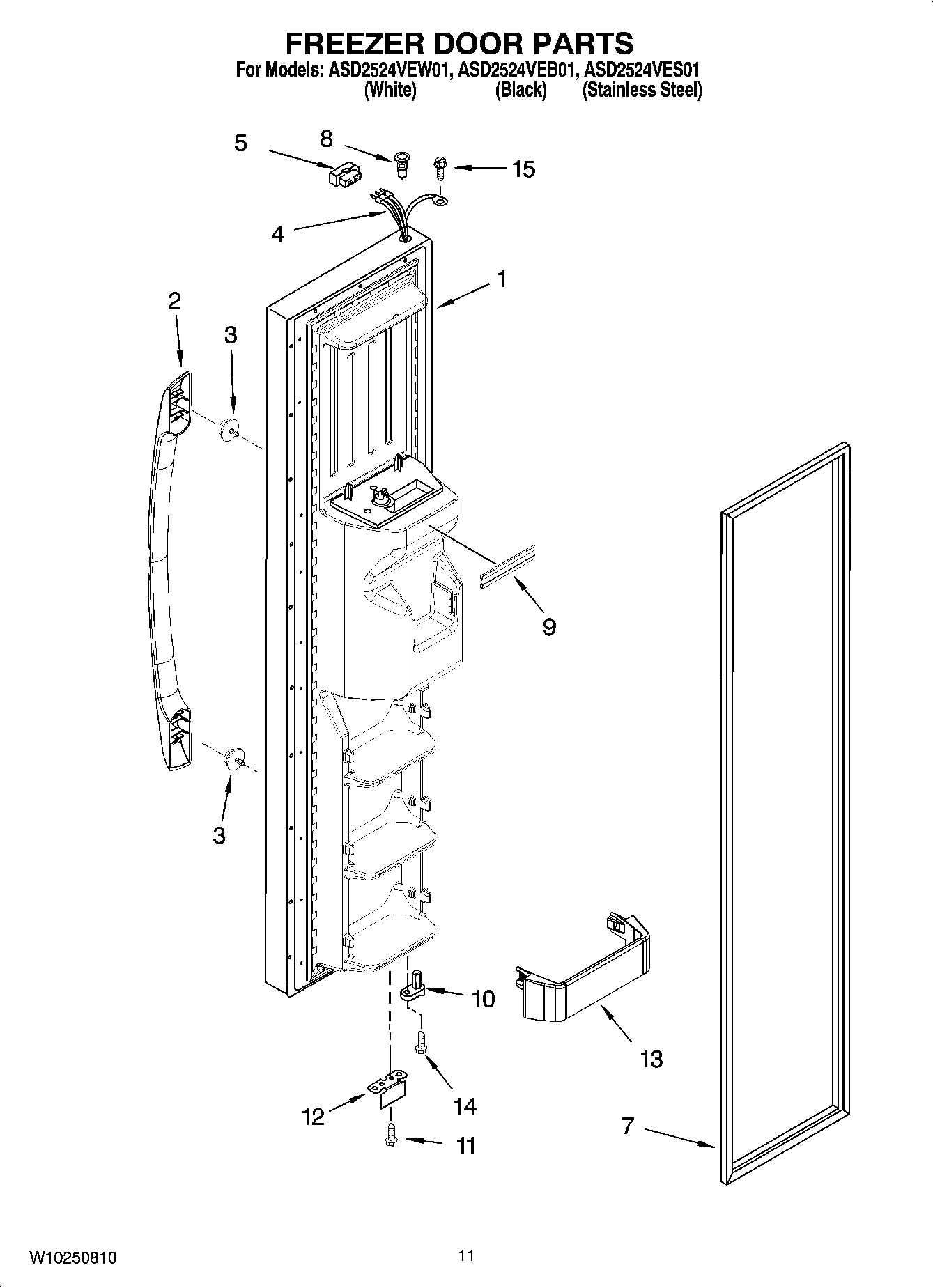

ASD2524VEW01 07 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (STAINLESS STEEL)
1FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (BLACK)
1FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (WHITE)
2MAY W10179169
2MAY W10179171
2Handle, Assy (Stainless Steel)
3MAY 2326016
4MAY W10167528
5Connector
7Door Gasket, Magnetic (Repair) (Black)
7Door Gasket, Magnetic (Repair) (Mist Beige)
8MAY 2308091
8Thimble-Top (For White, Black, Biscuit and Stainless VCM Models)
9Trim, Door (4)
10MAY 2323535
11MAY 489420
12Bracket, Door Stop (Black)
12Bracket, Door Stop (Chrome)
13Shelf (1)
14MAY 3400012
15SCREW
