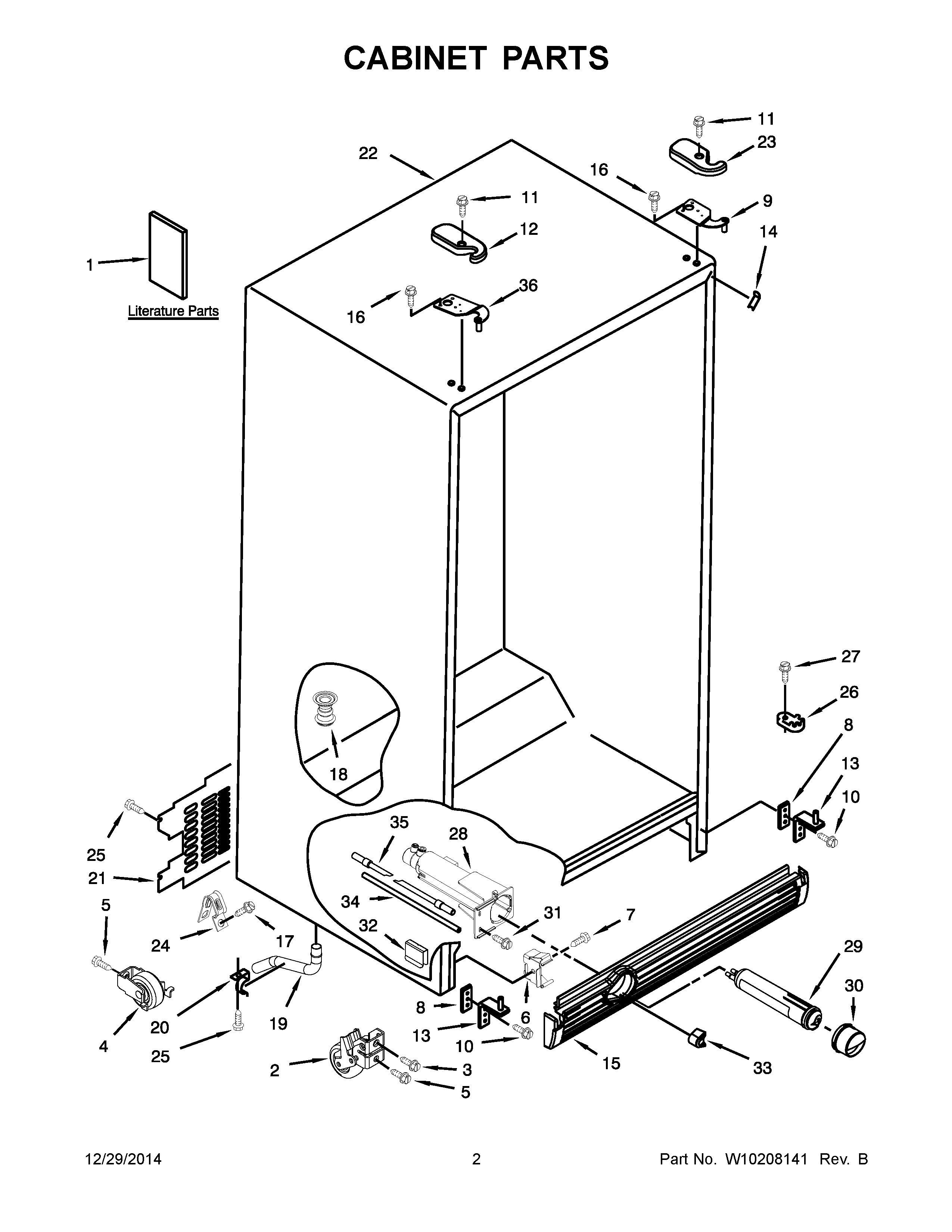

ASD2526VES00 02 – CABINET PARTS

Products

Position	Product
1A	MAY W10162456
1	MAY W10194140
1C	MAY 628370
1D	MAY W10168294
1B	MAY W10180856
2	MAY 2174748
3	MAY 3400517
4	MAY 2196236
5	MAY 489427
6	MAY 2155013
7	MAY 489478
8	Shim
9	HINGE TOP RC
10	Screw (4)
11	MAY 8281227
12	COVER, HINGE (FREEZER) (GREY)
13A	Hinge Bottom
13	Hinge Bottom (FC)
14	FILLER, WRAPPER (GREY)
15	GRILLE (MIDNIGHT GREY)
16	MAY 489497
17	Screw (3)
18	MAY 2304888
19	MAY 2304937
20	MAY 1108439
21	MAY 2188739
22	LINER (NOT A SERVICEABLE PART)
23	COVER, HINGE (REFRIGERATOR) (GREY)
24	MAY 549193
25	MAY 489084
26A	CLOSER, FREEZER DOOR
26	MAY 2155311
27	MAY 489483
28	MAY 2260507
29	MAY 4396841
30	CAP, WATER FILTER (GREY)
31	MAY 489500
32	Block, Housing Support
33	BUTTON, WATER FILTER (GREY)
34	Tube, Filter Outlet
35	MAY 2319867
36	HINGE TOP, FC
