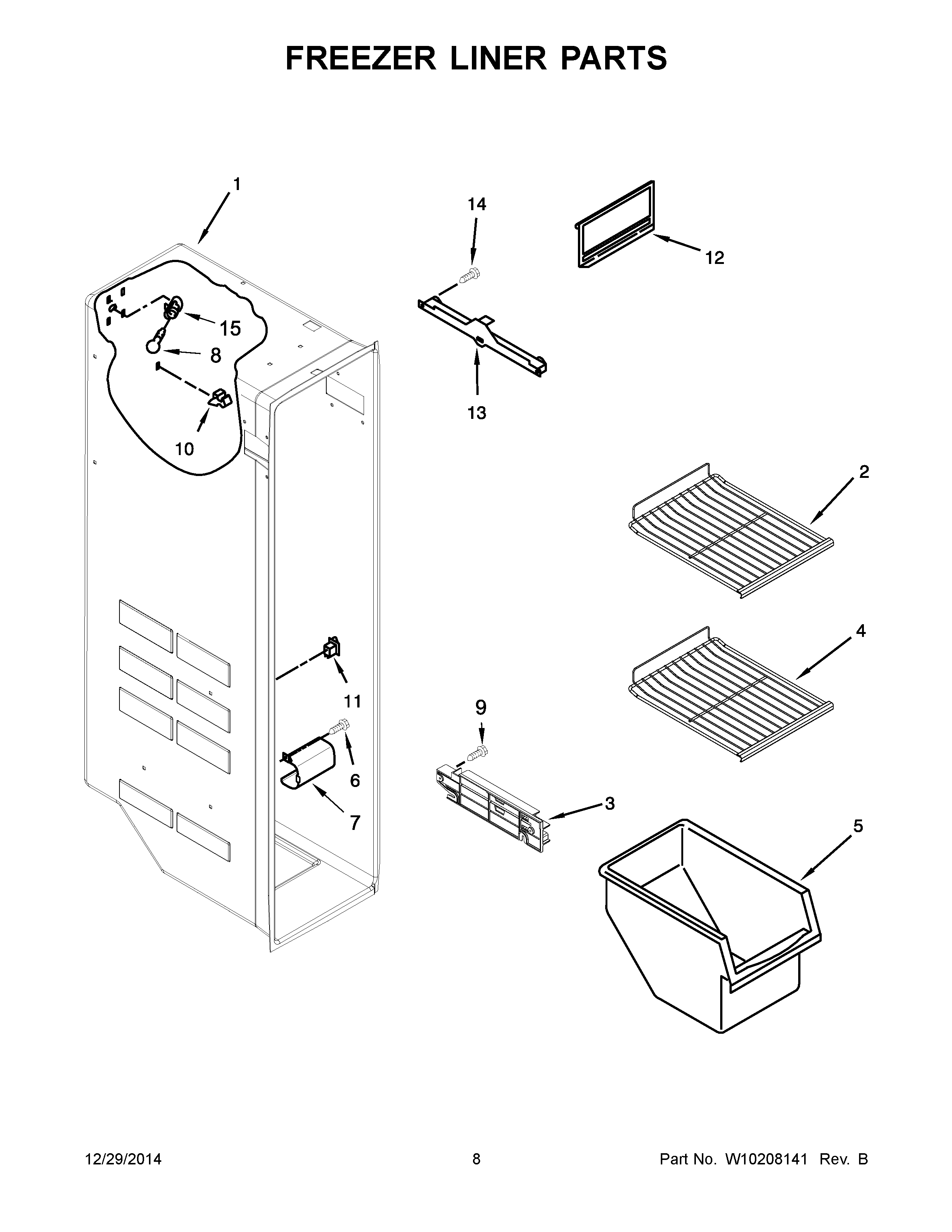

ASD2526VES00 05 – FREEZER LINER PARTS

ASD2526VES00 05 – FREEZER LINER PARTS

Written by

in

ASD2526VES00 05 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 2171714K
3	Slide, Basket (Left Side)
3A	Slide, Basket (Right Side)
4	MAY 2174268K
5	MAY 2182971
6	MAY 3400893
7	MAY 2171705
8	MAY 2255743
9	MAY W10004810
10	Clip, Air Duct (2)
11	Switch, Rocker Arm
12	MAY 2171713K
13	Slide, Container (Left Side)
13A	Slide, Container (Right Side)
14	MAY 489478
15	Socket, Light
