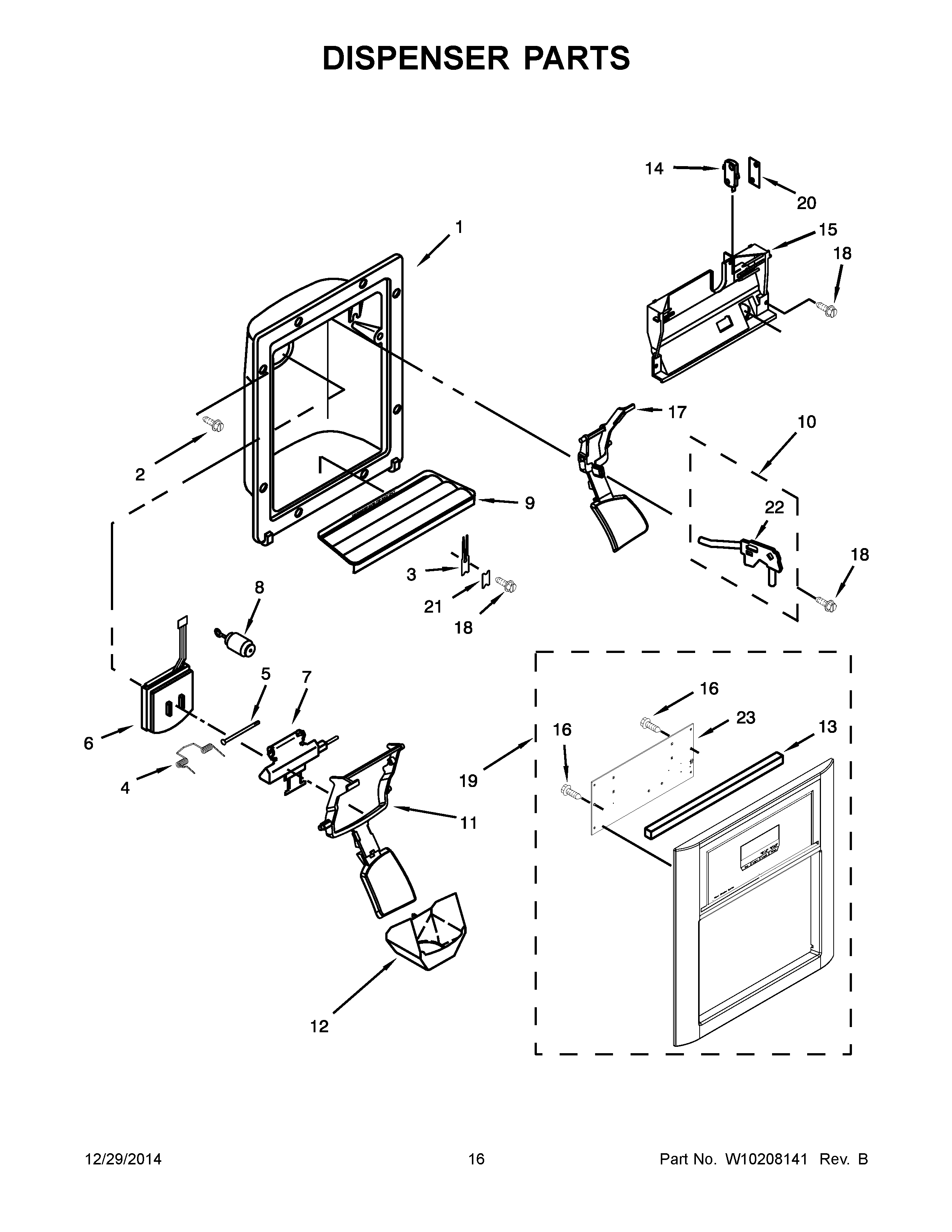

ASD2526VES00 09 – DISPENSER PARTS

ASD2526VES00 09 – DISPENSER PARTS

Written by

in

ASD2526VES00 09 – DISPENSER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Screw
3MAY 2194719
4MAY 2304772
5MAY 2196195
6MAY 2180353
7MAY 2304355
8MAY 2205686
9Grille, Overflow (Black)
10MAY 2304317
11Lever, Ice Dispenser (Black)
12MAY 2180224
13MAY 2305571
14Switch (4)
15MAY W10167536
16Screw (2)
17Lever, Water Dispenser (Black)
18MAY 489000
19MAY W10139882
20MAY 625834
21MAY 2195051
22MAY 2304673
23MAY W10170979
