ASD2526VES00 11 – CONTROL BOX PARTS – Aparts

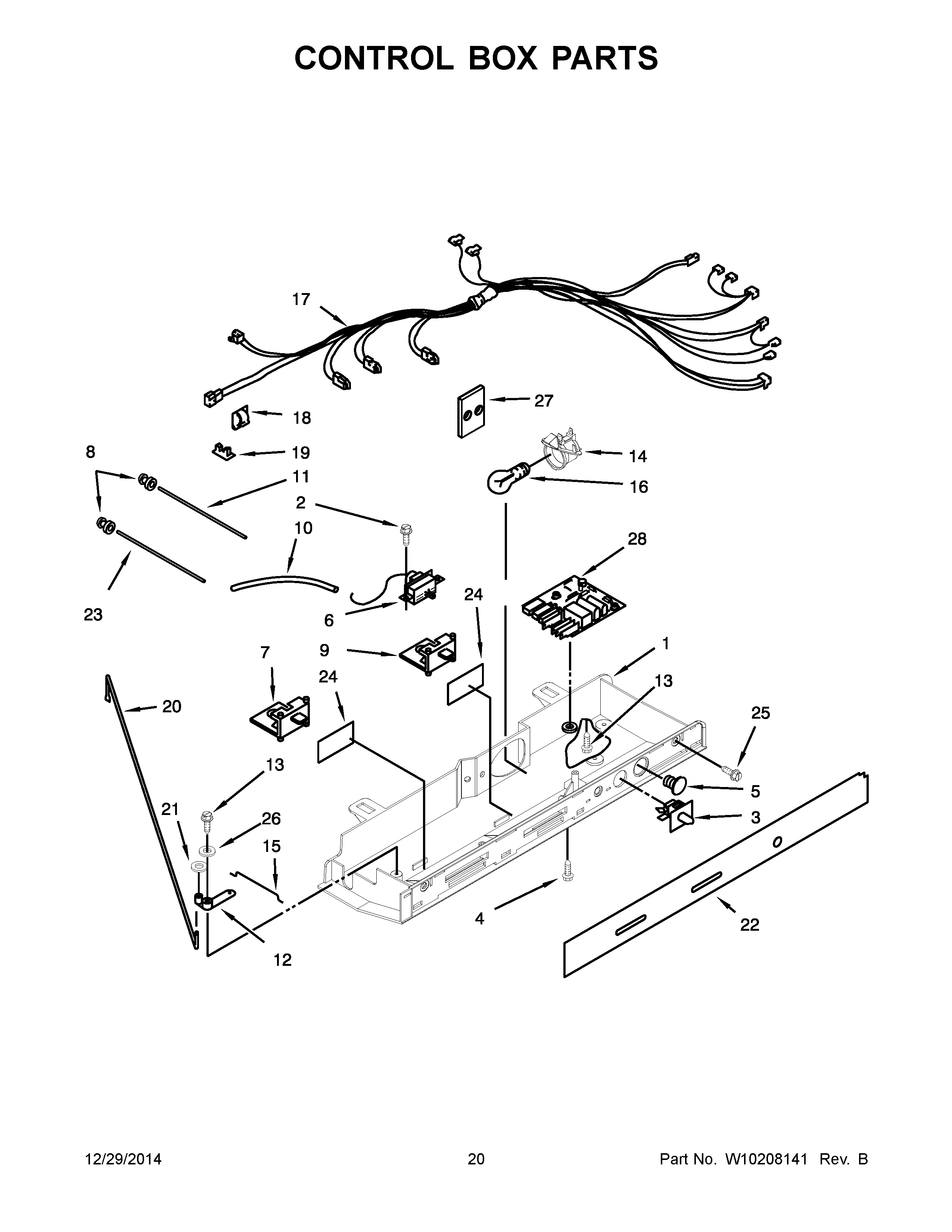

ASD2526VES00 11 – CONTROL BOX PARTS

Products

Position	Product
1	MAY 2181738
2	Screw (2)
3	MAY 2149705
4	Screw
5	MAY 940014
6	Thermostat
7	MAY 2181741
8	Grommet, Light Bar (4)
9	MAY 2161466
10	TUBE-BARRIER, THERMOSTAT
11	MAY 2179920
12	Pivot Arm
13	MAY 627068
14	Socket, Light
15	CONNECTING ROD, SHORT
16	MAY 2255743
17	MAY 2187868
18	MAY 1115374
19	Clip-Wiring
20	Connecting Rod
21	Fastner, Push-On
22	MAY W10176424
23	LIGHT BAR FC
24	MAY 2175513
25	MAY 489084
26	Spring Washer
27	MAY 2172931
28	Control Board Assembly
