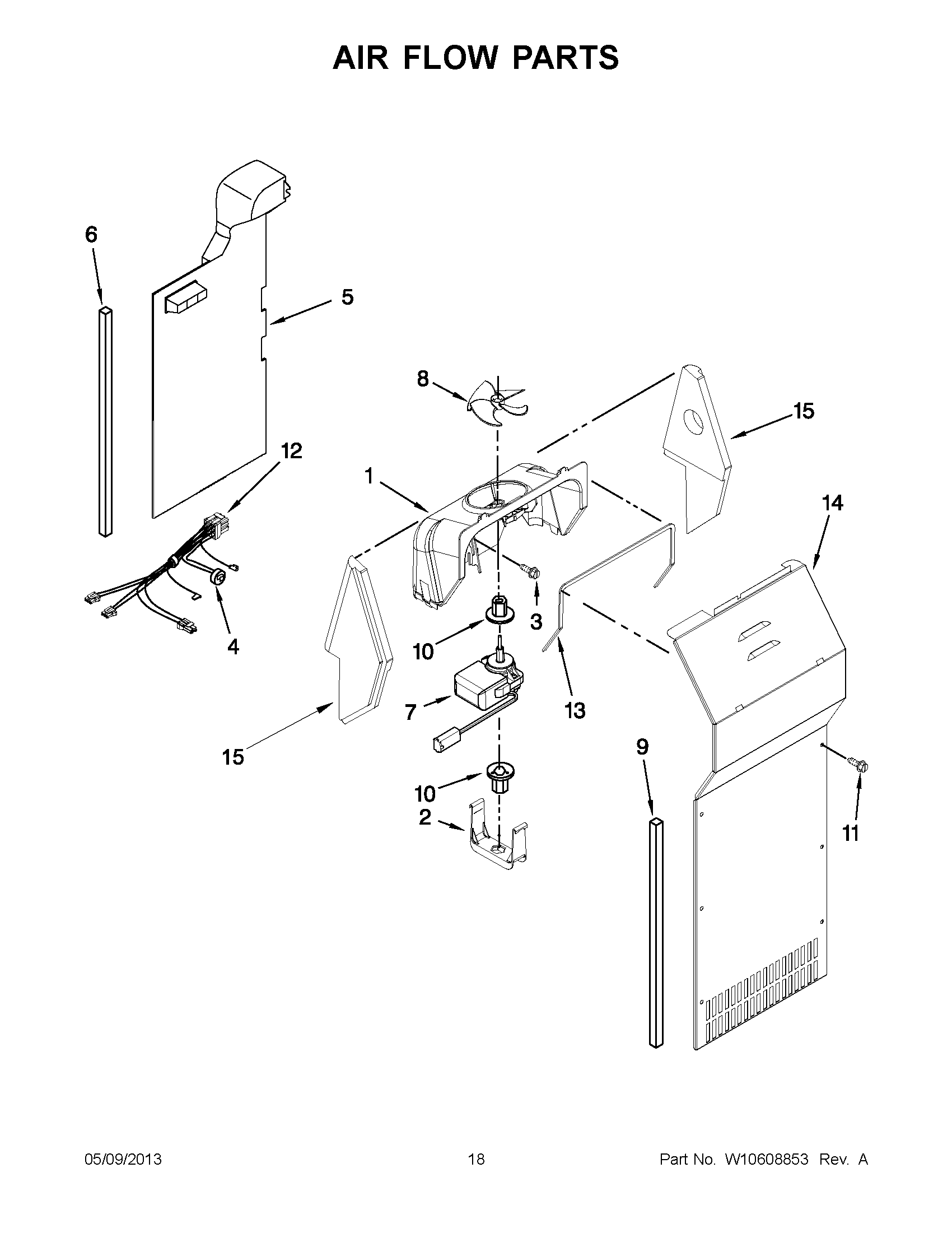

ASD2575BRB01 09 – AIR FLOW PARTS

Written by

Products

Position	Product
1	Fan Scroll
2	MAY 2155590
3	MAY 489478
4	MAY W10225581
5	AIR DUCT FREEZER
6	GASKET
7	MAY W10312647
8	Blade, Fan (Evaporator)
9	Gasket
10	GROMMET, MOTOR
11	MAY 8281159
12	HARNESS, FAN EVAPORATOR (INCLUDES No.4)
13	Gasket, Fan Scroll
14	MAY W10463013
15	SUPPORT, FAN SCROLL (LEFT HAND)
15	SUPPORT, FAN SCROLL (RIGHT HAND)
