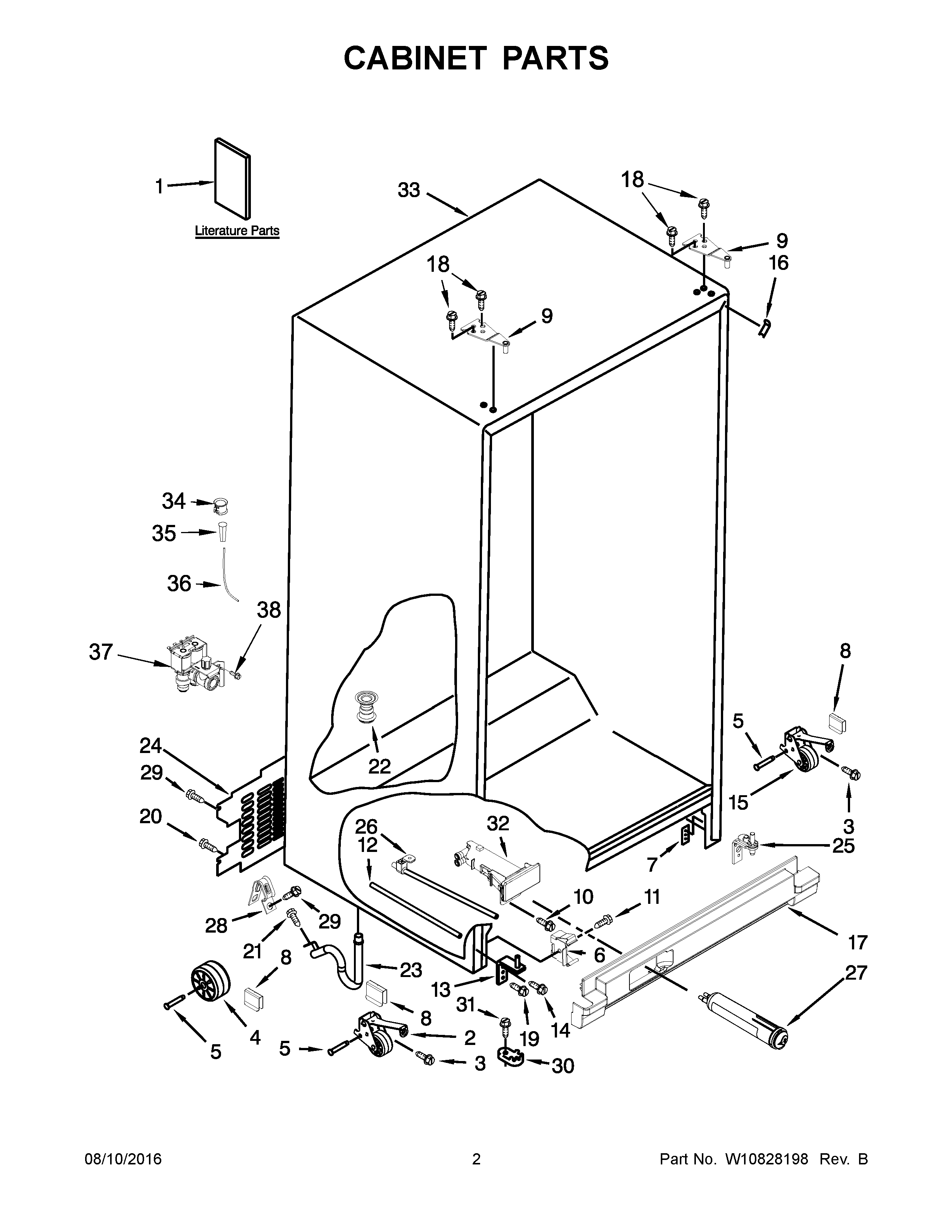

ASD2575BRB03 02 – CABINET PARTS

Products

Position	Product
1	MAY W10452514
1B	MAY W10725063
1A	MAY W10568358
2	ROLLER, FRONT (LEFT)
3	MAY 2152958
4	MAY W10475495
5	AXLE, ROLLER
6	MAY 2155013
7	MAY 2304249
8	MAY W10876799
9	HINGE, TOP (BLACK)
10	MAY 489500
11	MAY 488500
12	MAY W10350006
13	MAY W10414753
14	Screw (4)
15	ROLLER, FRONT (RIGHT)
16	CORNER FILLER (BLACK)
17	MAY W10348651
18	SCREW (BLACK)
19	MAY 3400103
20	SCREW
21	Screw (3)
22	MAY 2304888
23	MAY W10153550
24	MAY 2188739
25	MAY W10714071
26	MAY W10350007
27	MAY W10569758
28	MAY 549193
29	MAY 489084
30	MAY W10846218
31	MAY W10142234
32	MAY W10350063
33	LINER (NOT A SERVICEABLE PART)
34	MAY W10357076
35	CLAMP, TUBE
36	MAY 2181939
37	MAY W10179146
38	MAY 488649
