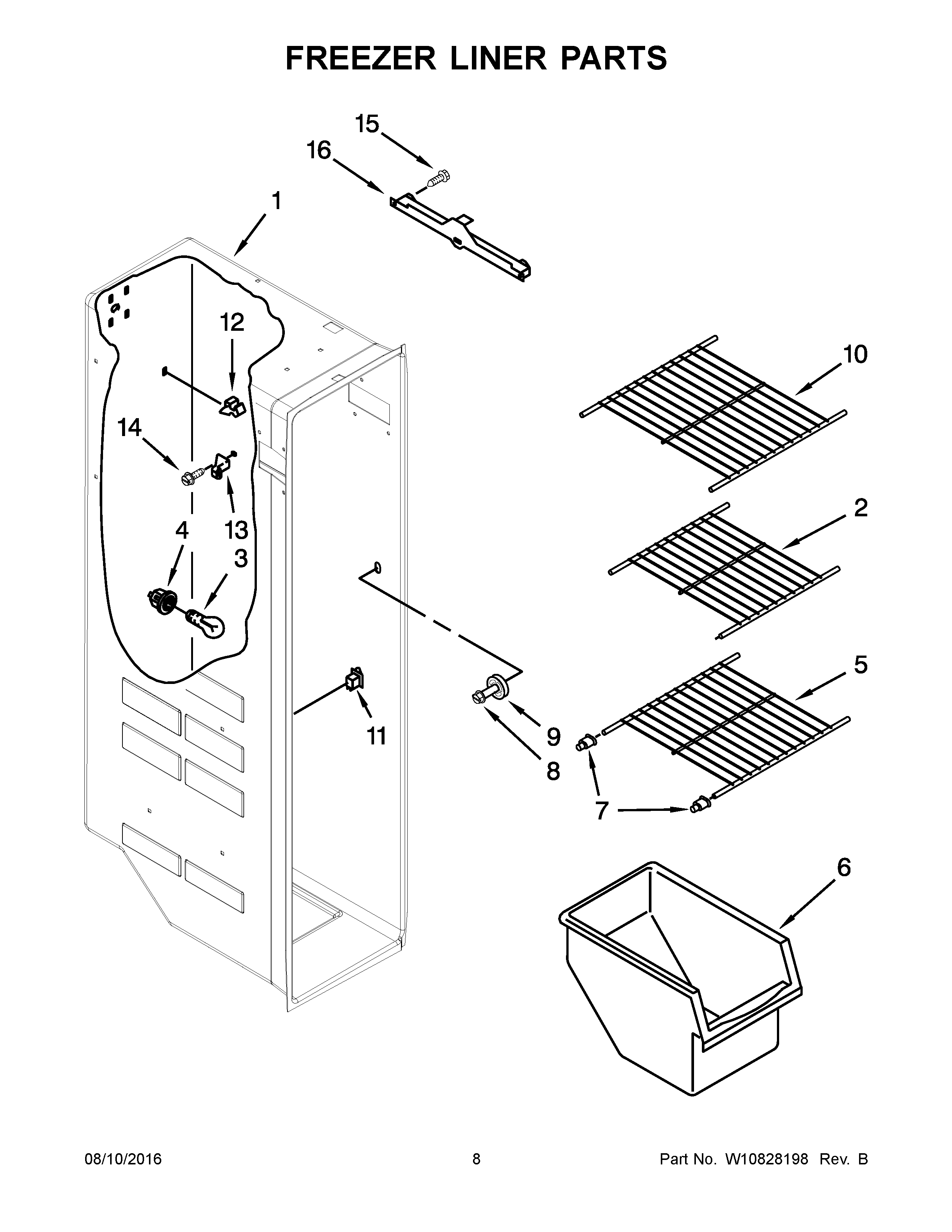

ASD2575BRB03 05 – FREEZER LINER PARTS

ASD2575BRB03 05 – FREEZER LINER PARTS

Written by

in

ASD2575BRB03 05 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY W10318961
3	BULB, LIGHT
4	Socket, Light
5	MAY W10318947
6	Freezer Bin
7	Cup, Shelf Mount
8	MAY W10191952
9	ASSEMBLY, SHELF STUD
10	MAY W10318948
11	Switch, Rocker Arm
12	MAY 2315163
13	Support, Stud (4)
14	MAY 3400893
15	MAY 489100
16	Slide, Container (Left Side)
16A	Slide, Container (Right Side)
