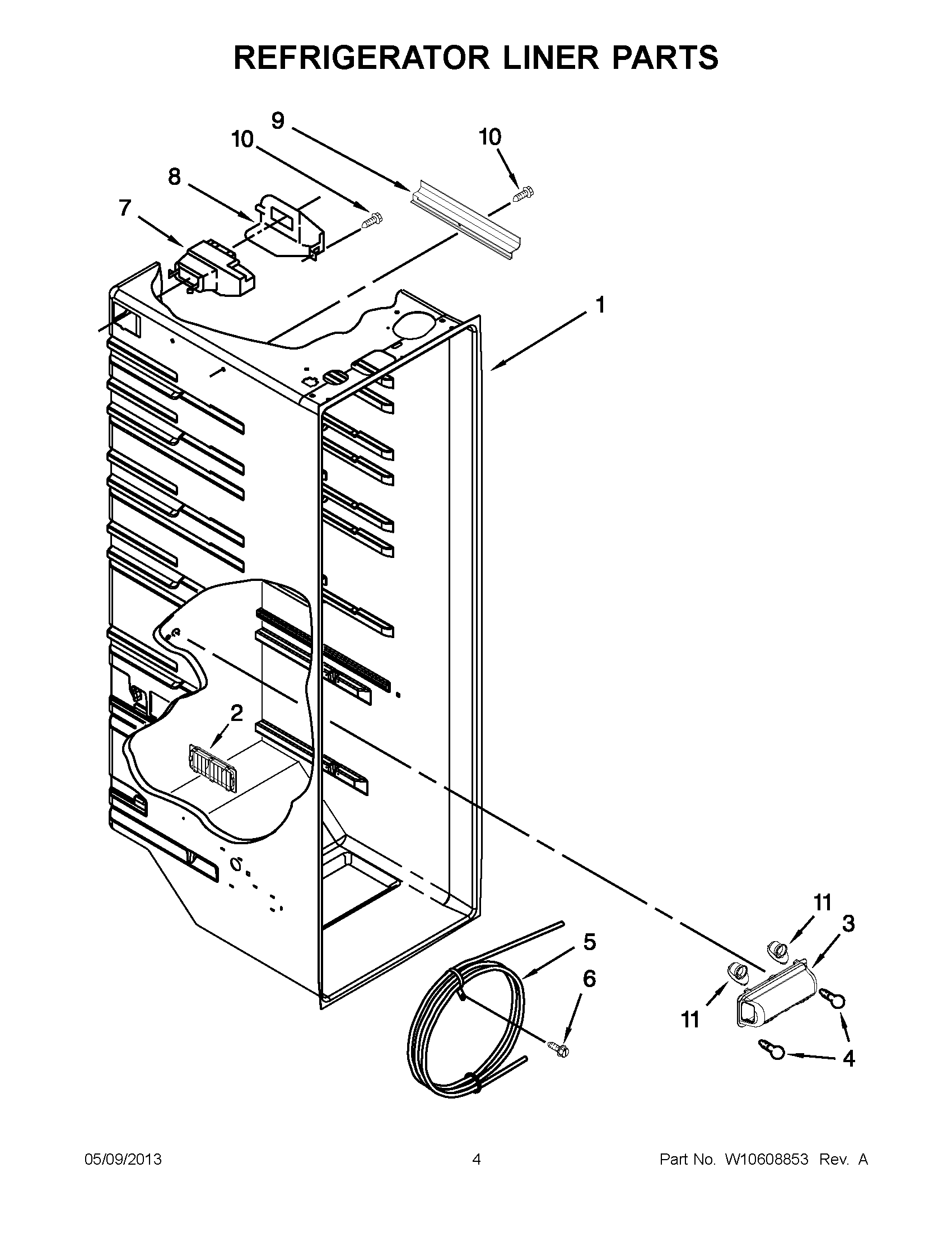

ASD2575BRS01 02 – REFRIGERATOR LINER PARTS
Written by
in
ASD2575BRS01 02 – REFRIGERATOR LINER PARTS
Products
Position
Product
1
LINER (NOT A SERVICEABLE PART)
2
MAY W10550195
3
Lens, Light
4
MAY 527949
5
RESERVOIR
6
Screw
7
MAY W10151374
8
Air Diffuser Cover
9
COVER, WIRING
10
MAY 486298
11
Socket, Light
←
