ASD2575BRS01 10 – CONTROL BOX PARTS – Aparts

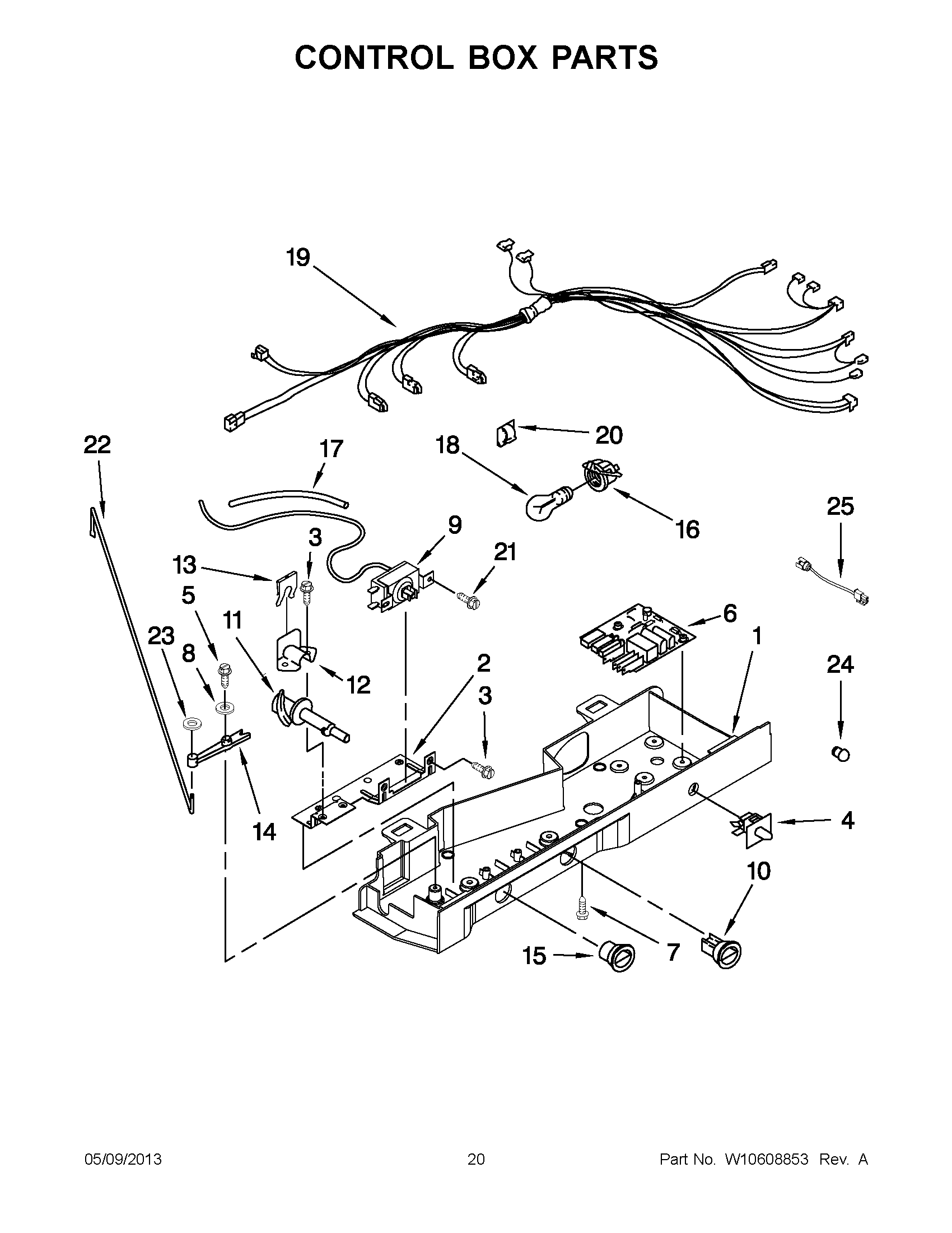

ASD2575BRS01 10 – CONTROL BOX PARTS

Products

Position	Product
1	MAY W10482525
2	MAY 2311611
3	Screw
4	SWITCH, LIGHT
5	MAY 627068
6	MAY W10366605
7	Screw
8	Spring Washer
9	MAY W10396166
10	KNOB, THERMOSTAT
11	MAY 2182195
12	MAY 1110560
13	Damper Control
14	MAY 1110559
15	KNOB, CONTROL
16	Socket, Light
17	TUBE-BARRIER, THERMOSTAT
18	MAY 527949
19	MAY W10354806
20	MAY 1115374
21	Screw
22	MAY 2311631
23	MAY 489285
24	LENS, LIGHT
25	LED LIGHT ASSEMBLY
