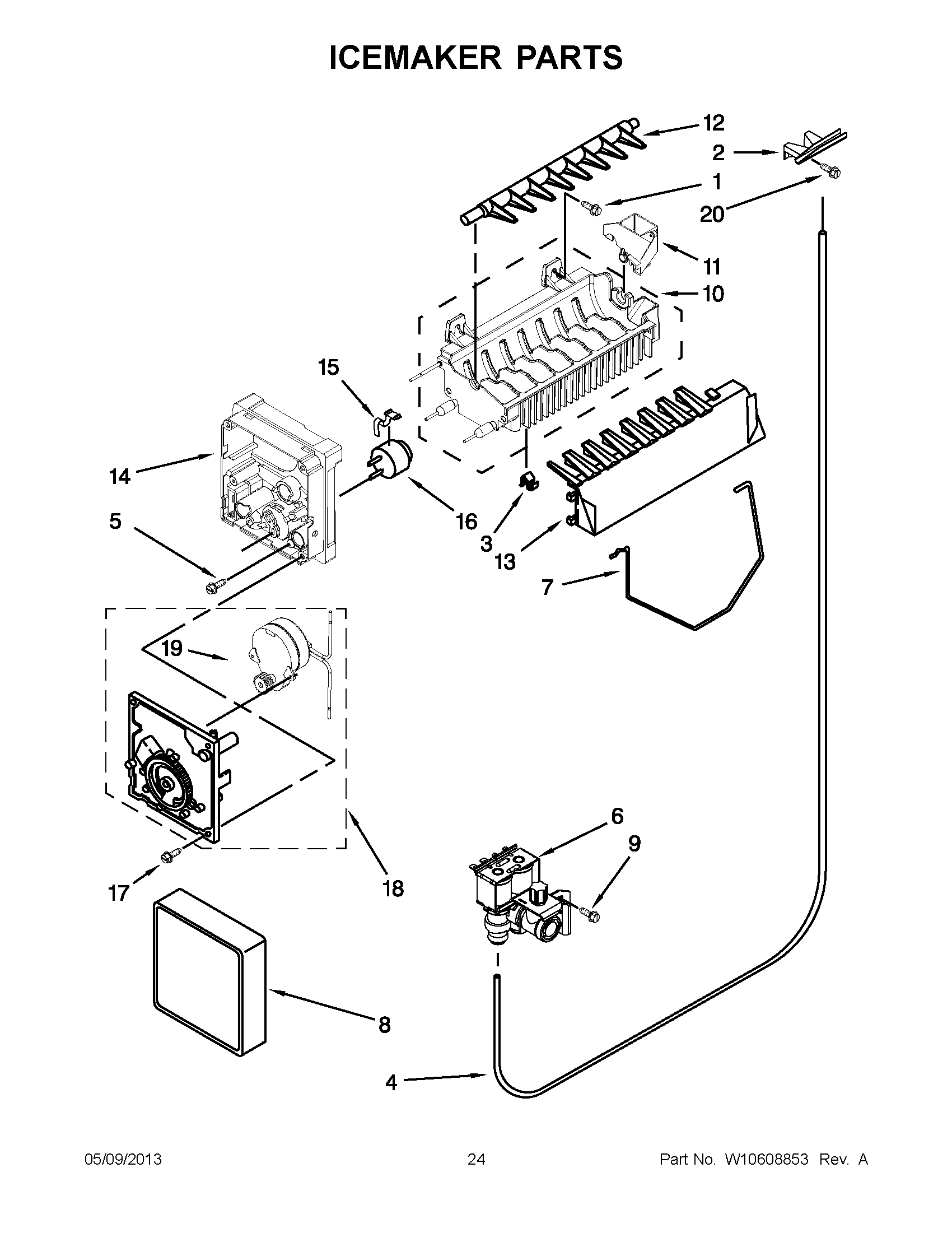

ASD2575BRS01 12 – ICEMAKER PARTS

Products

Position	Product
1	Screw
2	MAY 2209774
3	Clip
4	MAY W10490809
5	Screw (2)
6	MAY W10179146
7	MAY 2304354
8	COVER
9	MAY 488649
10	ASSEMBLY, MOLD AND HEATER
11	MAY W10435665
12	MAY W10318914
13	ICE STRIPPER
14	Support & Motor Assembly
15	MAY 2315522
16	Thermostat (Also Order 542369 Cement)
17	Screw (3)
18	Module Assembly (Includes Items 23 and 24)
19	LINER (NOT A SERVICEABLE PART)
20	MAY 489084
100	MAY W10300022
