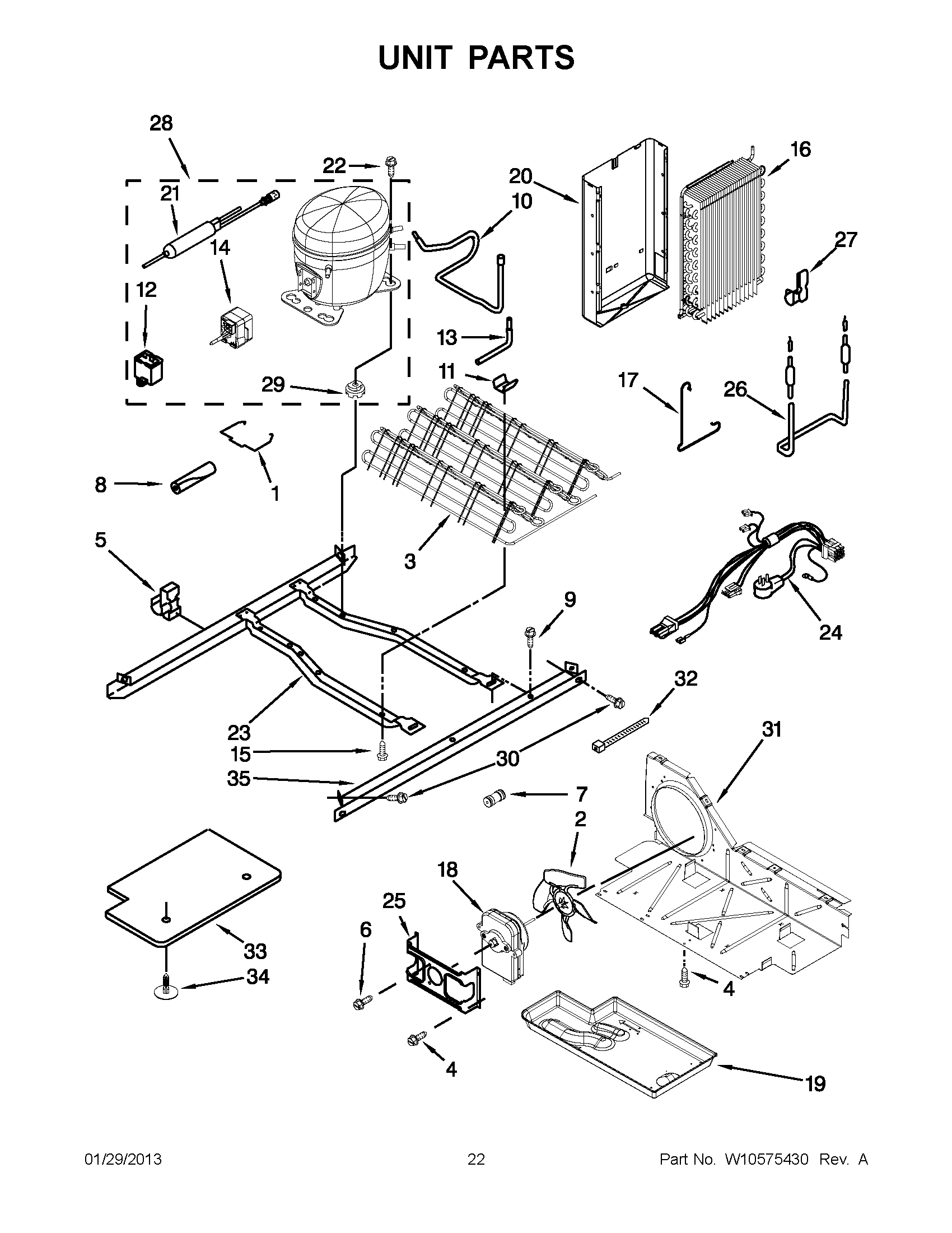

ASD2575BRW00 11 – UNIT PARTSadmin2025-04-26T08:55:55+00:00ASD2575BRW00 11 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | MAY 876764 |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | Valve, Access (3/4``) |
| NI | Valve, Access (5/8``) |
| NI | Valve, Access (1/2``) |
| NI | VALVE, ACCESS (3/8``) |
| NI | Valve, Access (5/16``) |
| NI | VALVE, ACCESS (1/4``) |
| 1 | Clip, Retaining |
| 2 | Fan, Blade |
| 3 | MAY 2324712 |
| 4 | Screw (3) |
| 5 | MAY 2326941 |
| 6 | MAY 8533993 |
| 7 | CONNECTOR, UNION |
| 8 | Sleeve, Pressure Switch Hose |
| 9 | MAY 489427 |
| 10 | MAY 2205765 |
| 11 | MAY 2311725 |
| 12 | Capacitator (Production) |
| 13 | MAY 2325479 |
| 14 | START PROTECT, COMBO (START DEVICE, COMBINATION (START RELAY AND OVERLOAD) FOR SERVICE COMPRESSOR ONLY) |
| 15 | MAY 8281232 |
| 16 | Evaporator |
| 18 | MOTOR, CONDENSOR |
| 19 | MAY 1105523 |
| 20 | Heat Shield |
| 21 | Drier |
| 22 | MAY W10476309 |
| 23 | Unit Mounting Frame |
| 24 | MAY W10417916 |
| 25 | MAY 2181929 |
| 26 | MAY 2188175 |
| 27 | Clip |
| 28 | COMPRESSOR (INCLUDES ITEMS 15, 29 & 30) (ALSO ORDER 482801 INSTALLATION KIT & 876765 TUBE KIT) |
| 29 | GROMMET |
| 30 | MAY 489340 |
| 31 | MAY W10332806 |
| 32 | MAY 2263990 |
| 33 | MAY W10466694 |
| 34 | MAY 489396 |
| 35 | Unit Mounting Rail |
