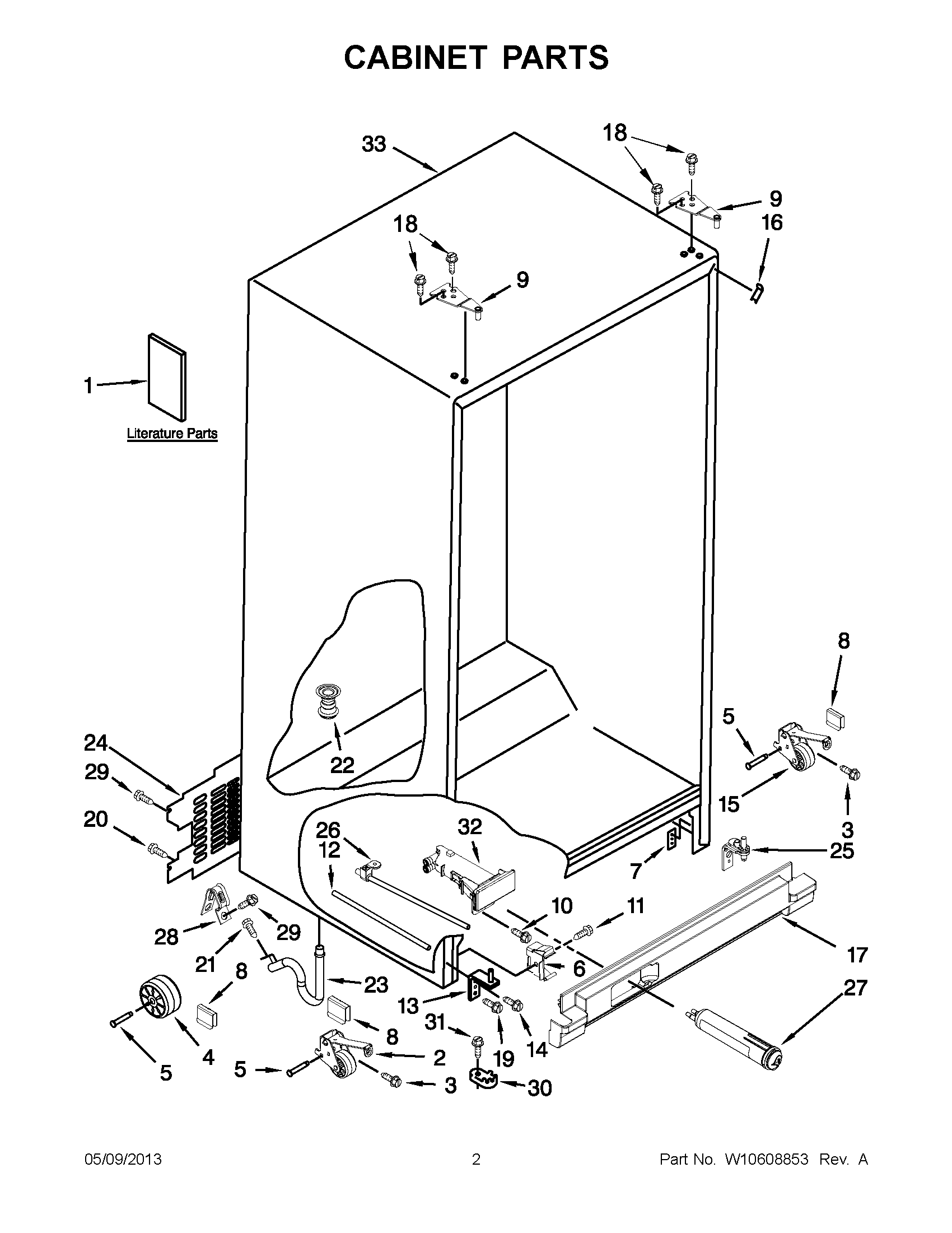

ASD2575BRW01 01 – CABINET PARTS

ASD2575BRW01 01 – CABINET PARTS

Written by

in

ASD2575BRW01 01 – CABINET PARTS

Products

Position	Product
1	MAY W10568358
1	MAY W10393023
1	MAY W10452514
2	ROLLER, FRONT (LEFT)
3	MAY 2152958
4	MAY W10475495
5	AXLE, ROLLER
6	MAY 2155013
7	MAY 2304249
8	CLIP, ROLLER
9	HINGE, TOP (BLACK)
9	HINGE, TOP (WHITE)
10	MAY 489500
11	MAY 488500
12	MAY W10350006
13	MAY W10414753
14	Screw (4)
15	ROLLER, FRONT (RIGHT)
16	CORNER FILLER (WHITE)
16	CORNER FILLER (BLACK)
17	MAY W10348651
17	MAY W10348650
18	SCREW (BLACK)
18	SCREW (WHITE)
19	MAY 3400103
20	SCREW
21	Screw (3)
22	MAY 2304888
23	MAY W10153550
24	MAY 2188735
25	MAY W10409481
26	MAY W10350007
27	MAY W10569758
28	MAY 549193
29	MAY 489084
30	CLOSER, FREEZER DOOR
31	MAY W10142234
32	MAY W10350063
32	MAY W10350062
33	LINER (NOT A SERVICEABLE PART)
