ASD2620HRZ 02 – COMPRESSOR SERIES 50+

ASD2620HRZ 02 – COMPRESSOR SERIES 50+

Written by

in

ASD2620HRZ 02 – COMPRESSOR SERIES 50+

Products

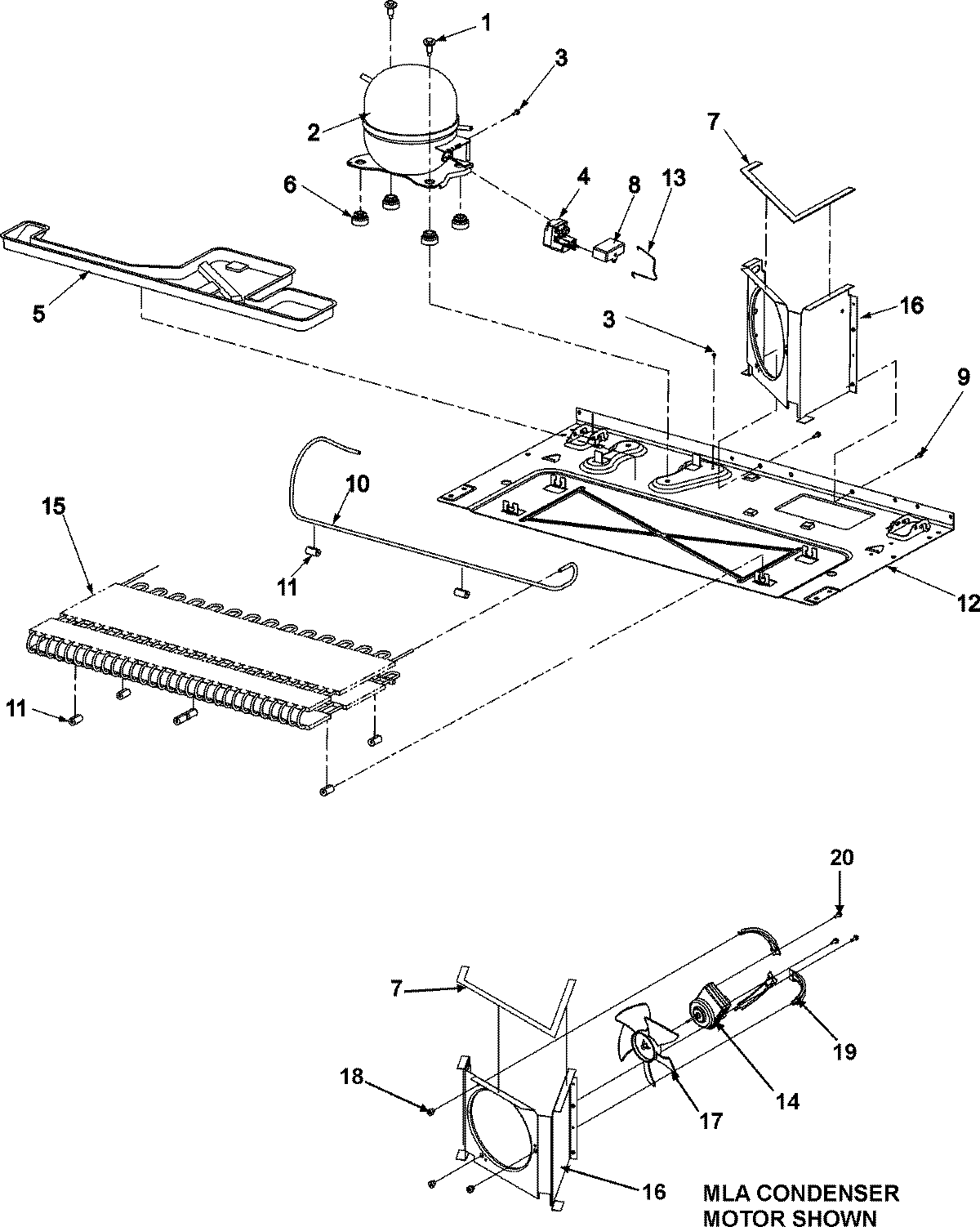

PositionProduct
NI67004955 Whirlpool Refrigerator MC Harness
1MAY M0221523
2W10160407 Whirlpool Refrigerator Compressor
3MAY M0231604
4OVERLOAD/RELAY W/CAPACITOR
5MAY 67004848
667003493 Whirlpool Refrigerator Compressor Grommet
7WP854334 Whirlpool Air Conditioner Sealing Strip
8Capacitor
9MAY M0238616
10MAY 67004700
1167005680 Whirlpool Refrigerator Condenser Grommet
12MAY 67005343
13MAY 12576801
14MAY 67004432
15WP67006131 Whirlpool Refrigerator Condenser
15MAY 67002235
16SHROUD, CONDENSER FAN
17W10156818 Whirlpool Refrigerator Fan Blade
18GROMMET, BRACKET
19MAY 67004953
20WP67004954 Whirlpool Refrigerator Screw
