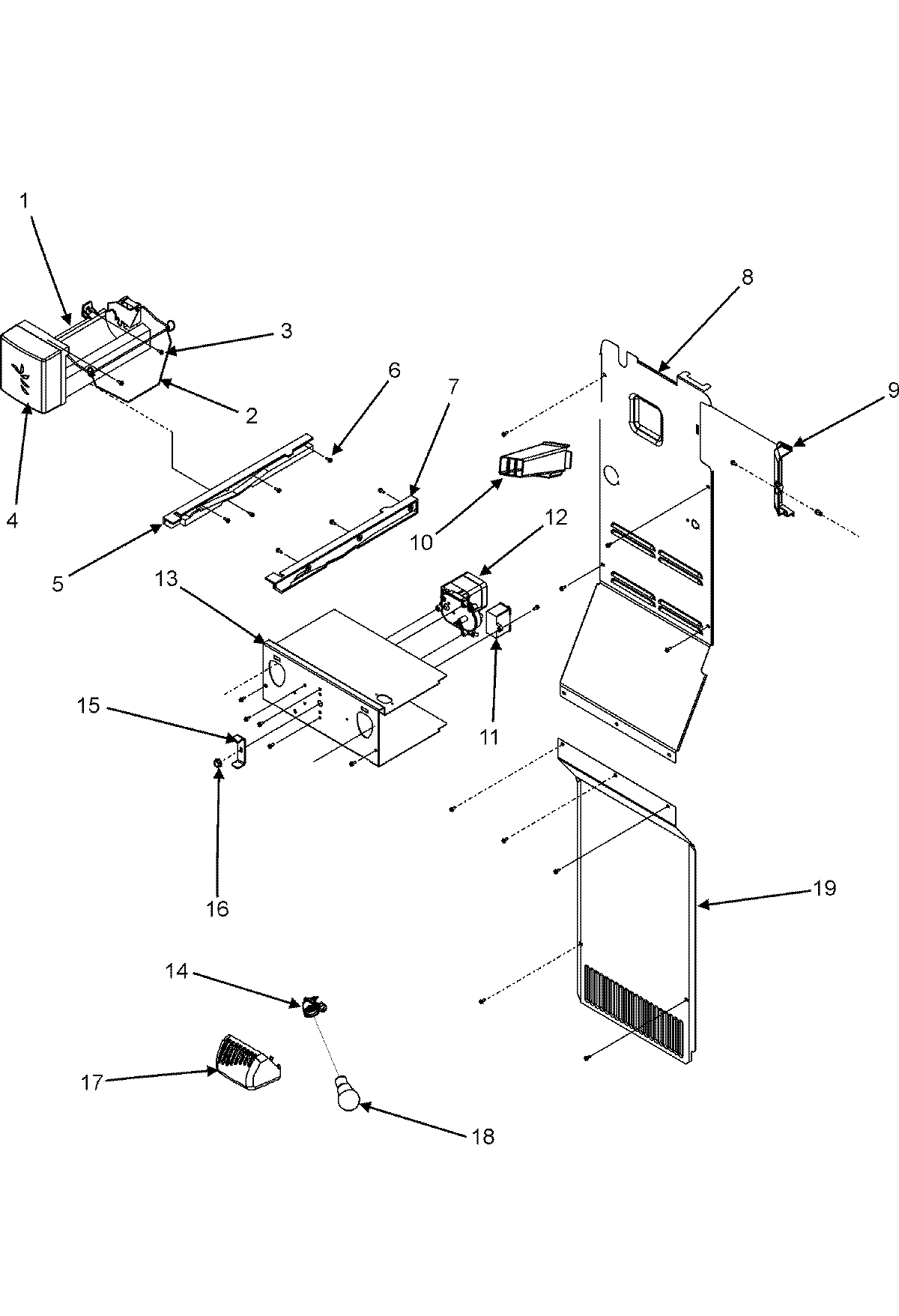

ASD2621KRB 15 – LIGHTS AND ICE MAKER

ASD2621KRB 15 – LIGHTS AND ICE MAKER

Written by

in

ASD2621KRB 15 – LIGHTS AND ICE MAKER

Products

PositionProduct
1D7824706Q Whirlpool Refrigerator Ice Maker Assembly
2MAY 12671401
3MAY M0211019
4Cover
567005375 Whirlpool Refrigerator Glide, Freezer (Left)
6MAY 67006529
7MAY 67004323
8MAY 67003577
9MAY M0580205
9MAY 12583101
10MAY 67003578
11CAPACITOR
12WP67003226 Whirlpool Motor Auger
12MAY 67006530
13MAY 67005214
14Socket, Light (2)
15MAY 10114901
16WPM0223101 Whirlpool Refrigerator Nut
17MAY 67004135
18Bulb, Light (2)
18WPW10146386 Whirlpool Refrigerator Wire Harness
19Screw (10)
19MAY 67004192
