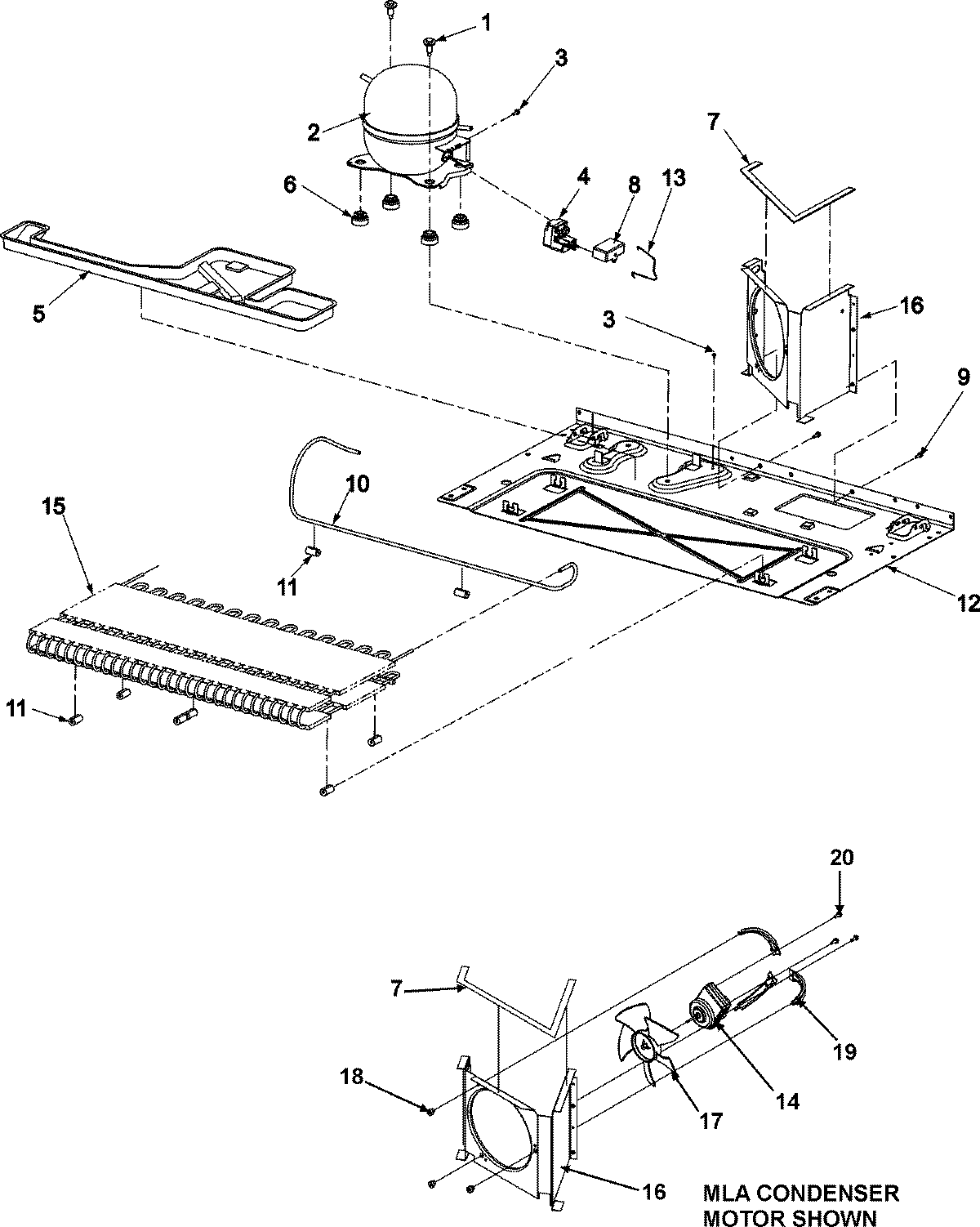

ASD2622HRW 04 – COMPRESSOR SERIES 50+

Products

Position	Product
1	MAY M0221523
2	W10160407 Whirlpool Refrigerator Compressor
2	MAY 67003084
3	MAY M0231604
4	W10613606 Whirlpool Refrigerator Start Device Relay Overload
5	MAY 67004848
6	67003493 Whirlpool Refrigerator Compressor Grommet
7	WP854334 Whirlpool Air Conditioner Sealing Strip
8	CAPACITOR
8	Capacitor
9	MAY M0238616
10	MAY 67004700
11	67005680 Whirlpool Refrigerator Condenser Grommet
12	MAY 67001512
12	MAY 67005343
13	MAY 12576801
14	MAY 67004432
14	833697 Whirlpool Condenser Fan Motor
15	WP67006131 Whirlpool Refrigerator Condenser
15	MAY 67002235
16	SHROUD, CONDENSER FAN
17	W10156818 Whirlpool Refrigerator Fan Blade
17	WP12587601 Whirlpool Refrigerator Condenser Blade
18	GROMMET, BRACKET
19	MAY 67004953
19	Bracket, Motor (3)
20	Screw (3)
21	67004955 Whirlpool Refrigerator MC Harness
21	MAY 67004324
