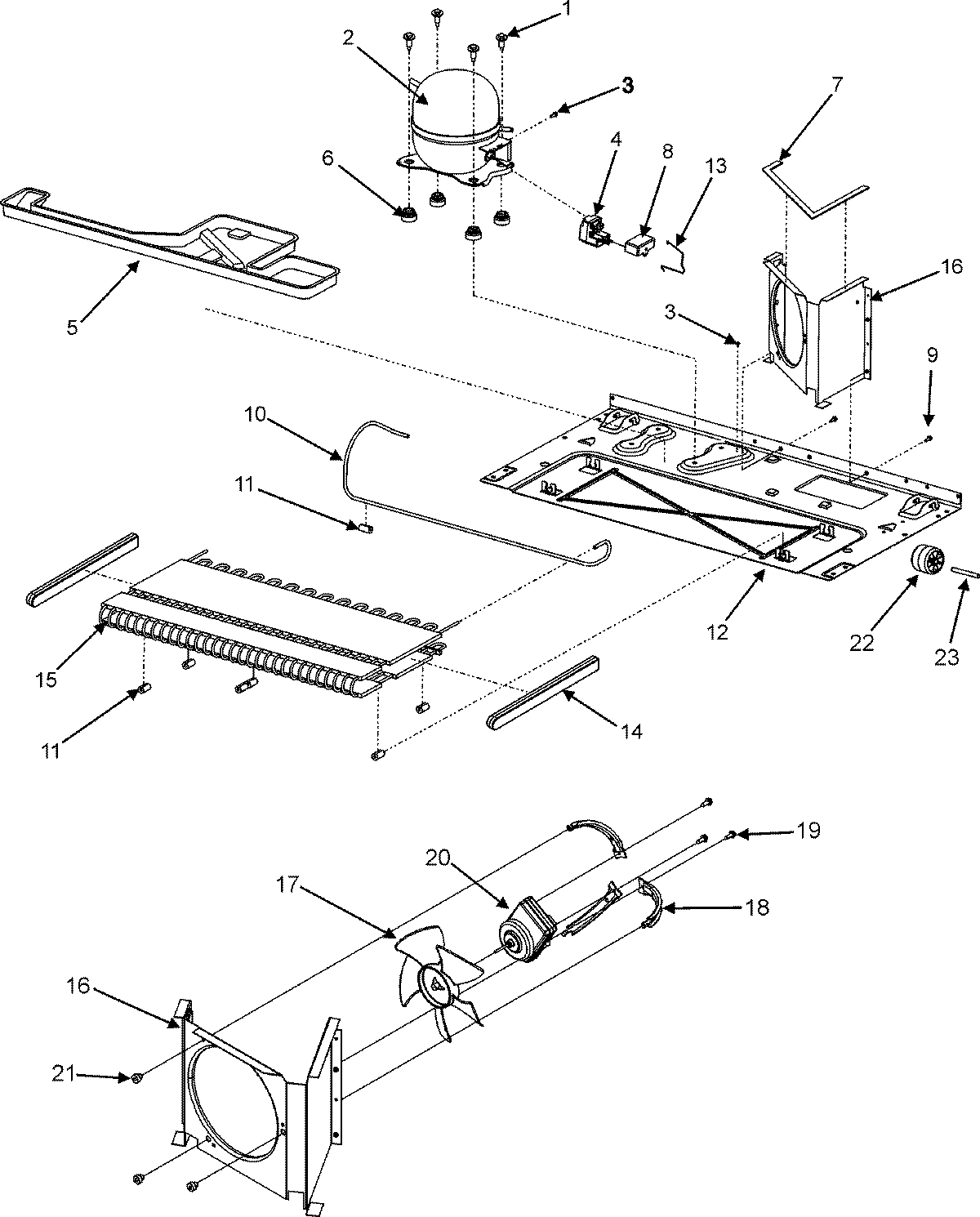

ASD2624HEB 05 – COMPRESSOR SERIES 53

Products

Position	Product
NI	67004955 Whirlpool Refrigerator MC Harness
1	MAY M0221523
2	W10160407 Whirlpool Refrigerator Compressor
3	MAY M0231604
4	OVERLOAD/RELAY W/CAPACITOR
5	MAY 67004848
6	67003493 Whirlpool Refrigerator Compressor Grommet
7	WP854334 Whirlpool Air Conditioner Sealing Strip
8	Capacitor
9	MAY M0238616
10	MAY 67004700
11	67005680 Whirlpool Refrigerator Condenser Grommet
12	MAY 67005343
13	MAY 12576801
14	MAY 67002235
15	WP67006131 Whirlpool Refrigerator Condenser
16	SHROUD, CONDENSER FAN
17	W10156818 Whirlpool Refrigerator Fan Blade
18	MAY 67004953
19	WP67004954 Whirlpool Refrigerator Screw
20	MAY 67004432
21	GROMMET, BRACKET
22	WP67005149 Whirlpool Roller
23	67006434 Whirlpool Axle Pin
