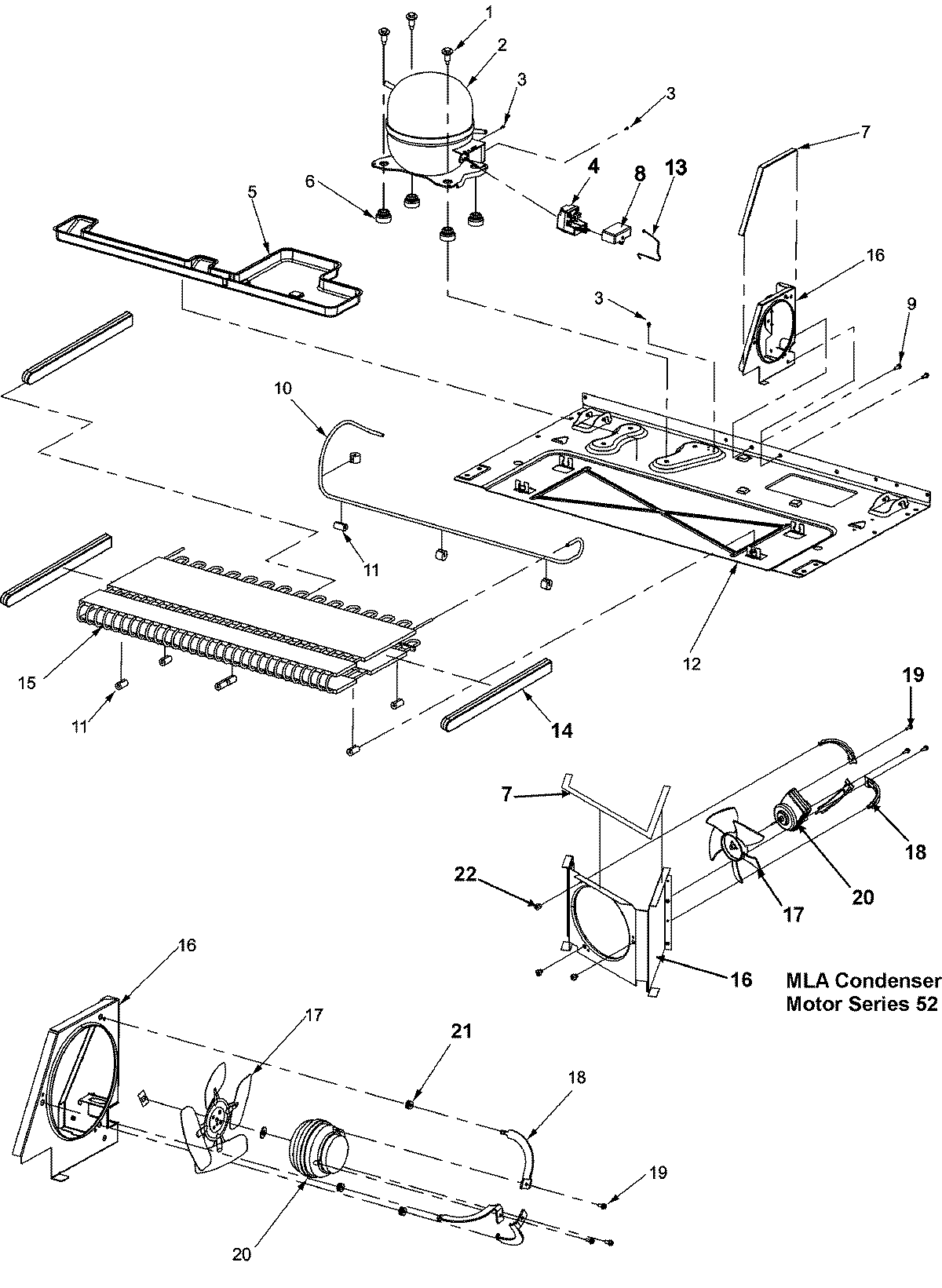

ASD2624HEQ 04 – COMPRESSOR SERIES 50+

Products

Position	Product
NI	MAY 67004324
1	MAY M0221523
2	MAY 67003084
2	W10160407 Whirlpool Refrigerator Compressor
3	MAY M0231604
4	W10613606 Whirlpool Refrigerator Start Device Relay Overload
5	MAY 67004848
6	67003493 Whirlpool Refrigerator Compressor Grommet
7	WP854334 Whirlpool Air Conditioner Sealing Strip
8	CAPACITOR
10	MAY 67004700
11	67005680 Whirlpool Refrigerator Condenser Grommet
12	MAY 67001512
12	MAY 67005343
13	MAY 12576801
15	MAY 67002235
15	WP67006131 Whirlpool Refrigerator Condenser
16	SHROUD, CONDENSER FAN
17	WP12587601 Whirlpool Refrigerator Condenser Blade
17	W10156818 Whirlpool Refrigerator Fan Blade
18	MAY 67004953
18	MAY 67003644
19	MAY M0238616
20	MAY 12628701
20	MAY 67004432
21	WP486692 Whirlpool Refrigerator Nut
22	GROMMET, BRACKET
23	67004955 Whirlpool Refrigerator MC Harness
