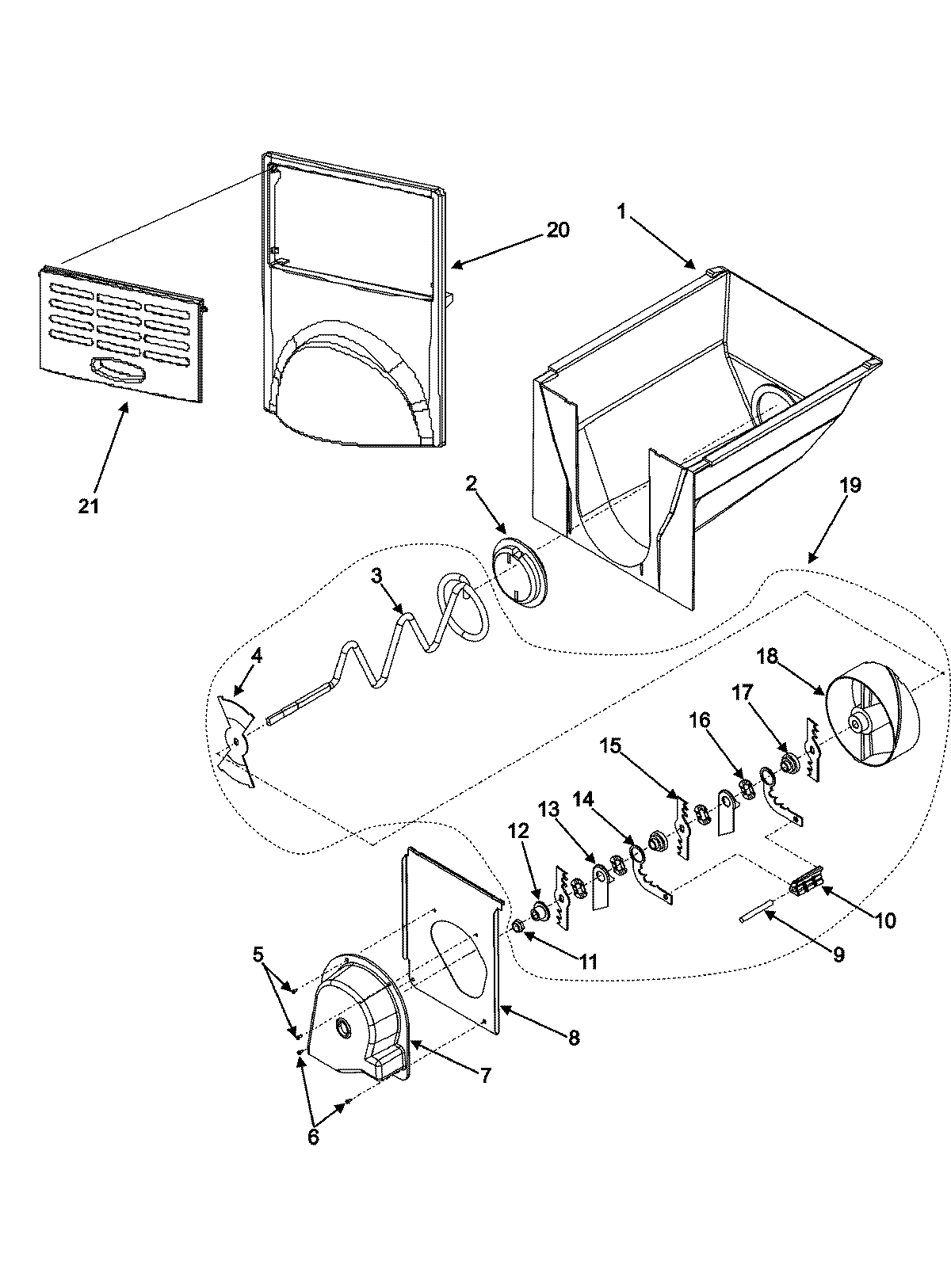

ASD2625KEQ 12 – ICE BUCKET ASSY

Products

Position	Product
1	WP67005959 Whirlpool Refrigerator Ice Bucket
2	MAY D7749401
3	MAY 10114401
4	MAY 10113801
5	Screw (10)
6	MAY M0238616
7	MAY 67002271
8	MAY 10115001
9	MAY M1200108
10	MAY 10114101
11	WPM0223101 Whirlpool Refrigerator Nut
12	MAY 10113901
13	MAY 10275201
14	MAY 10114601
15	MAY 10114501
16	MAY 10275101
17	WASHER STEPPED
18	WP67002052 Whirlpool Ice Crusher Blade
19	WP12740302 Whirlpool Refrigerator Crusher Mechanism
20	MAY 67004255
21	MAY 67004358
