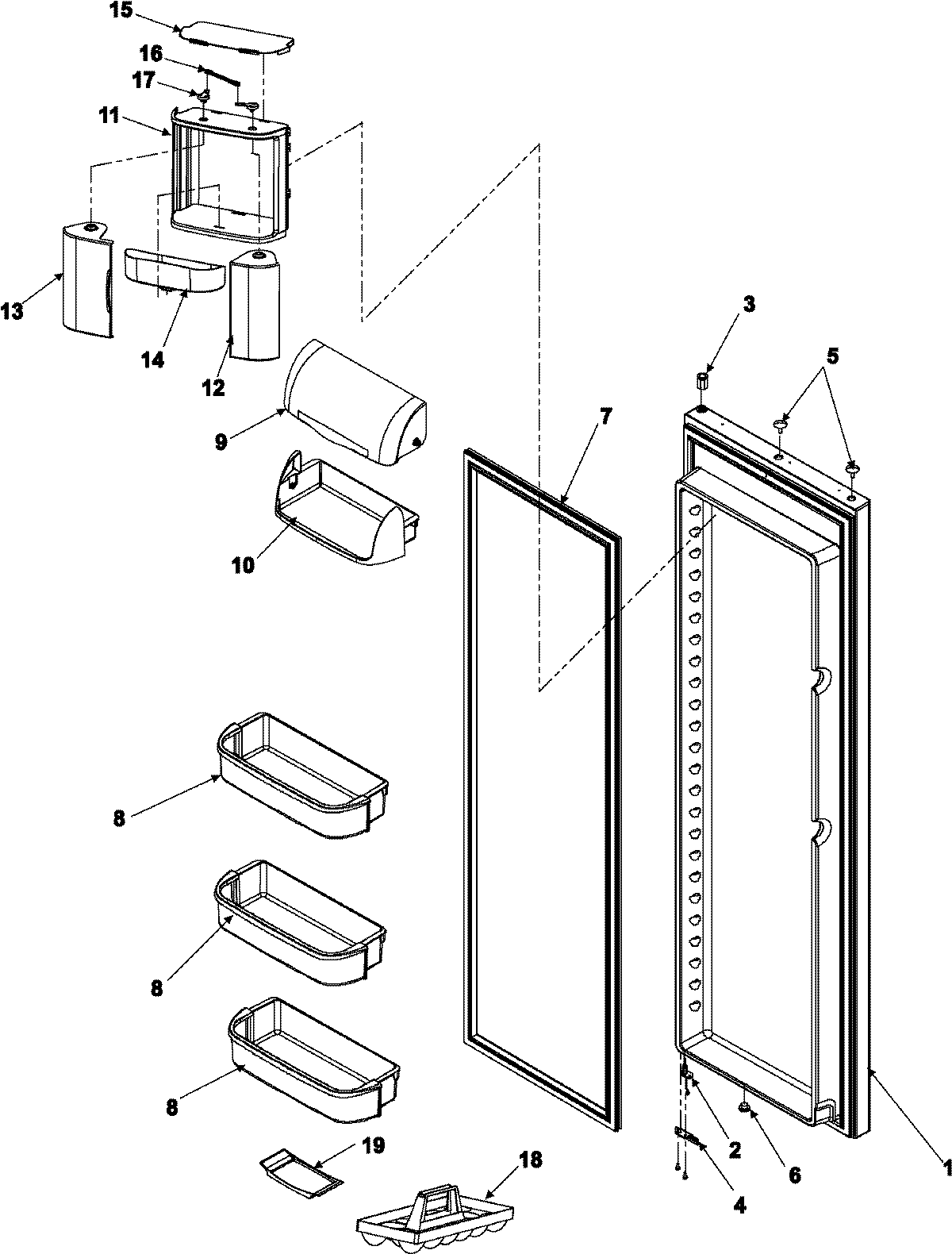

ASD2625KEQ 16 – REFRIGERATOR DOOR

ASD2625KEQ 16 – REFRIGERATOR DOOR

Written by

in

ASD2625KEQ 16 – REFRIGERATOR DOOR

Products

PositionProduct
1MAY 67006846
2SCREW
2CLOSURE, DOOR (BLK)
3MAY 67004976
4MAY 67004822
4MAY 67006926
5MAY M0311606
6MAY A3080001
7MAY 67003966
8MAY 67004110
9MAY 67002957
10MAY 67002304
11Frame, Chiller (Large)
12Door Chiller (RT) (Large)
13MAY 67004268
14Tray, Chiller (2)
15Cover, Chiller (2)
16Linkage, Center Chiller (2)
17Linkage, Chiller (4)
18MAY 67004411
19MAY 67004412
