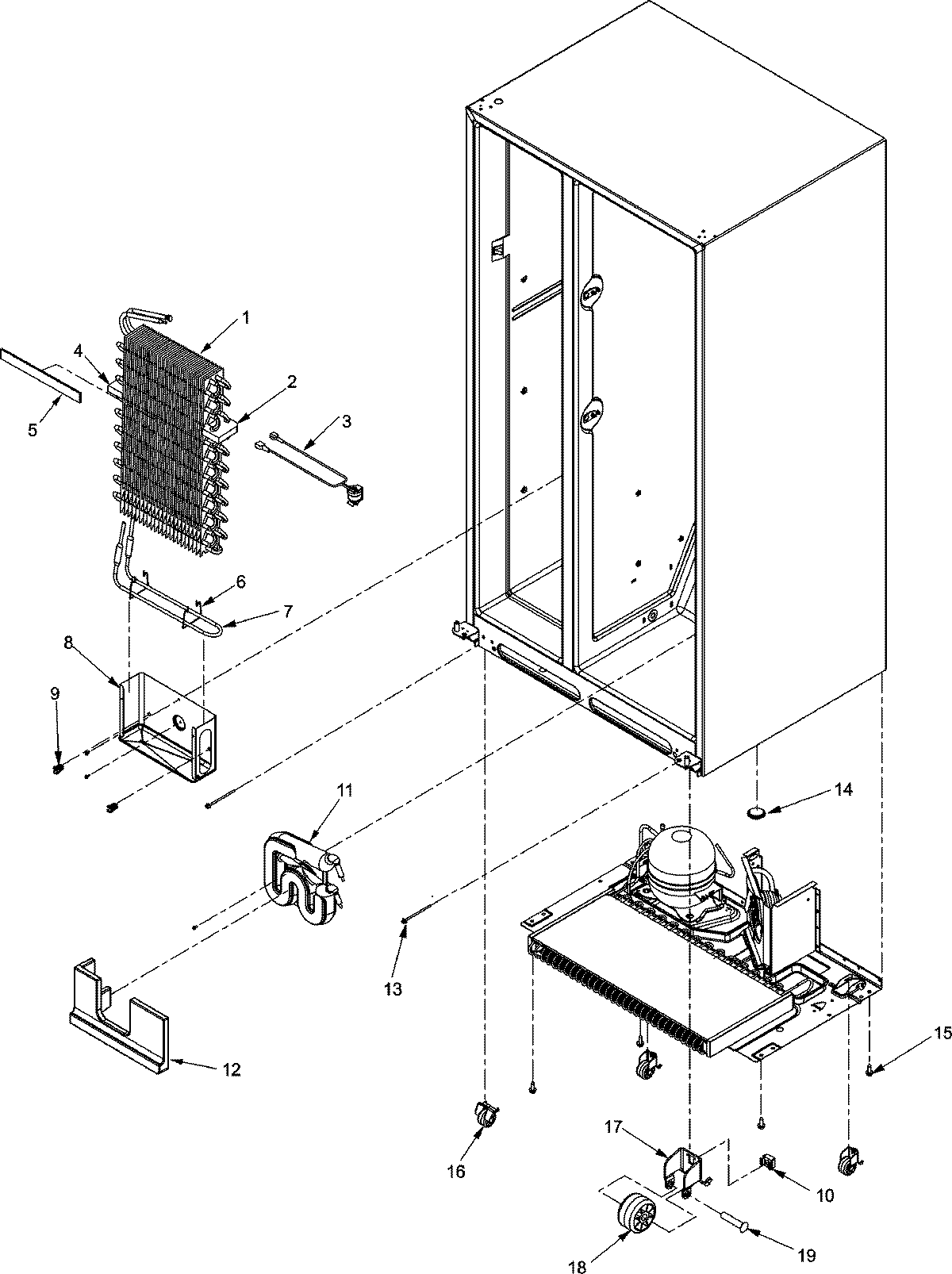

ASD2627KEB 07 – EVAPORATOR ASSY AND ROLLERS

ASD2627KEB 07 – EVAPORATOR ASSY AND ROLLERS

Written by

in

ASD2627KEB 07 – EVAPORATOR ASSY AND ROLLERS

Products

PositionProduct
NIMAY 67006622
2MAY 12590102
3WP67004757 Whirlpool Refrigerator Thermostat
4MAY 12590101
5MAY 67002226
6W11673433 Whirlpool Clip
7WP67004188 Whirlpool Heater Defrost Assembly
8MAY 67006838
8MAY 12558101WD
9MAY 10623003
10MAY M0286708
11WP98165 Whirlpool Screw
11MAY R0131625
12MAY 67004309
1371003131 Whirlpool Oven Screw
14A3076901 Whirlpool Refrigerator Plug
15Screw (4)
16ROLLER BRACKET ASSY
1712456801V Whirlpool Refrigerator Bracket
18WP10450603 Whirlpool Refrigerator Roller
19MAY M1205302
