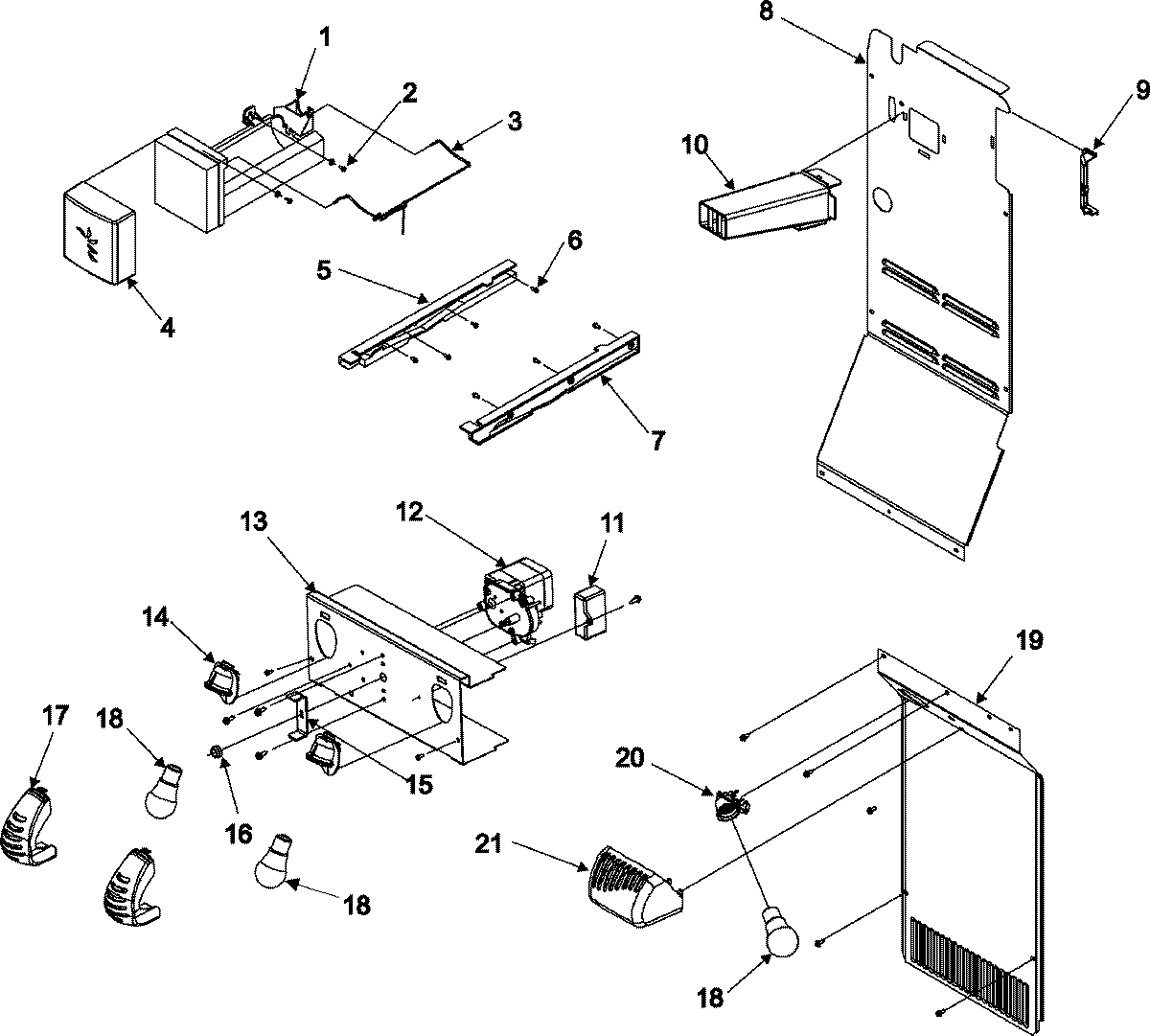

ASD2627KES 15 – LIGHTS AND ICE MAKER

Products

Position	Product
1	12002355 Whirlpool Refrigerator Thermistor Kit
1	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
2	MAY M0211019
3	MAY Y10901401
4	Cover
5	67005375 Whirlpool Refrigerator Glide, Freezer (Left)
6	MAY 67006529
7	MAY 67004323
8	MAY M0238616
8	MAY 67003577
9	MAY 12583101
9	MAY M0580205
10	MAY 67003578
11	CAPACITOR
12	WP67003226 Whirlpool Motor Auger
12	MAY 67006530
13	MAY 12561701
15	MAY 10114901
16	WPM0223101 Whirlpool Refrigerator Nut
17	MAY 67004433
18	RANGE ONLY 40W 120V APPL BULB
19	MAY 67004192
19	Screw (10)
20	Socket, Light (2)
21	MAY 67004135
