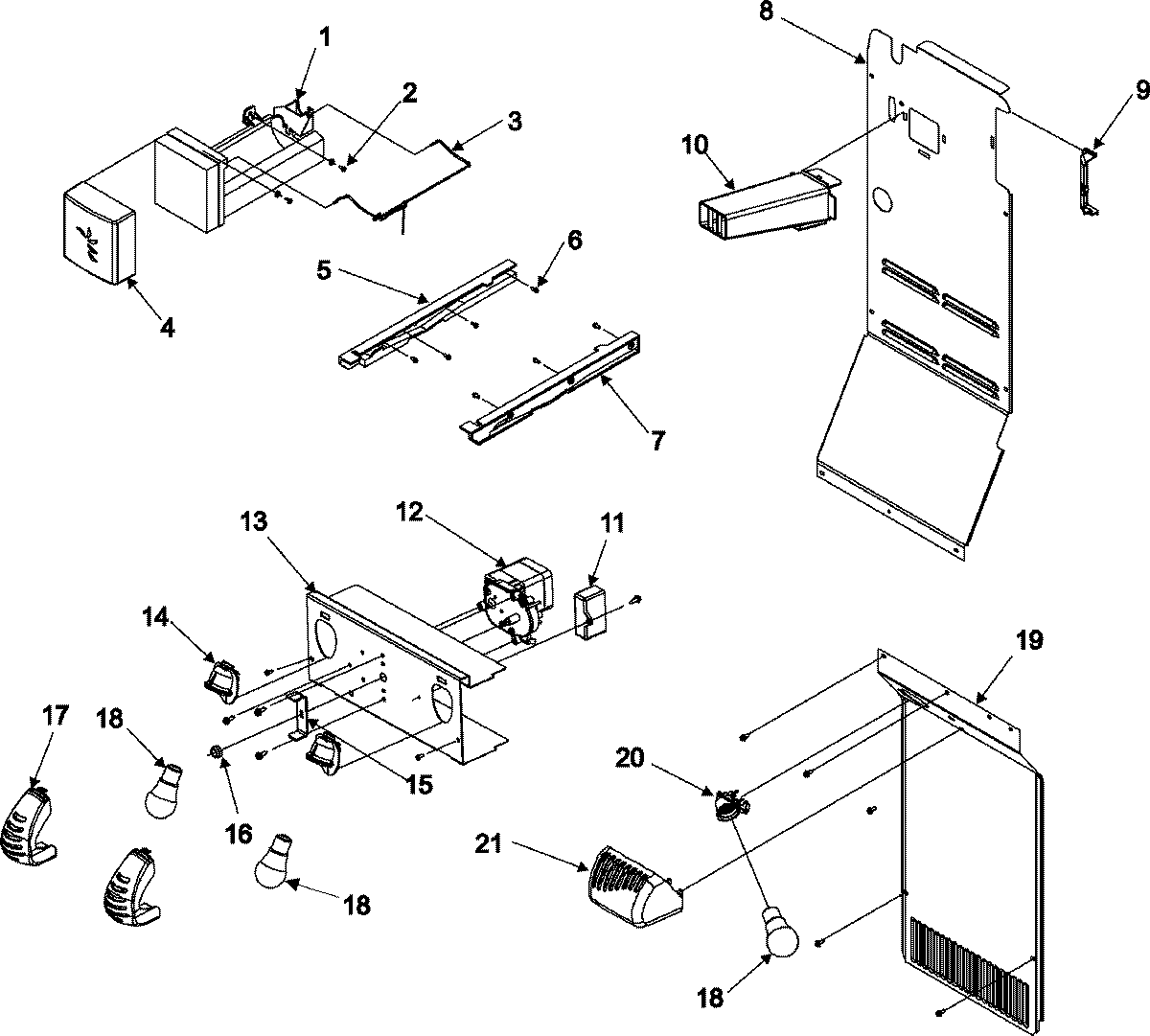

ASD2628HEQ 29 – LIGHTS AND ICE MAKER

Products

Position	Product
1	12002355 Whirlpool Refrigerator Thermistor Kit
1	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
2	MAY M0238833
3	MAY 12671401
4	Cover
5	67005375 Whirlpool Refrigerator Glide, Freezer (Left)
6	67006529 Whirlpool Refrigerator Screw
7	MAY 67004323
8	MAY 67003577
9	MAY 12583101
9	MAY M0580205
10	MAY 67003578
11	CAPACITOR
11	MAY M0226528
12	WP67003226 Whirlpool Motor Auger
13	MAY 67002887
15	MAY 10114901
16	WPM0223101 Whirlpool Refrigerator Nut
17	MAY 67003926
18	RANGE ONLY 40W 120V APPL BULB
19	MAY 67004192
19	MAY M0238616
20	Socket, Light (2)
21	MAY 67004135
