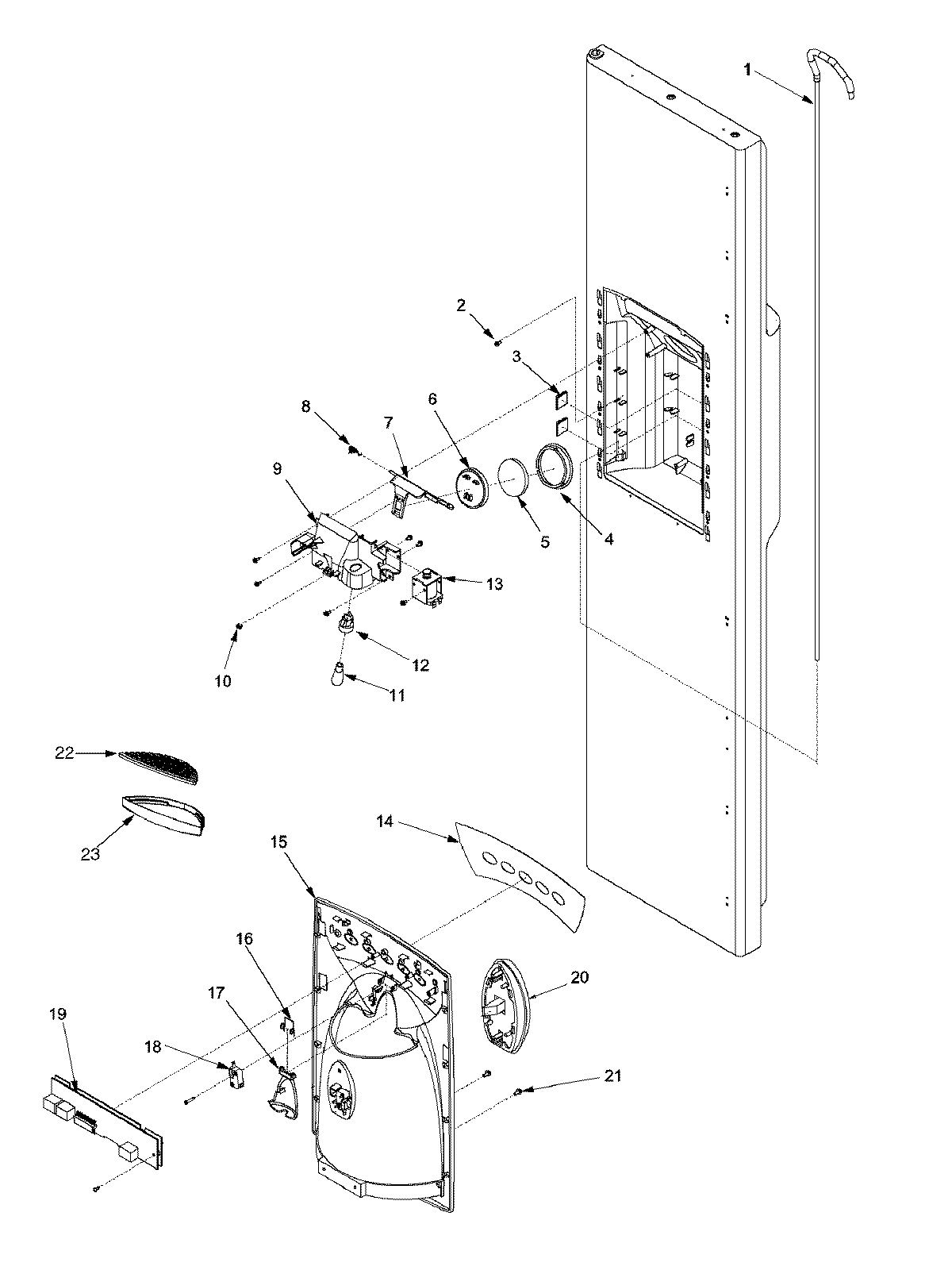

ASD2628HES 18 – FZ DOOR AND FACADE SERIES 50+

Products

Position	Product
1	67004938 Whirlpool Refrigerator Waterline Assembly
2	W10833902 Whirlpool Refrigerator Clamp
3	MAY M0104102
4	MAY 12665101
5	MAY 12563401
6	WP12562701 Whirlpool Dispenser Door
7	MAY 67004119
8	WP12565502 Whirlpool Refrigerator Spring
9	WP67006534 Whirlpool Refrigerator Ice Cube Chute
10	67002816 Whirlpool Refrigerator Waterline Clip
11	W10857122 Whirlpool Refrigerator Light Bulb, 7W, for Microwave/Dryer
12	MAY 12617501
13	SCREW, SM
13	MAY 12575401
14	MAY 67004299
15	MAY 67004302
16	MAY B8385403
17	MAY 12665402B
18	WP12575501 Whirlpool Refrigerator Micro Switch
18	MAY M0237902
19	MAY 67003817
20	MAY 12593203B
21	Screw (2)
22	WP67002382 Whirlpool Refrigerator Grille
23	MAY 12561002B
