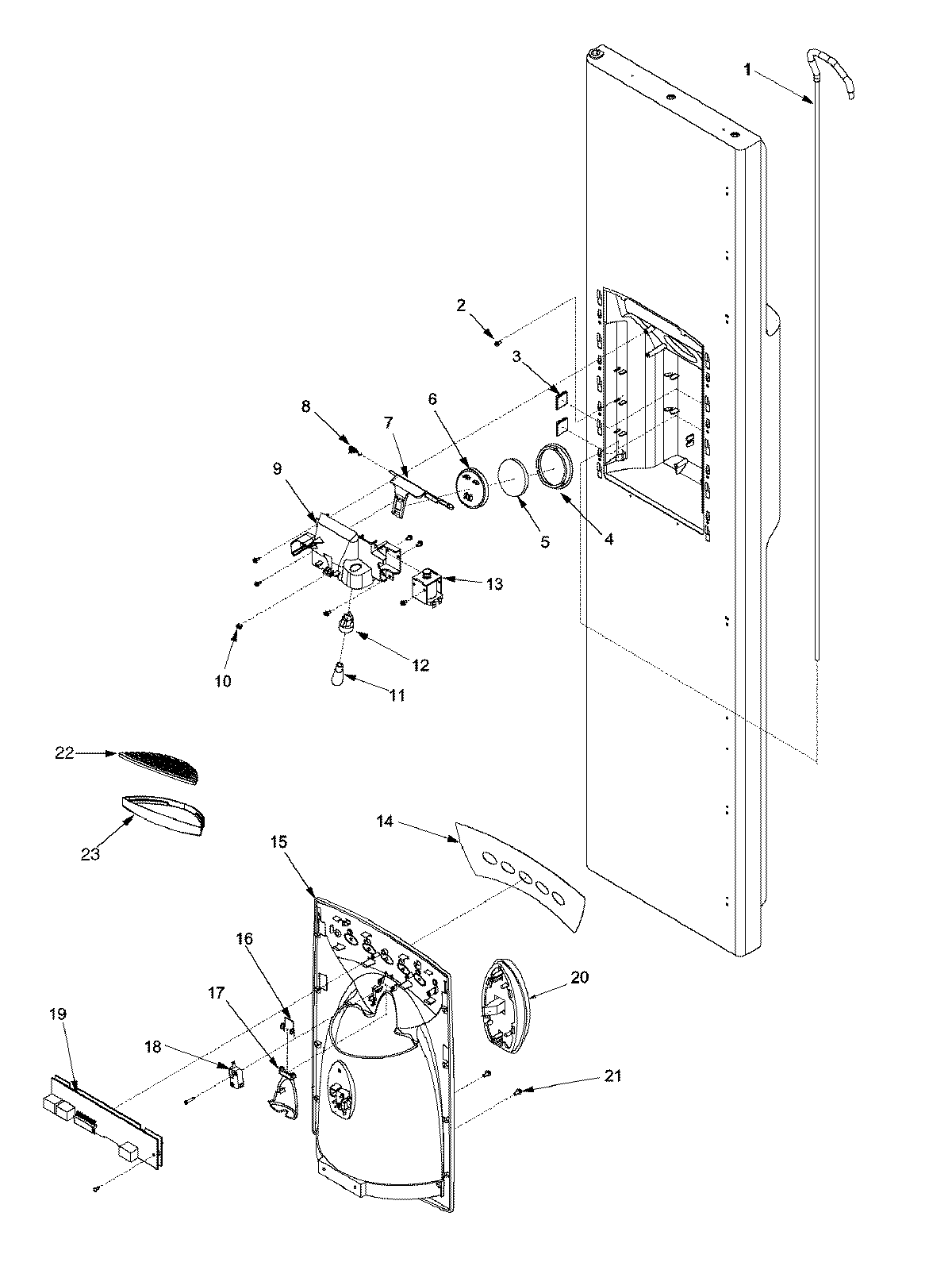

ASD262RHRQ 15 – FZ DOOR AND FACADE

ASD262RHRQ 15 – FZ DOOR AND FACADE

Written by

in

ASD262RHRQ 15 – FZ DOOR AND FACADE

Products

PositionProduct
167004938 Whirlpool Refrigerator Waterline Assembly
2W10833902 Whirlpool Refrigerator Clamp
3MAY M0104102
4MAY 12665101
5MAY 12563401
6WP12562701 Whirlpool Dispenser Door
7MAY 67004119
8WP12565502 Whirlpool Refrigerator Spring
9WP67006534 Whirlpool Refrigerator Ice Cube Chute
1067002816 Whirlpool Refrigerator Waterline Clip
11W10857122 Whirlpool Refrigerator Light Bulb, 7W, for Microwave/Dryer
12MAY 12617501
13SCREW, SM
13MAY 12575401
14MAY 67004336
15MAY 67004303
16MAY B8385403
17MAY 12665402C
18MAY M0237902
18WP12575501 Whirlpool Refrigerator Micro Switch
19WP67004258 Whirlpool Refrigerator Electronic Control Board
20MAY 12593203S
21Screw (2)
22MAY 67002817
23MAY 67002818
