ASF24DAS1 ROOM AIR CONDITIONER

ASF24DAS1 ROOM AIR CONDITIONER

Written by

in

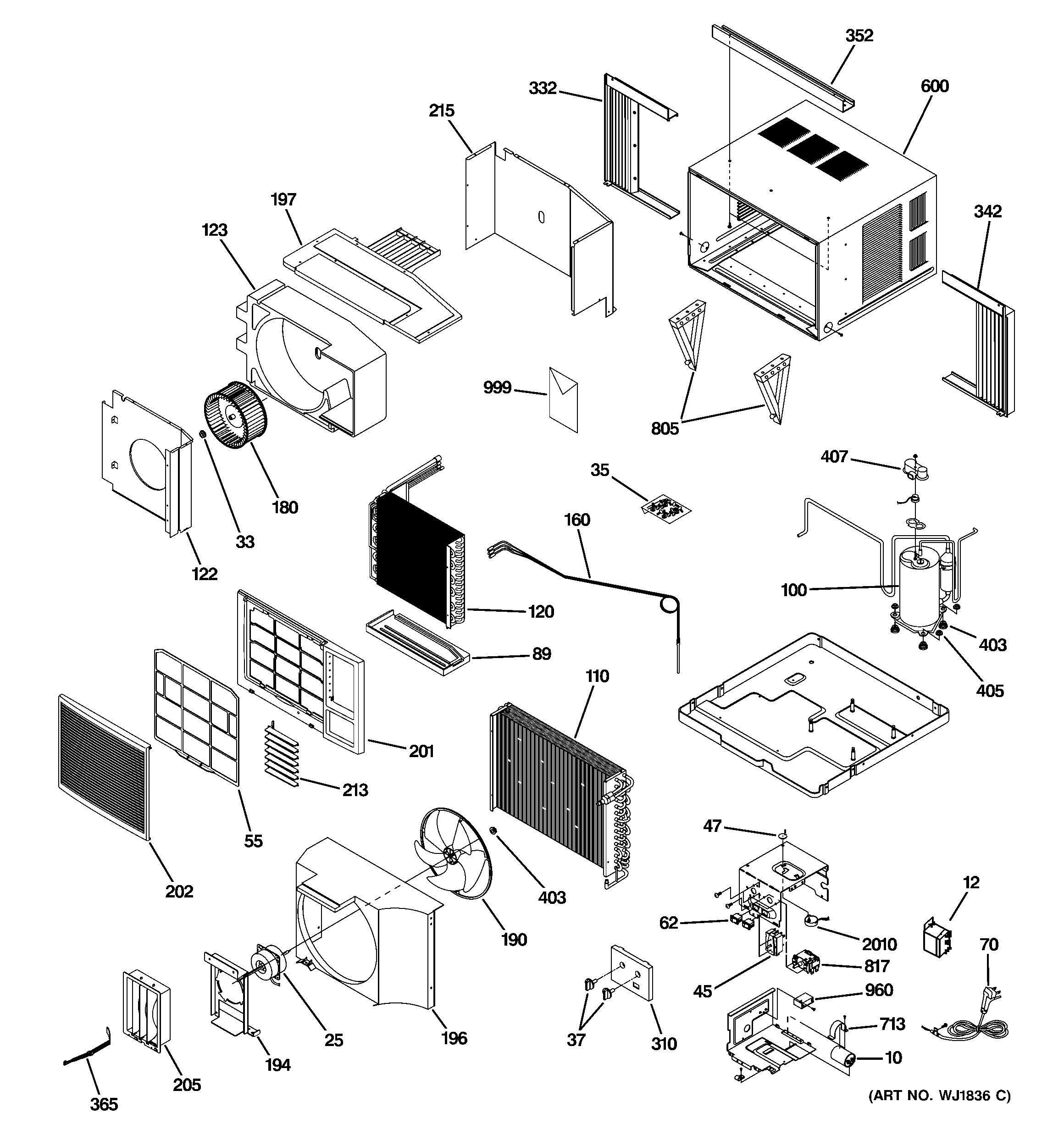

ASF24DAS1 ROOM AIR CONDITIONER

Products

Position	Product
10	GEN WJ20X10076
12	GEN WJ24X10003
25	MOTOR(YSK160-6A)
33	GEN WJ01X10147
35	GEN WJ01X10181
37	KNOB THERMO-ASSY
45	GEN WJ26X10026
47	GEN WJ01X10144
55	GUARD AIR-FILTER
62	GEN WJ26X10025
70	GEN WJ35X10042
89	TRAY-DRAIN
100	GEN WJ98X10129
110	GEN WJ88X10089
120	GEN WJ87X10095
122	GEN WJ76X10061
123	GEN WJ76X10087
160	GEN WJ53X10086
180	GEN WJ73X10043
190	FAN BLADE – O.D.
194	GEN WJ95X10003
196	CASE-COND
197	GEN WJ01X10111
201	GRILLE FRAME
202	GRILLE-AIR INLET
205	GEN WJ71X10215
213	LOUVERS HORIZONTAL
215	GEN WJ71X10292
310	GEN WJ26X10044
332	SHUTTER,LF
342	SHUTTER,RH
352	SHUTTER-ANGLE UPP
365	GEN WJ14X10019
403	GEN WJ01X10119
405	GEN WJ01X10182
407	COVER-TERMINAL
600	GEN WJ90X10033
713	CLIP-CAPACITOR
805	GEN WJ66X10046
817	GEN WJ28X10016
960	GEN WJ20X10051
999	GEN 49-7443
999	GEN 31-61001
2010	GEN WJ94X10071
