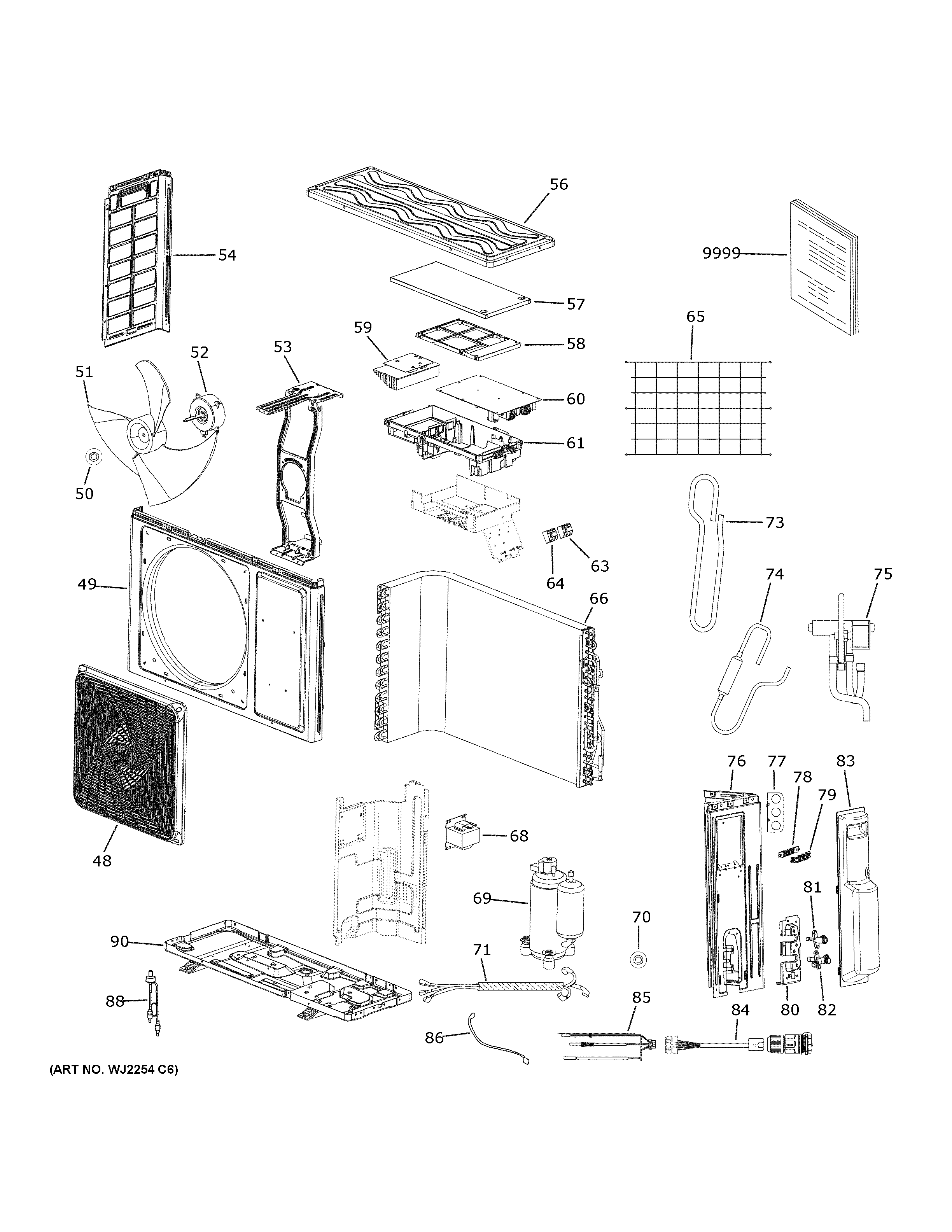

ASH109CRDDA1 ROOM AIR CONDITIONERadmin2025-04-26T08:53:27+00:00ASH109CRDDA1 ROOM AIR CONDITIONER ProductsPositionProduct48WJ73X32540 GE Fan Blade49CASING ASSEMBLY50FLANGE NUT51WJ73X32538 GE Fan Blade52OUTDOOR FAN MOTOR53WJ65X27874 GE Fan Motor Bracket54WJ71X32536 GE Left Side Panel56WJ71X32533 GE Top Panel57WJ76X28173 GE Electrical Box Cover58WJ65X27919 GE Power Control Board Bracket59WJ26X27939 GE Inverter Assembly60WJ26X27941 GE Outdoor Power Control Board61ELECTRICAL BOX63WJ27X27922 GE Indoor Terminal Block64TERMINAL BLOCK65WJ71X27893 GE Washer Rear Grille66WJ88X27927 GE Condenser68WJ27X22981 GE Reactor69WJ98X27925 GE Compressor70WJ01X26442 GE Compressor Nut71WJ35X27920 GE Outdoor Harness Wire73WJ53X27928 GE Suction Tube74DISCHARGE TUBE75WJ53X27930 GE 4-Way Valve76WJ71X32537 GE Right Side Panel77WJ65X27113 GE Bracket Strain Relief78WJ65X27899 GE Strain Relief Top79WJ65X27900 GE Bottom Strain Relief80WJ65X32535 GE Service Valve Mount81WJ53X24973 GE Liquid Service Valve82WJ53X24974 GE Vapor Service Valve83WJ65X32539 GE Handle84RJ4585WJ26X27921 GE Ambient Thermistor86WJ26X23009 GE Suction Sensor88WJ53X28177 GE Electronic Expansion Valve90BOTTOM PLATE ASSY.9999PM INSTALL INSTRUCTIONS
