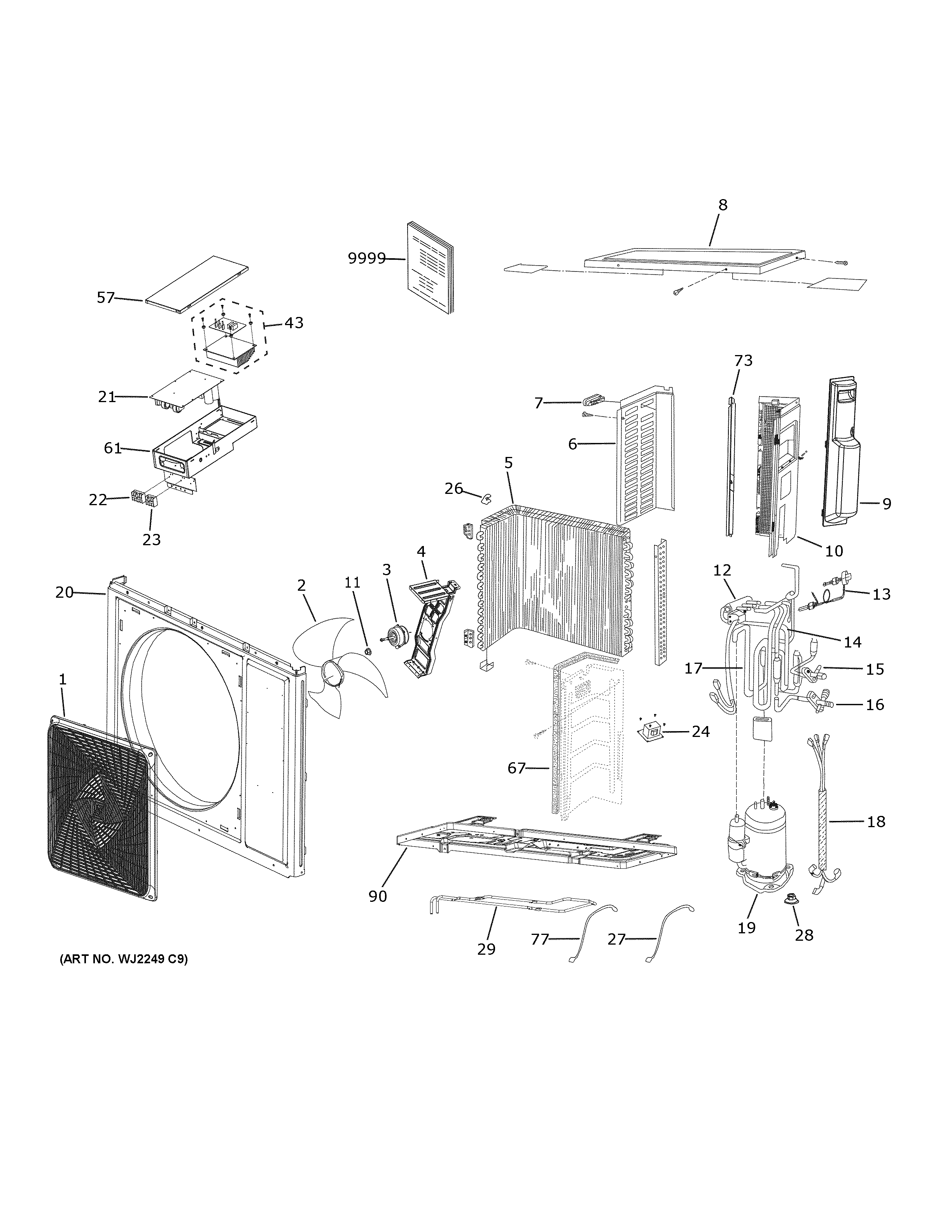

ASH109PRDBB1 ROOM AIR CONDITIONER

Products

Position	Product
1	WJ71X33075 GE Grill
2	WJ73X33078 GE Fan Blade
3	OUTDOOR FAN MOTOR
4	WJ65X22976 GE Outdoor Fan Motor Bracket
5	CONDENSER ASSY.
6	WJ71X33096 GE Left Side Panel
7	WJ65X33083 GE Wire Cover
8	WJ71X33094 GE Top Cover
9	VALVE COVER
10	WJ71X33098 GE Right Side Panel
11	FLANGE NUT
12	4-WAY VALVE TUBE ASSEMBLY
13	WJ26X24659 GE Electronic Expansion Valve
14	WJ53X33044 GE Discharge Pipe
15	WJ53X24973 GE Liquid Service Valve
16	WJ53X24974 GE Vapor Service Valve
17	WJ53X22983 GE Suction Tube
18	WJ35X22978 GE Outdoor Wire Harness
19	COMPRESSOR
20	WJ71X33095 GE Casing
21	WJ26X33173 GE Power Control Board
22	WJ27X26435 GE Terminal Block
23	WJ27X24663 GE Supply Terminal Block
24	WJ27X22981 GE Reactor
26	WJ01X23219 GE Sensor Clip
27	WJ26X22984 GE Sensor Assembly Amb/Dis/Coil
28	WJ01X22974 GE Flange Nut
29	WJ27X24656 GE Basepan Heater
43	WJ26X24110 GE Inverter Assembly
57	WJ76X28173 GE Electrical Box Cover
61	ELECTRAL BOX
67	WJ71X33046 GE Panel Plate Partition
73	WJ71X33097 GE Crossbeam
77	WJ35X33043 GE Electric Heater Harness
90	BOTTOM PLATE ASSY.
9999	PM INSTALL INSTRUCTIONS
