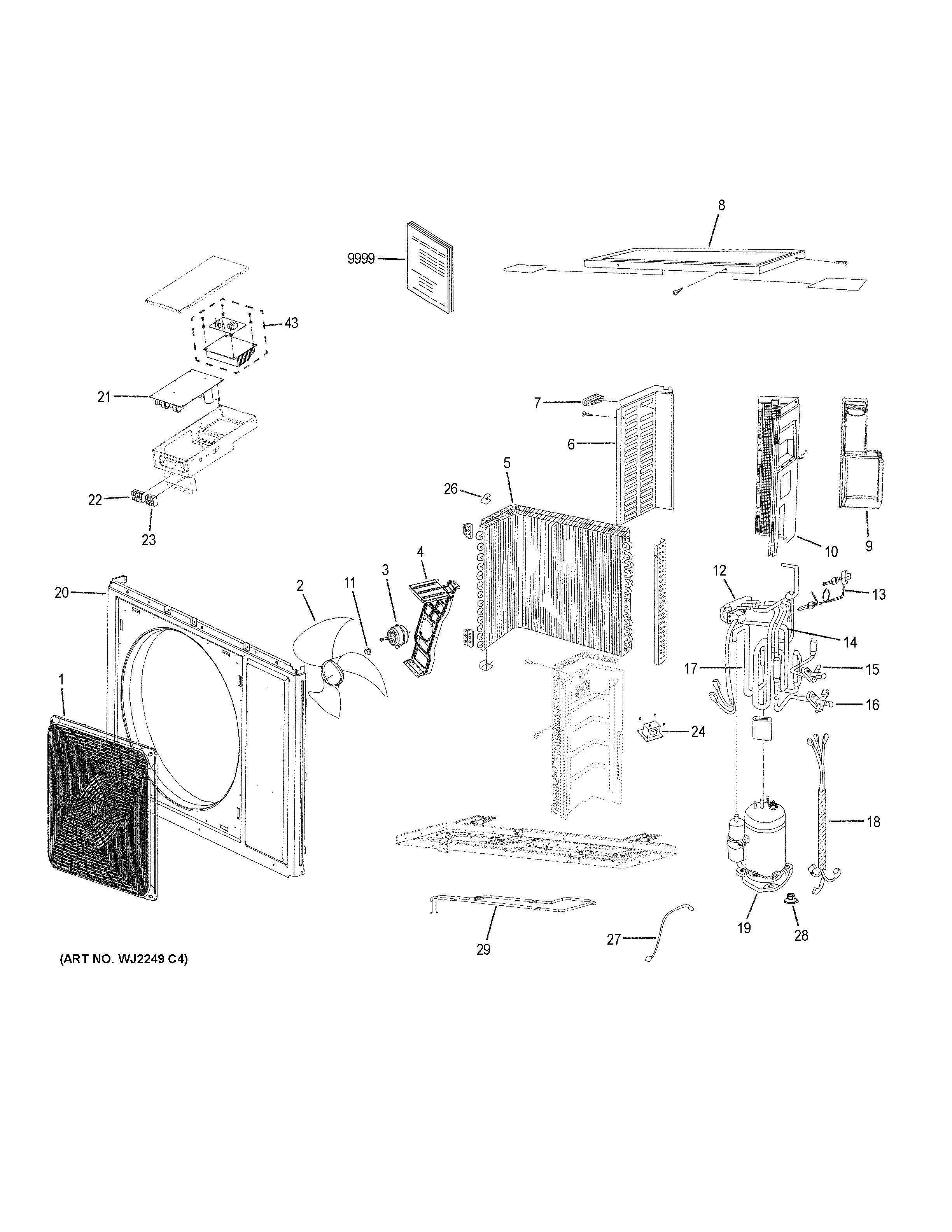

ASH109PRDWA ROOM AIR CONDITIONERadmin2025-04-26T08:53:35+00:00ASH109PRDWA ROOM AIR CONDITIONER ProductsPositionProduct1GRILL2WJ73X22973 GE Fan Blade3OUTDOOR FAN MOTOR4WJ65X22976 GE Outdoor Fan Motor Bracket5CONDENSER6LEFT SIDE PANEL7HANDLE8TOPCOVER9WJ76X22982 GE Valve Cover10RIGHT SIDE PANEL11FLANGE NUT124-WAY VALVE TUBE ASSEMBLY13WJ26X24659 GE Electronic Expansion Valve14WJ53X22971 GE Discharge Tube15WJ53X24973 GE Liquid Service Valve16WJ53X24974 GE Vapor Service Valve17WJ53X22983 GE Suction Tube18WJ35X22978 GE Outdoor Wire Harness19COMPRESSOR20CASING21WJ26X25077 GE Power Control Board22WJ27X22985 GE Terminal Block23WJ27X24663 GE Supply Terminal Block24WJ27X22981 GE Reactor26WJ01X23219 GE Sensor Clip27WJ26X22984 GE Sensor Assembly Amb/Dis/Coil28WJ01X22974 GE Flange Nut29WJ27X24656 GE Basepan Heater43WJ26X24110 GE Inverter Assembly9999PM INSTALL INSTRUCTIONS
