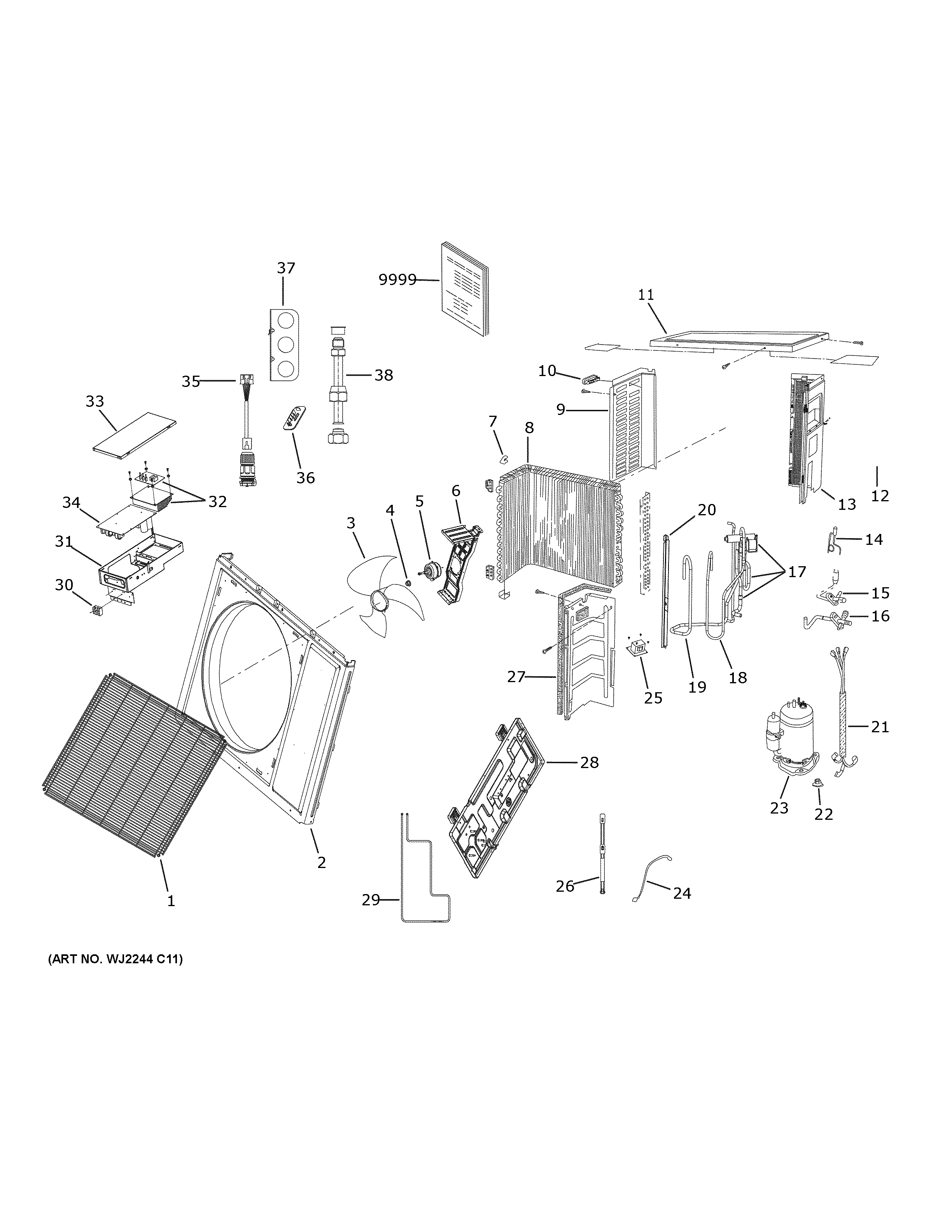

ASH109URDEB1 ROOM AIR CONDITIONERadmin2025-04-26T08:53:20+00:00ASH109URDEB1 ROOM AIR CONDITIONER ProductsPositionProduct1GRILL2CASING3WJ73X33079 GE Fan Blade4WJ01X22974 GE Flange Nut5OUTDOOR FAN MOTOR6WJ65X23001 GE Bracket Outdoor Fan Motor7WJ01X23219 GE Sensor Clip8CONDENSER9WJ71X33100 GE Left Side Panel10WJ65X33081 GE Handle11WJ71X33106 GE Top Cover12VALVE COVER13WJ71X33102 GE Right Side Panel14WJ53X26455 GE EEV Valve15WJ53X24973 GE Liquid Service Valve16WJ53X24975 GE Vapor Service Valve17WJ53X26454 GE 4-Way Valve18DISCHARGE TUBE19WJ53X26452 GE Suction Tube20WJ71X33101 GE Crossbeam21WJ35X27920 GE Outdoor Harness Wire22WJ01X26442 GE Compressor Nut23COMPRESSOR24WJ26X23009 GE Suction Sensor25WJ27X23157 GE Reactor26COMPRESSOR HEATER27WJ71X32956 GE Divider Panel28BOTTOM PLATE ASSY.29WJ27X24665 GE Heater Basepan30WJ27X26435 GE Terminal Block31ELECTRICAL BOX32WJ26X27117 GE Inverter Assembly33CONTROL BOX COVER34WJ26X33213 GE Power Control Board35RJ4536WJ76X27114 GE Cover37WJ65X27113 GE Bracket Strain Relief38WJ01X27116 GE 1/2" X 3/8" Adapter9999PM INSTALL INSTRUCTIONS
