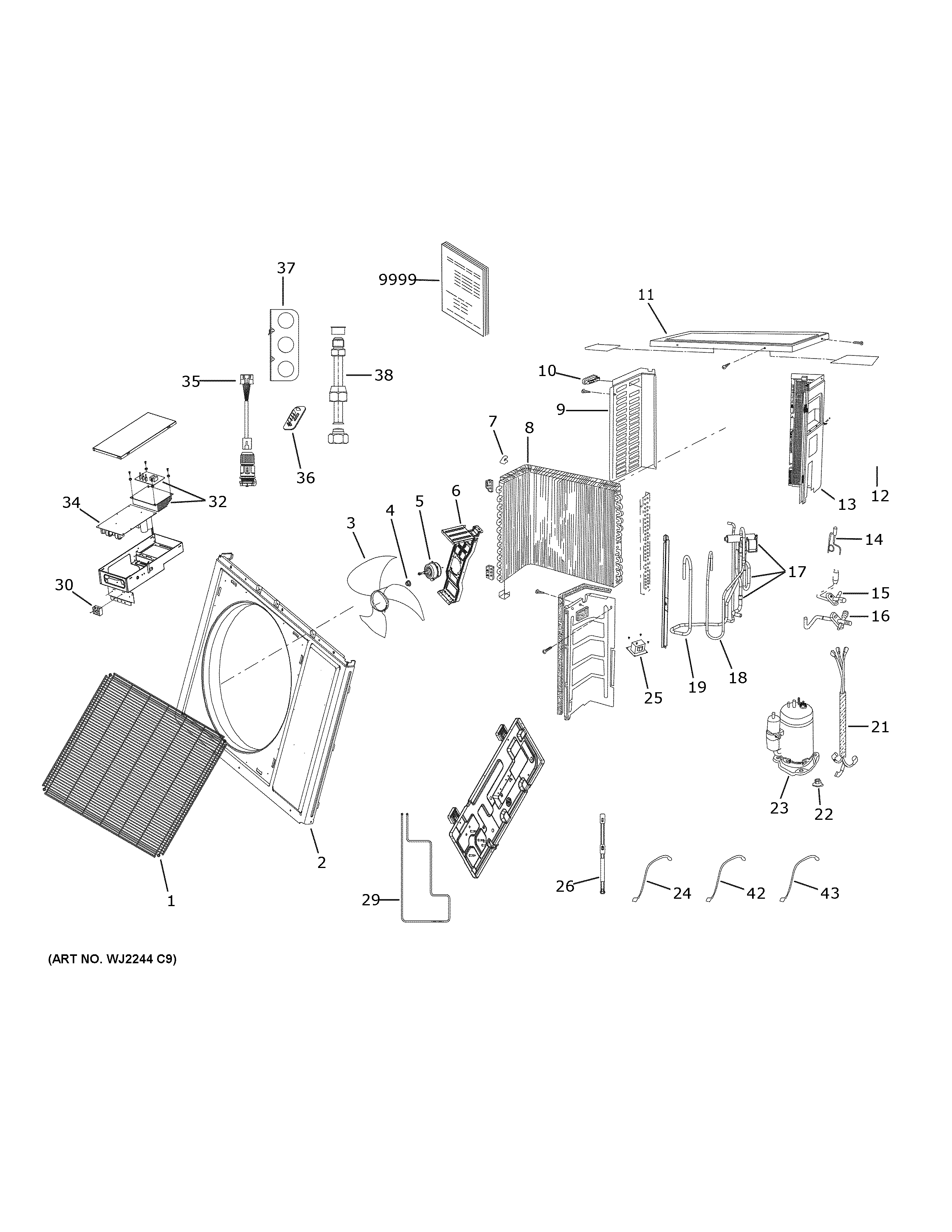

ASH109URDSD1 ROOM AIR CONDITIONER

Products

Position	Product
1	WJ71X26473 GE Grille
2	WJ76X26480 GE Casing
3	FAN BLADE
4	WJ01X22974 GE Flange Nut
5	OUTDOOR FAN MOTOR
6	WJ65X23001 GE Bracket Outdoor Fan Motor
7	WJ01X23219 GE Sensor Clip
8	CONDENSER
9	WJ71X26481 GE Left Side Panel
10	WJ01X26475 GE Handle
11	WJ76X26482 GE Top Cover
12	WJ76X26476 GE Valve Cover
13	WJ71X26483 GE Right Side Panel
14	WJ53X26455 GE EEV Valve
15	WJ53X24973 GE Liquid Service Valve
16	WJ53X24975 GE Vapor Service Valve
17	WJ53X26454 GE 4-Way Valve
18	DISCHARGE TUBE
19	WJ53X26452 GE Suction Tube
21	WJ35X26436 GE Outdoor Harness Wire
22	WJ01X26442 GE Compressor Nut
23	COMPRESSOR
24	WJ26X23009 GE Suction Sensor
25	WJ27X23157 GE Reactor
26	COMPRESSOR HEATER
29	WJ27X24665 GE Heater Basepan
30	WJ27X26435 GE Terminal Block
32	WJ26X27117 GE Inverter Assembly
34	WJ26X28293 GE Power Control Board
35	RJ45
36	WJ76X27114 GE Cover
37	WJ65X27113 GE Bracket Strain Relief
38	WJ01X27116 GE 1/2" X 3/8" Adapter
42	WJ26X22984 GE Sensor Assembly Amb/Dis/Coil
43	WJ26X23334 GE Sensor Pipe
9999	PM INSTALL INSTRUCTIONS
