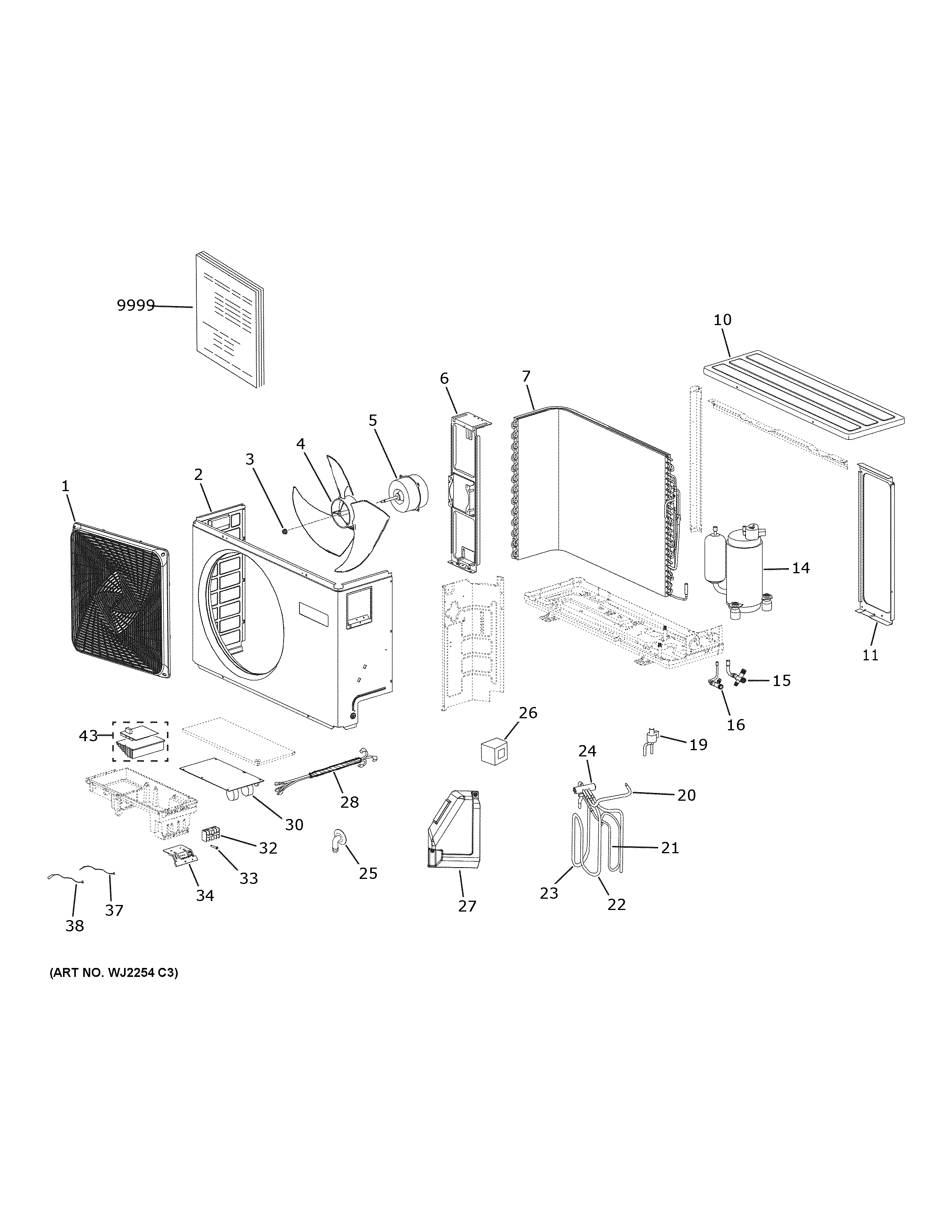

ASH112CRAWA1 ROOM AIR CONDITIONER

Products

Position	Product
1	WJ71X23191 GE Grille
2	WJ76X23185 GE Casing
3	WJ01X22974 GE Flange Nut
4	WJ73X23190 GE Fan Blade
5	OUTDOOR FAN MOTOR
6	WJ65X23207 GE Outdoor Fan Motor Bracket
7	WJ88X23205 GE Condenser
10	WJ76X23200 GE Top Cover
11	WJ76X23197 GE Rear Board Guard
14	COMPRESSOR
15	WJ53X24974 GE Vapor Service Valve
16	WJ53X24973 GE Liquid Service Valve
19	WJ53X23148 GE Expansion Valve Electronic
20	WJ53X23206 GE Exhaust Pipe
21	WJ53X23203 GE Air Inlet Pipe
22	WJ53X25634 GE Discharge Tube
23	WJ53X23199 GE Suction Tube
24	WJ53X23182 GE 4-Way Valve
25	DRAIN ELBOW
26	WJ26X23196 GE Reactor
27	STOP VALVE COVER
28	WJ35X23202 GE Outdoor Wiring Harness
30	WJ26X23209 GE AC Power Control Board Outdoor
32	WJ27X22985 GE Terminal Block
33	WJ01X23198 GE Screw Assembly
34	CAPACITOR BOARD
37	WJ26X22984 GE Sensor Assembly Amb/Dis/Coil
38	WJ26X23009 GE Suction Sensor
43	WJ26X24101 GE Inverter Assembly
9999	PM INSTALL INSTRUCTIONS
