ASH112PRDWA ROOM AIR CONDITIONER

Products

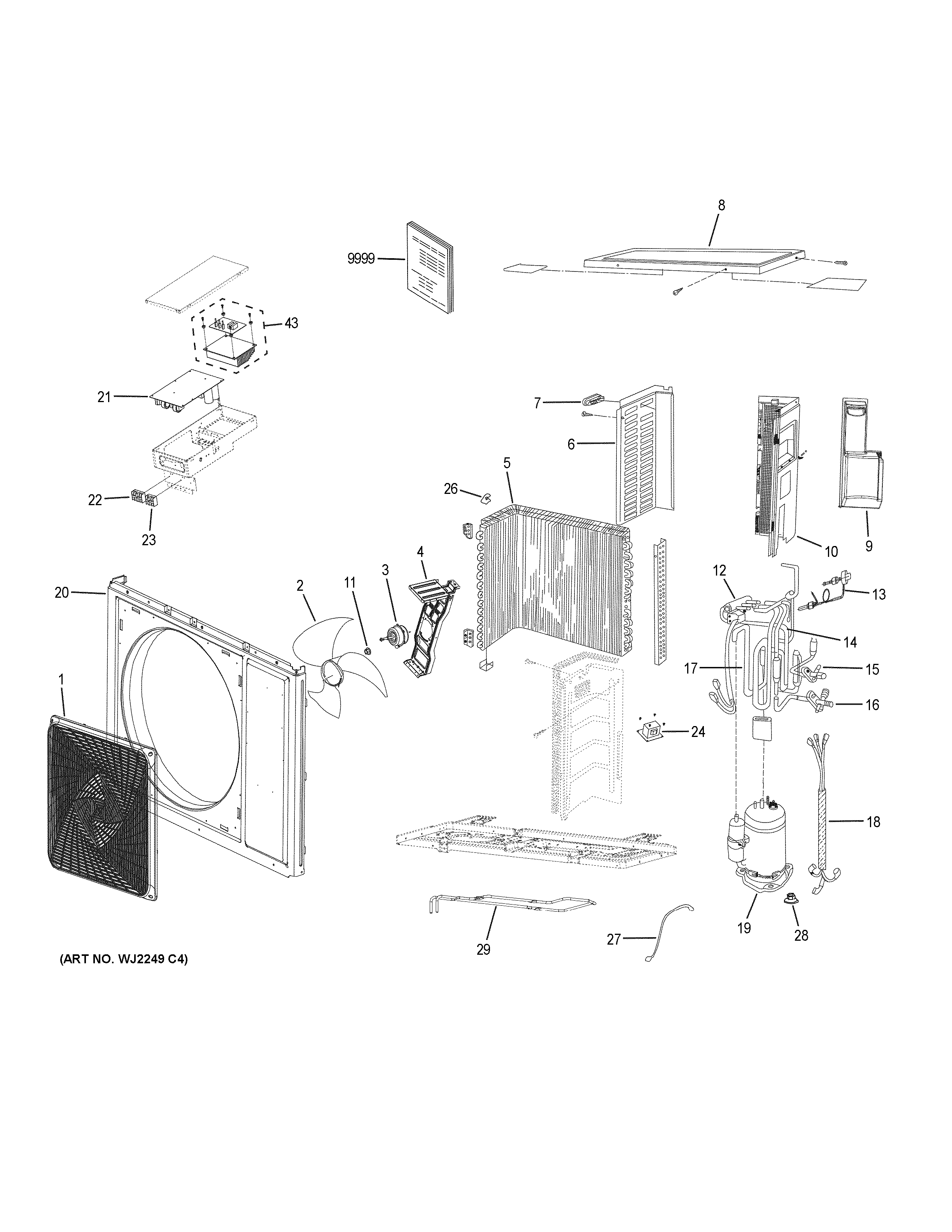

Position	Product
1	GRILL
2	WJ73X22973 GE Fan Blade
3	OUTDOOR FAN MOTOR
4	WJ65X22976 GE Outdoor Fan Motor Bracket
5	CONDENSER
6	LEFT SIDE PANEL
7	HANDLE
8	TOPCOVER
9	WJ76X22982 GE Valve Cover
10	RIGHT SIDE PANEL
11	FLANGE NUT
12	4-WAY VALVE TUBE ASSEMBLY
14	WJ53X22971 GE Discharge Tube
15	WJ53X24973 GE Liquid Service Valve
16	WJ53X24974 GE Vapor Service Valve
17	WJ53X22983 GE Suction Tube
18	WJ35X22978 GE Outdoor Wire Harness
19	COMPRESSOR
20	CASING
21	POWER PCB & EEV KIT
22	WJ27X22985 GE Terminal Block
23	WJ27X24663 GE Supply Terminal Block
24	WJ27X22981 GE Reactor
26	WJ01X23219 GE Sensor Clip
27	WJ26X22984 GE Sensor Assembly Amb/Dis/Coil
28	WJ01X22974 GE Flange Nut
29	WJ27X24656 GE Basepan Heater
43	WJ26X24110 GE Inverter Assembly
9999	PM INSTALL INSTRUCTIONS
