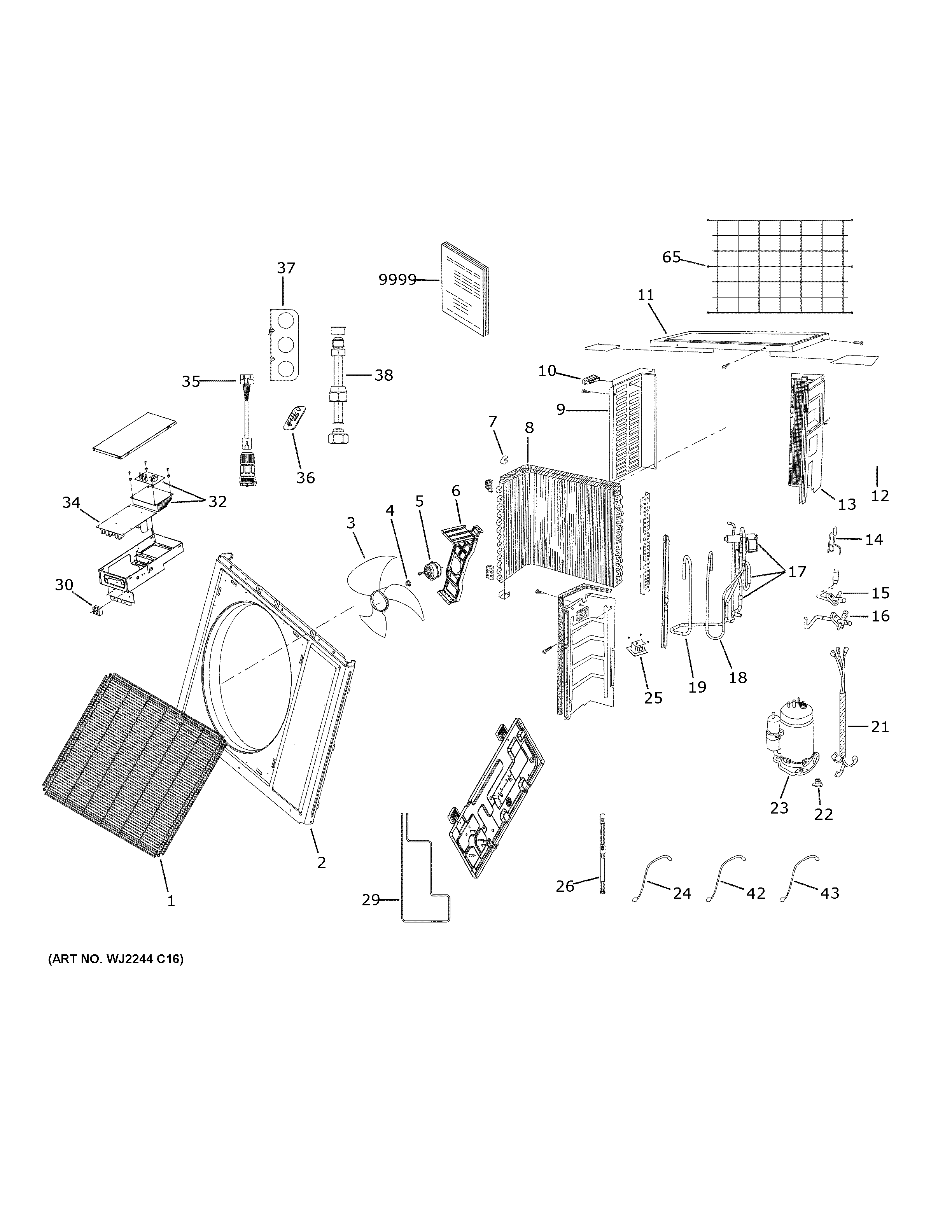

ASH112URDSD1 ROOM AIR CONDITIONER

Products

Position	Product
1	WJ71X26473 GE Grille
2	WJ76X26480 GE Casing
3	FAN BLADE
4	WJ01X22974 GE Flange Nut
5	OUTDOOR FAN MOTOR
6	WJ65X26478 GE Outdoor Fan Motor Bracket
7	WJ01X23219 GE Sensor Clip
8	CONDENSER
9	WJ71X26481 GE Left Side Panel
10	WJ01X26475 GE Handle
11	WJ76X26482 GE Top Cover
12	WJ76X26476 GE Valve Cover
13	WJ71X26483 GE Right Side Panel
14	WJ53X26447 GE EVAP Valve
15	WJ53X24973 GE Liquid Service Valve
16	WJ53X24975 GE Vapor Service Valve
17	4-WAY VALVE
18	DISCHARGE TUBE
19	WJ53X26450 GE Suction Tube
21	WJ35X26440 GE Outdoor Wire Harness
22	WJ01X26442 GE Compressor Nut
23	WJ98X26453 GE Compressor
24	WJ26X23009 GE Suction Sensor
25	WJ27X23157 GE Reactor
26	COMPRESSOR HEATER
29	WJ27X24665 GE Heater Basepan
30	WJ27X26435 GE Terminal Block
32	WJ26X26459 GE Inverter Assembly
34	WJ26X28294 GE Power Control Board
35	RJ45
36	WJ76X27114 GE Cover
37	WJ65X27113 GE Bracket Strain Relief
38	WJ01X27116 GE 1/2" X 3/8" Adapter
42	WJ26X22984 GE Sensor Assembly Amb/Dis/Coil
43	WJ26X23334 GE Sensor Pipe
65	WJ71X27893 GE Washer Rear Grille
9999	PM INSTALL INSTRUCTIONS
