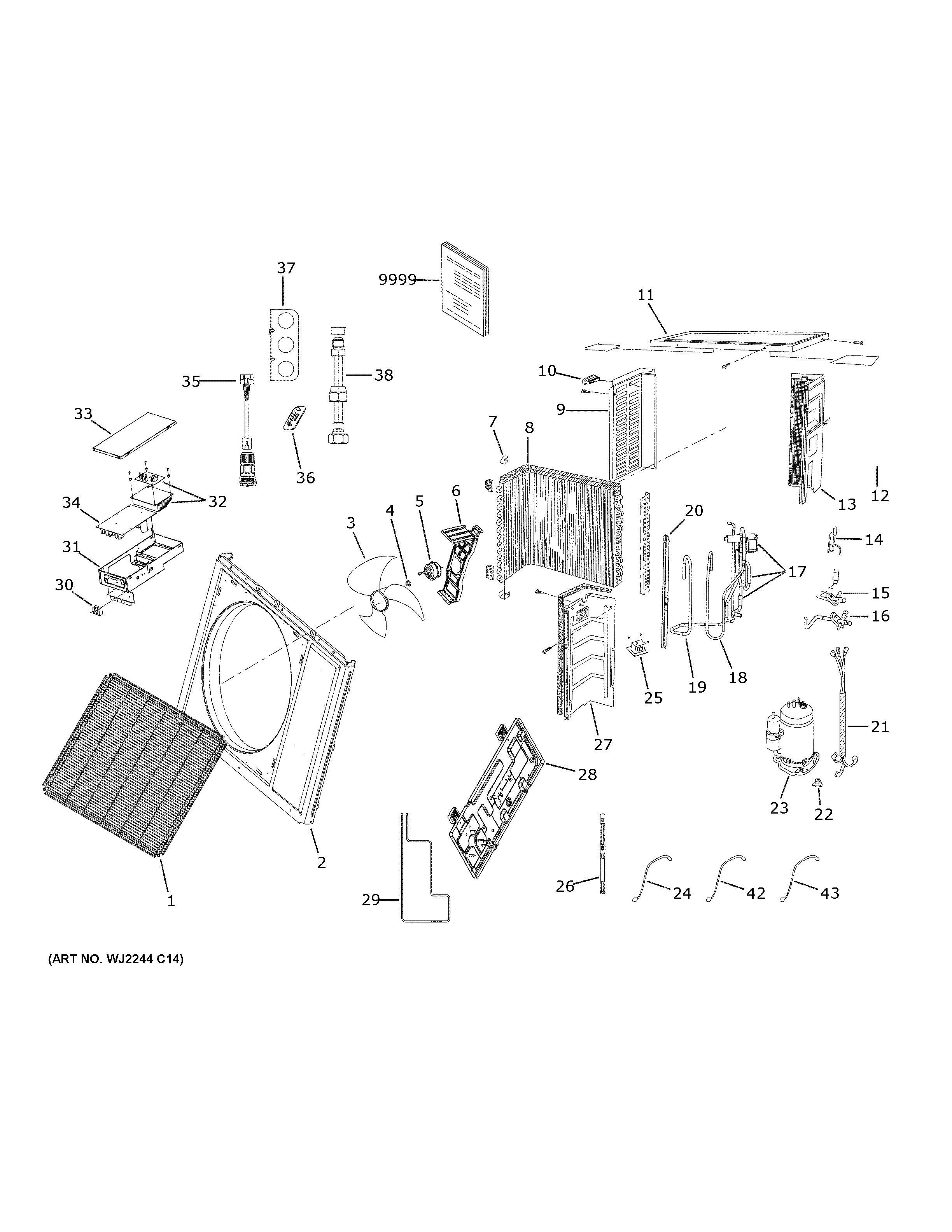

ASH112URDSE1 ROOM AIR CONDITIONERadmin2025-04-26T08:53:38+00:00ASH112URDSE1 ROOM AIR CONDITIONER ProductsPositionProduct1WJ71X26473 GE Grille2WJ76X26480 GE Casing3FAN BLADE4WJ01X22974 GE Flange Nut5OUTDOOR FAN MOTOR6WJ65X26478 GE Outdoor Fan Motor Bracket7WJ01X23219 GE Sensor Clip8CONDENSER ASSY9WJ71X26481 GE Left Side Panel10WJ01X26475 GE Handle11WJ76X26482 GE Top Cover12WJ76X26476 GE Valve Cover13WJ71X26483 GE Right Side Panel14WJ53X26447 GE EVAP Valve15WJ53X24973 GE Liquid Service Valve16WJ53X24975 GE Vapor Service Valve17WJ53X26454 GE 4-Way Valve18DISCHARGE TUBE19WJ53X26450 GE Suction Tube20WJ65X32954 GE Support Bar21WJ35X26440 GE Outdoor Wire Harness22WJ01X26442 GE Compressor Nut23WJ98X26453 GE Compressor24WJ26X23009 GE Suction Sensor25WJ27X23157 GE Reactor26COMPRESSOR HEATER27WJ71X32959 GE Divider Panel28BOTTOM PLATE ASSY.29WJ27X24665 GE Heater Basepan30WJ27X26435 GE Terminal Block31ELECTRICAL BOX32WJ26X26459 GE Inverter Assembly33CONTROL BOX COVER34WJ26X28294 GE Power Control Board35RJ4536COVER37WJ65X27113 GE Bracket Strain Relief38WJ01X27116 GE 1/2" X 3/8" Adapter42WJ26X22984 GE Sensor Assembly Amb/Dis/Coil43WJ26X23334 GE Sensor Pipe9999PM INSTALL INSTRUCTIONS9999PM OTHER
