ASH115PRDWA ROOM AIR CONDITIONER

ASH115PRDWA ROOM AIR CONDITIONER

Written by

in

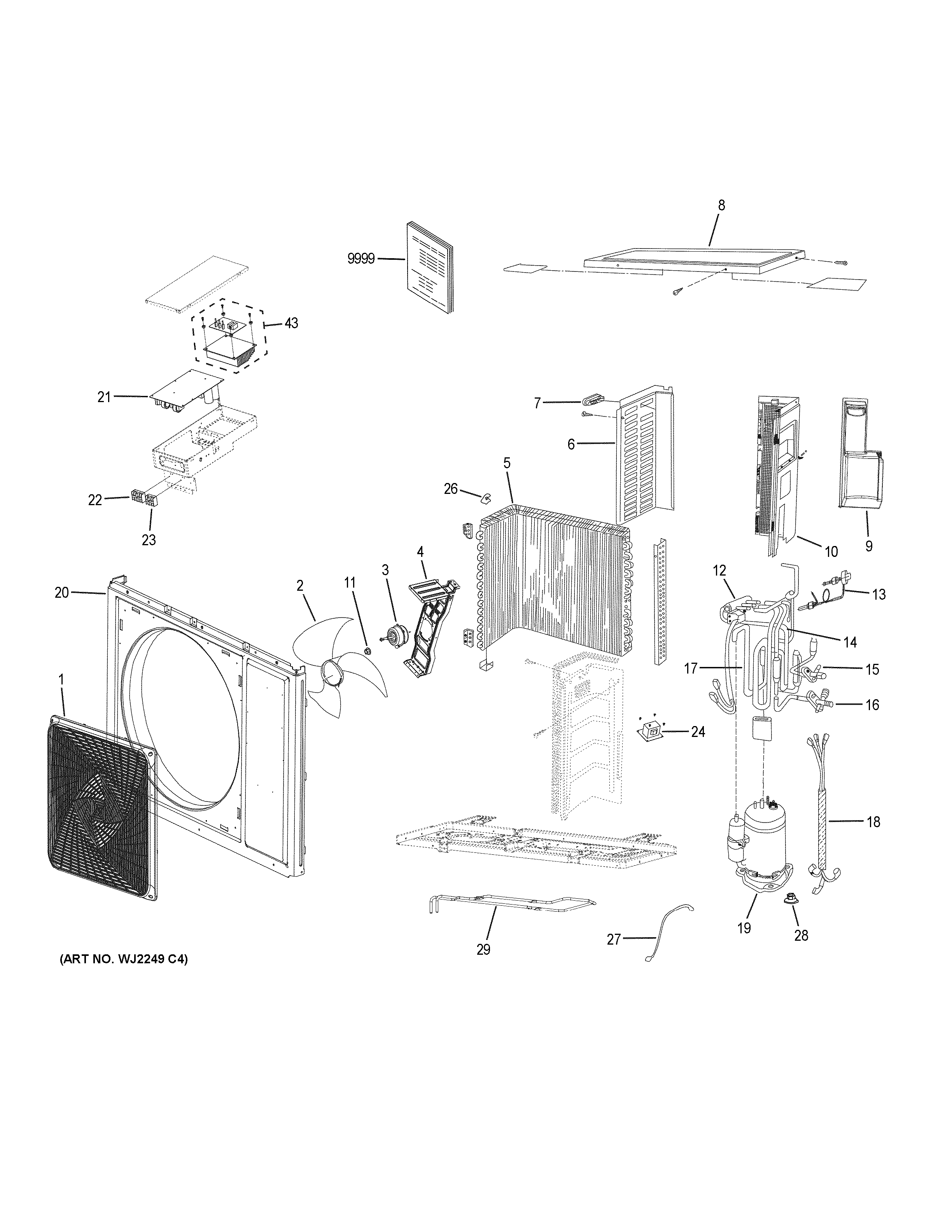

ASH115PRDWA ROOM AIR CONDITIONER

Products

PositionProduct
1WJ71X23261 GE Grille
2FAN BLADE
3OUTDOOR FAN MOTOR
4WJ65X23001 GE Bracket Outdoor Fan Motor
5WJ88X22994 GE Condenser
6WJ71X23215 GE Left Side Panel
7WJ01X24664 GE Handle
8TOP COVER
9WJ76X23007 GE Valve Cover
10RIGHT SIDE PANEL
11FLANGE NUT
12WJ53X24701 GE Tube Assembly 4-Way Valve
13WJ26X24668 GE Electronic Expansion Valve
14DISCHARGE TUBE
15WJ53X24973 GE Liquid Service Valve
16WJ53X24975 GE Vapor Service Valve
17WJ53X23008 GE Suction Tube
18WJ35X25394 GE Outdoor Wire Harness
19WJ98X22993 GE Compressor
20WJ76X23212 GE Casing Assembly
21WJ26X25076 GE Power Control Board
22WJ27X23011 GE Indoor Terminal Block
23TERMINAL BLOCK
24WJ27X23006 GE Reactor
26WJ01X23219 GE Sensor Clip
27WJ26X23009 GE Suction Sensor
28WJ01X22974 GE Flange Nut
29WJ27X24665 GE Heater Basepan
43INVERTER ASSEMBLY
9999PM INSTALL INSTRUCTIONS
