ASH118CRDWA1 ROOM AIR CONDITIONER

ASH118CRDWA1 ROOM AIR CONDITIONER

Written by

in

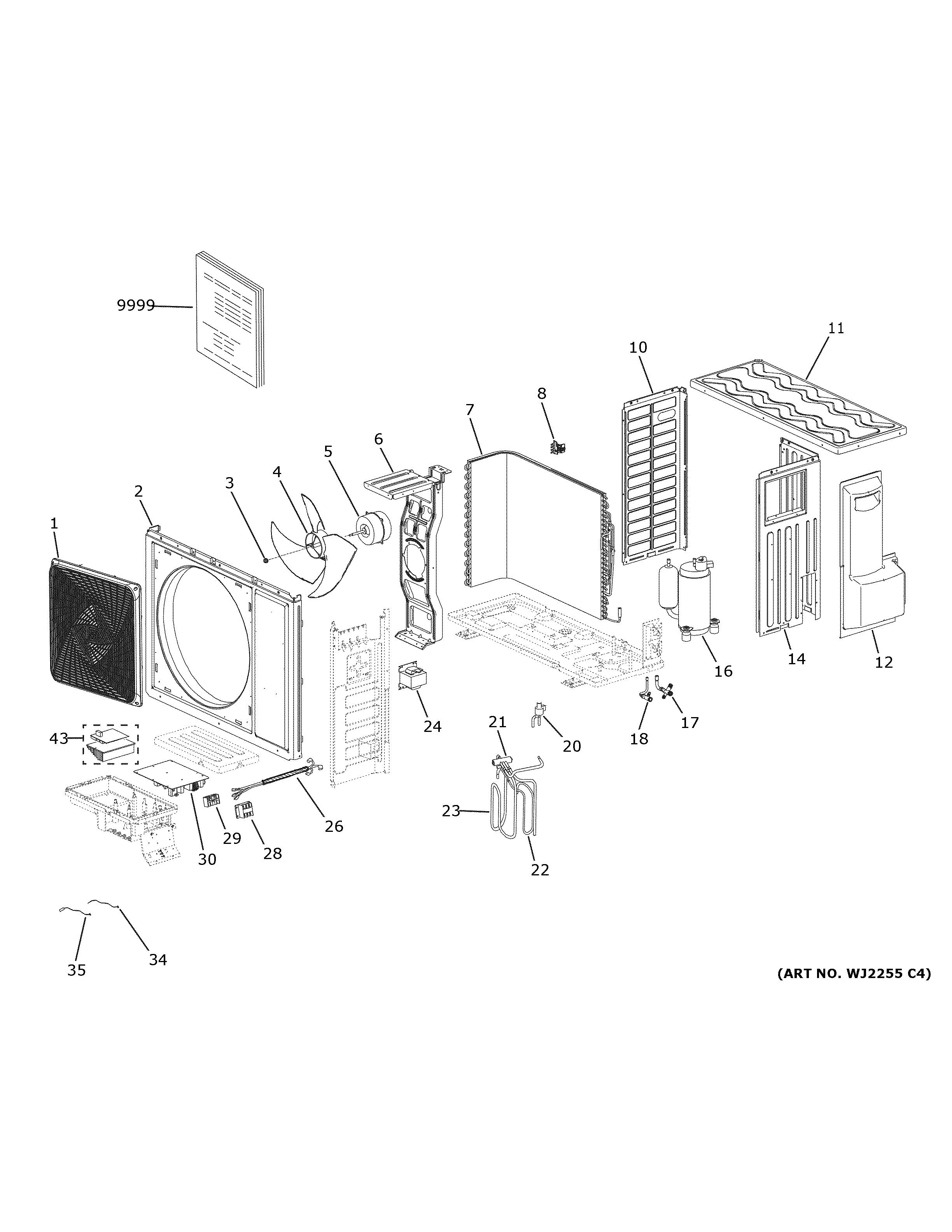

ASH118CRDWA1 ROOM AIR CONDITIONER

Products

PositionProduct
1WJ71X23261 GE Grille
2WJ76X23212 GE Casing Assembly
3WJ01X22974 GE Flange Nut
4FAN BLADE
5OUTDOOR FAN MOTOR
6WJ65X23001 GE Bracket Outdoor Fan Motor
7WJ88X22994 GE Condenser
8WJ01X23219 GE Sensor Clip
10WJ71X23215 GE Left Side Panel
11TOP COVER
12WJ76X23007 GE Valve Cover
14RIGHT SIDE PANEL
16WJ98X22993 GE Compressor
17WJ53X24975 GE Vapor Service Valve
18WJ53X24973 GE Liquid Service Valve
20WJ53X23213 GE Air Conditioner Electronic Expansion Valve
21WJ53X22987 GE 4-Way Valve Assembly
22WJ53X25637 GE Discharge Tube
23WJ53X23008 GE Suction Tube
24WJ27X23006 GE Reactor
26WJ35X25394 GE Outdoor Wire Harness
28WJ27X23011 GE Indoor Terminal Block
29WJ27X25393 GE Terminal Block Supply
30OUTDOOR POWER CONTROL BOARD
34WJ26X23009 GE Suction Sensor
35WJ26X22984 GE Sensor Assembly Amb/Dis/Coil
43WJ26X24106 GE Inverter Assembly
9999PM INSTALL INSTRUCTIONS
