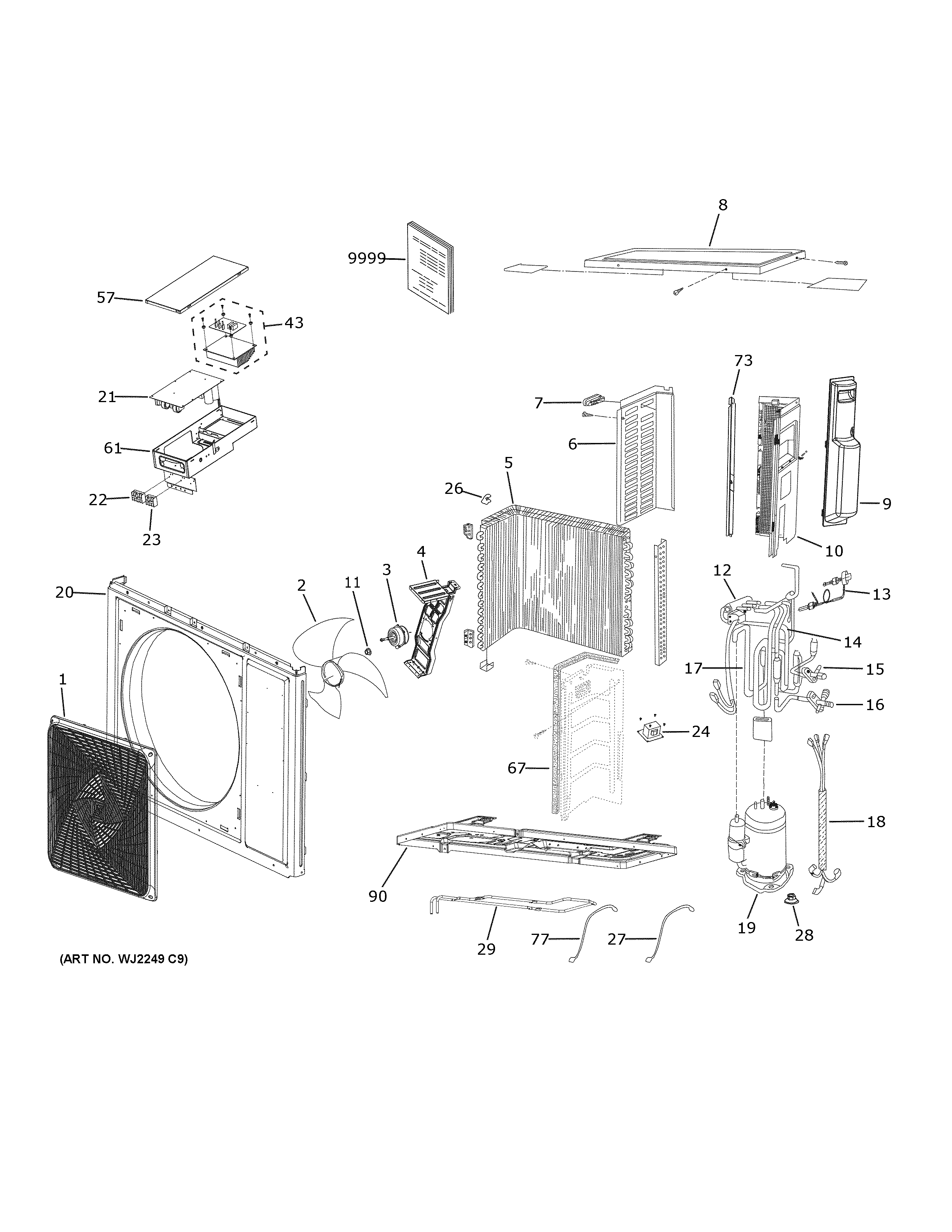

ASH118PRDBB1 ROOM AIR CONDITIONER

Products

Position	Product
1	GRILL
2	WJ73X33079 GE Fan Blade
3	OUTDOOR FAN MOTOR
4	WJ65X23001 GE Bracket Outdoor Fan Motor
5	CONDENSER
6	WJ71X33100 GE Left Side Panel
7	WJ65X33081 GE Handle
8	WJ71X33106 GE Top Cover
9	VALVE COVER
10	WJ71X33102 GE Right Side Panel
12	WJ53X24701 GE Tube Assembly 4-Way Valve
13	WJ26X24668 GE Electronic Expansion Valve
14	WJ53X25637 GE Discharge Tube
15	WJ53X24973 GE Liquid Service Valve
16	WJ53X24975 GE Vapor Service Valve
17	WJ53X23008 GE Suction Tube
18	WJ35X25394 GE Outdoor Wire Harness
19	WJ98X22993 GE Compressor
20	CASING
21	WJ26X33175 GE Power Control Board
22	WJ27X23011 GE Indoor Terminal Block
23	WJ27X25393 GE Terminal Block Supply
24	WJ27X23006 GE Reactor
26	WJ01X23219 GE Sensor Clip
27	WJ26X23009 GE Suction Sensor
28	WJ01X22974 GE Flange Nut
29	WJ27X24665 GE Heater Basepan
43	INVERTER ASSEMBLY
57	CONTROL BOX COVER
61	ELECTRICAL BOX
67	WJ71X32956 GE Divider Panel
73	WJ71X33101 GE Crossbeam
77	WJ35X33043 GE Electric Heater Harness
90	BOTTOM PLATE ASSY.
9999	PM INSTALL INSTRUCTIONS
