ASH118URDEB1 ROOM AIR CONDIRIONER

Products

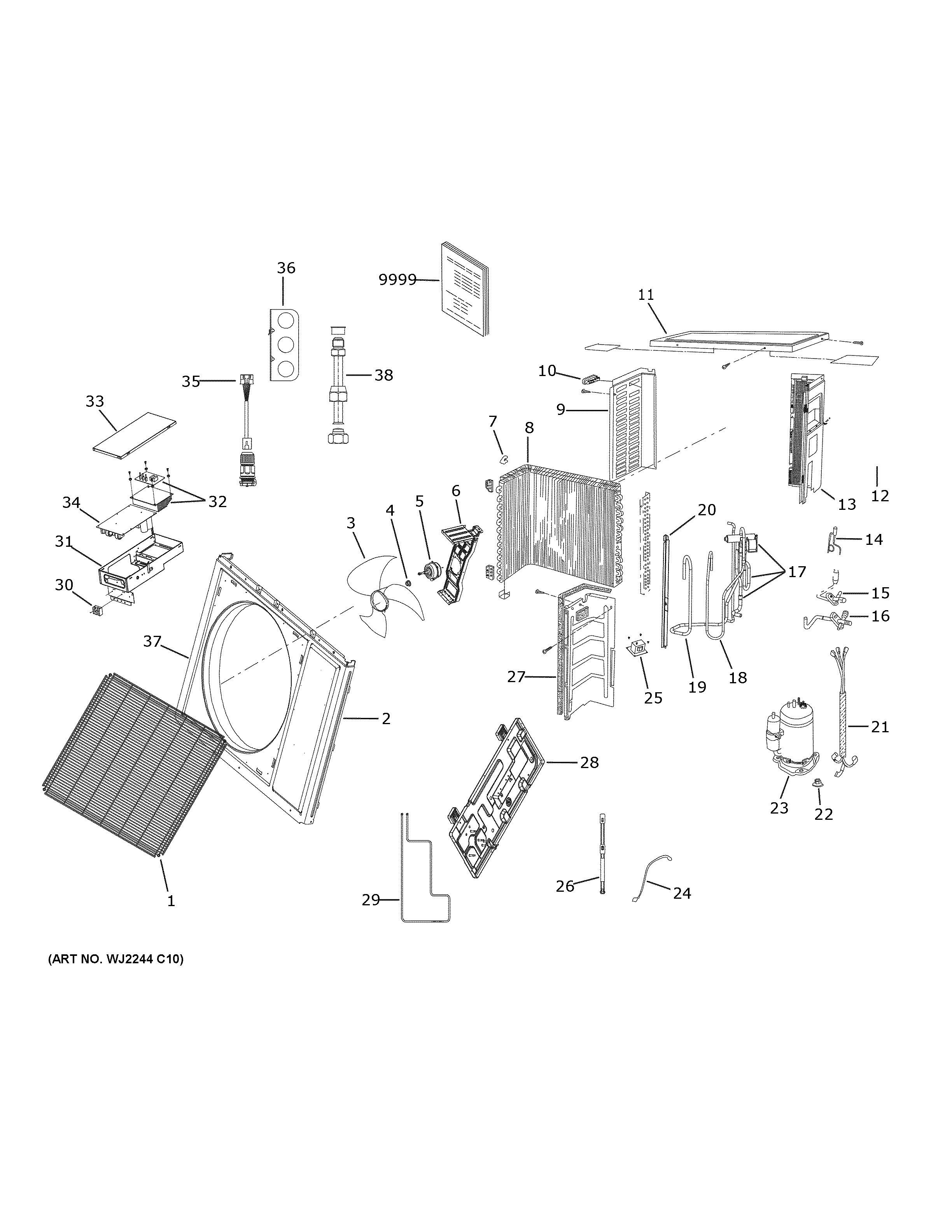

Position	Product
1	WJ71X33077 GE Grill
2	FRONT PANEL
3	WJ73X33082 GE Fan Blade
4	WJ01X22974 GE Flange Nut
5	OUTDOOR FAN MOTOR
6	WJ65X23015 GE Outdoor Fan Motor Bracket
7	WJ01X23219 GE Sensor Clip
8	WJ88X26444 GE Condenser
9	WJ71X33104 GE Left Side Panel
10	WJ65X33081 GE Handle
11	WJ71X33108 GE Top Cover
12	VALVE COVER
13	WJ71X33107 GE Right Side Panel
14	EEV VALVE
15	WJ53X24973 GE Liquid Service Valve
16	WJ53X24975 GE Vapor Service Valve
17	4-WAY VALVE TUBE ASSEMBLY
18	WJ53X25636 GE Discharge Tube
19	WJ53X23020 GE Suction Tube
20	WJ71X33105 GE Crossbeam
21	WJ35X26440 GE Outdoor Wire Harness
22	WJ01X26442 GE Compressor Nut
23	WJ98X23021 GE Compressor
24	WJ26X23009 GE Suction Sensor
25	WJ27X23006 GE Reactor
26	COMPRESSOR HEATER
27	WJ71X32635 GE Partition Panel Plate
28	BOTTOM PLATE ASSY.
29	WJ27X23172 GE Heater Pan
30	WJ27X26435 GE Terminal Block
31	ELECTRICAL BOX
32	WJ26X26479 GE Inverter Assembly
33	CONTROL BOX COVER
34	WJ26X33215 GE Power Control Board
35	RJ45
36	WJ65X27113 GE Bracket Strain Relief
37	WJ71X33103 GE Casing
38	WJ01X27116 GE 1/2" X 3/8" Adapter
9999	PM INSTALL INSTRUCTIONS
