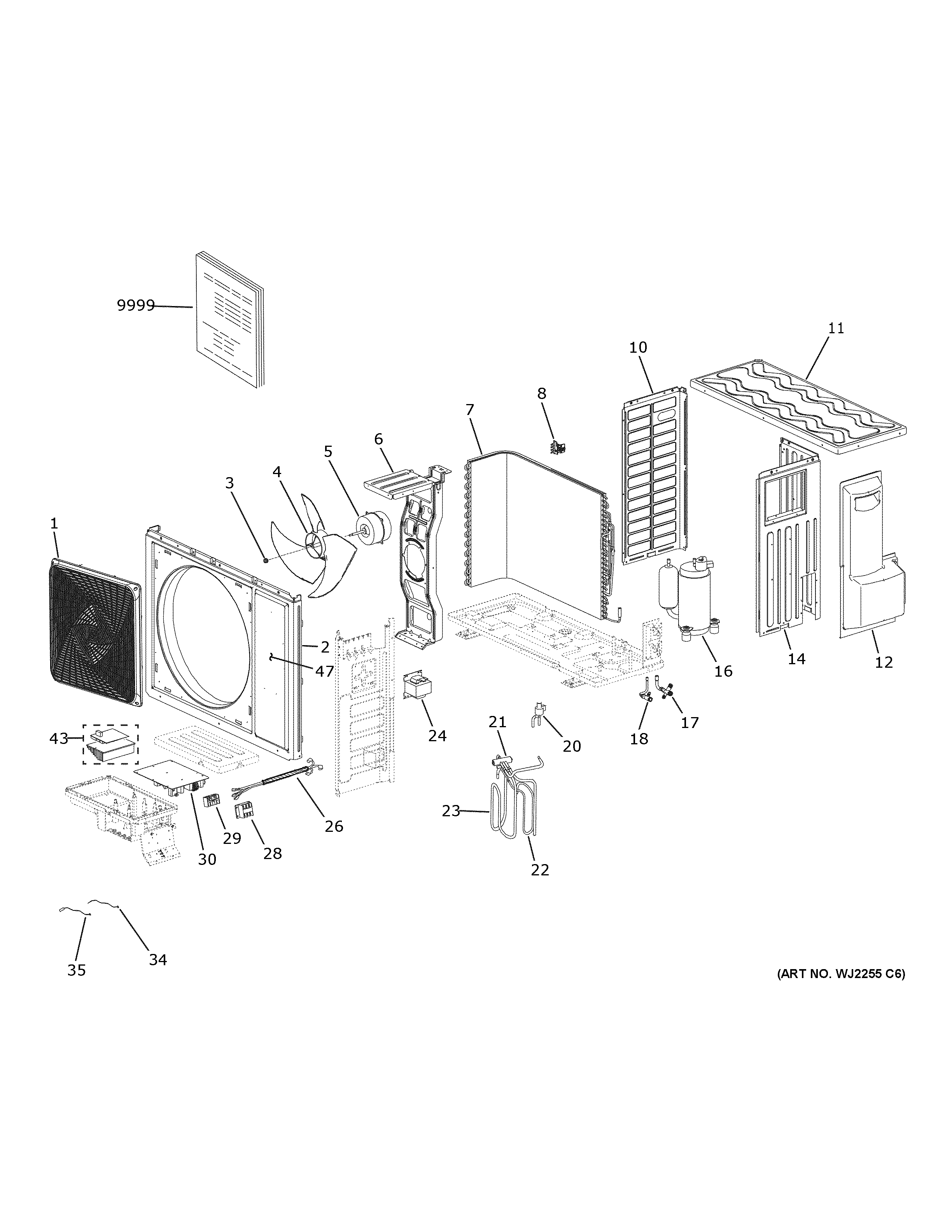

ASH124CRDWA1 ROOM AIR CONDITIONER

Products

PositionProduct
1GRILLE
2WJ76X23221 GE Casing
3WJ01X22974 GE Flange Nut
4FAN BLADE
5OUTDOOR FAN MOTOR
6WJ65X23226 GE Fan Motor Bracket Outdoor
7WJ88X23223 GE Condenser
8WJ01X23219 GE Sensor Clip
10LEFT SIDE PANEL
11TOP COVER
12WJ76X23018 GE Valve Cover
14RIGHT SIDE PANEL
16COMPRESSOR
17WJ53X24975 GE Vapor Service Valve
18WJ53X24973 GE Liquid Service Valve
20WJ53X23213 GE Air Conditioner Electronic Expansion Valve
21WJ53X22987 GE 4-Way Valve Assembly
22WJ53X25635 GE Discharge Tube
23WJ53X23230 GE Suction Tube
24WJ27X23006 GE Reactor
26WJ35X25394 GE Outdoor Wire Harness
28WJ27X23011 GE Indoor Terminal Block
29WJ27X25393 GE Terminal Block Supply
30WJ26X23228 GE Outdoor Power Control Board
34WJ26X23009 GE Suction Sensor
35WJ26X22984 GE Sensor Assembly Amb/Dis/Coil
43WJ26X24107 GE Inverter Assembly
47WJ76X24672 GE Casing Assembly
9999PM INSTALL INSTRUCTIONS
