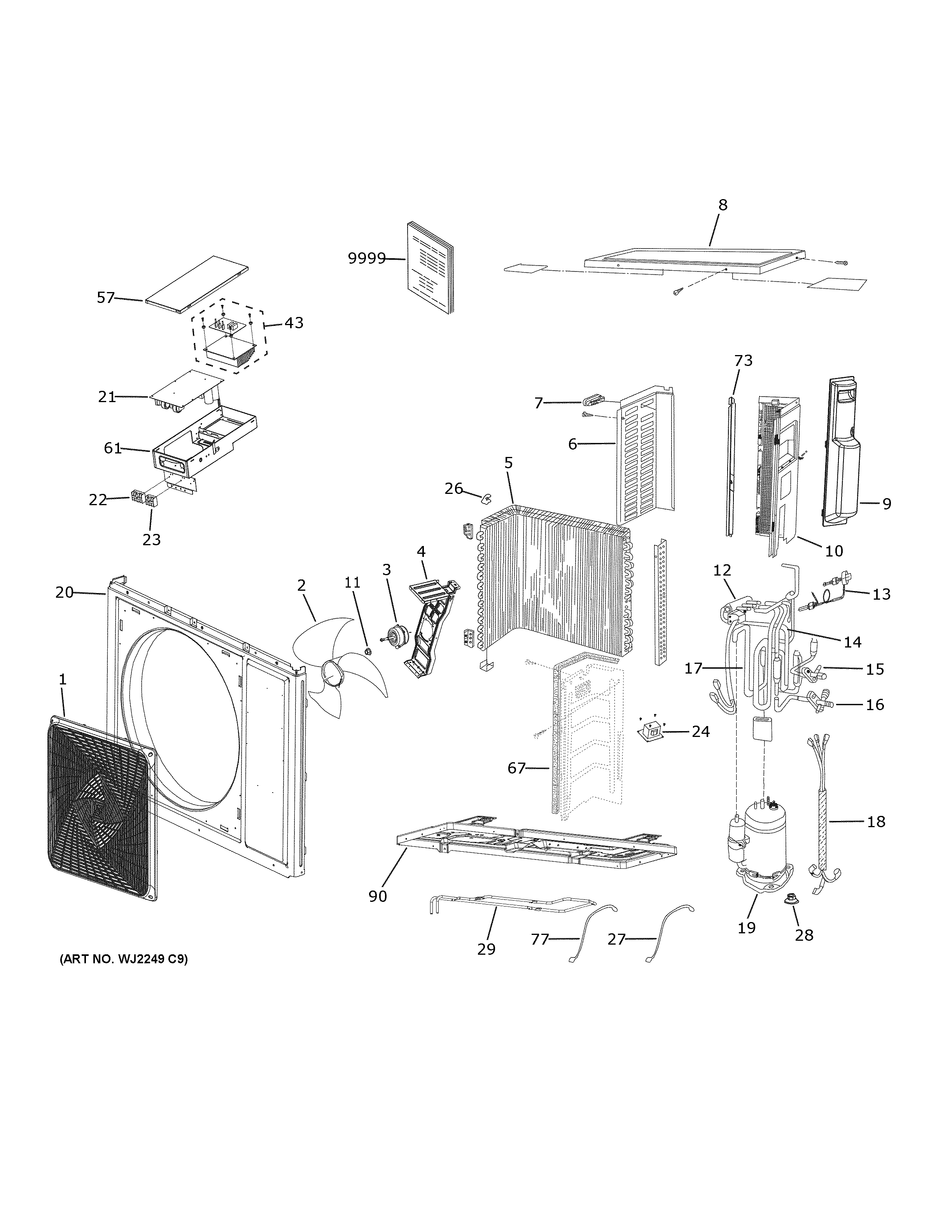

ASH124PRDBB1 ROOM AIR CONDITIONERadmin2025-04-26T08:53:37+00:00ASH124PRDBB1 ROOM AIR CONDITIONER ProductsPositionProduct1WJ71X33077 GE Grill2WJ73X33082 GE Fan Blade3OUTDOOR FAN MOTOR4WJ65X23015 GE Outdoor Fan Motor Bracket5WJ88X23016 GE Condenser6WJ71X33104 GE Left Side Panel7WJ65X33081 GE Handle8WJ71X33108 GE Top Cover9VALVE COVER10WJ71X33107 GE Right Side Panel124-WAY VALVE TUBE ASSEMBLY13WJ26X25395 GE Electronic Expansion Valve14WJ53X25636 GE Discharge Tube15WJ53X24973 GE Liquid Service Valve16WJ53X24975 GE Vapor Service Valve17WJ53X23020 GE Suction Tube18WJ35X25394 GE Outdoor Wire Harness19WJ98X23021 GE Compressor20WJ71X33103 GE Casing21WJ26X33177 GE Power Control Board22WJ27X23011 GE Indoor Terminal Block23WJ27X25393 GE Terminal Block Supply24WJ27X23006 GE Reactor26WJ01X23219 GE Sensor Clip27WJ26X23009 GE Suction Sensor28WJ01X22974 GE Flange Nut29WJ27X23172 GE Heater Pan43INVERTER ASSEMBLY57CONTROL BOX COVER61ELECTRICAL BOX67WJ71X32635 GE Partition Panel Plate73WJ71X33105 GE Crossbeam77WJ35X33043 GE Electric Heater Harness90BOTTOM PLATE ASSY.9999PM INSTALL INSTRUCTIONS
