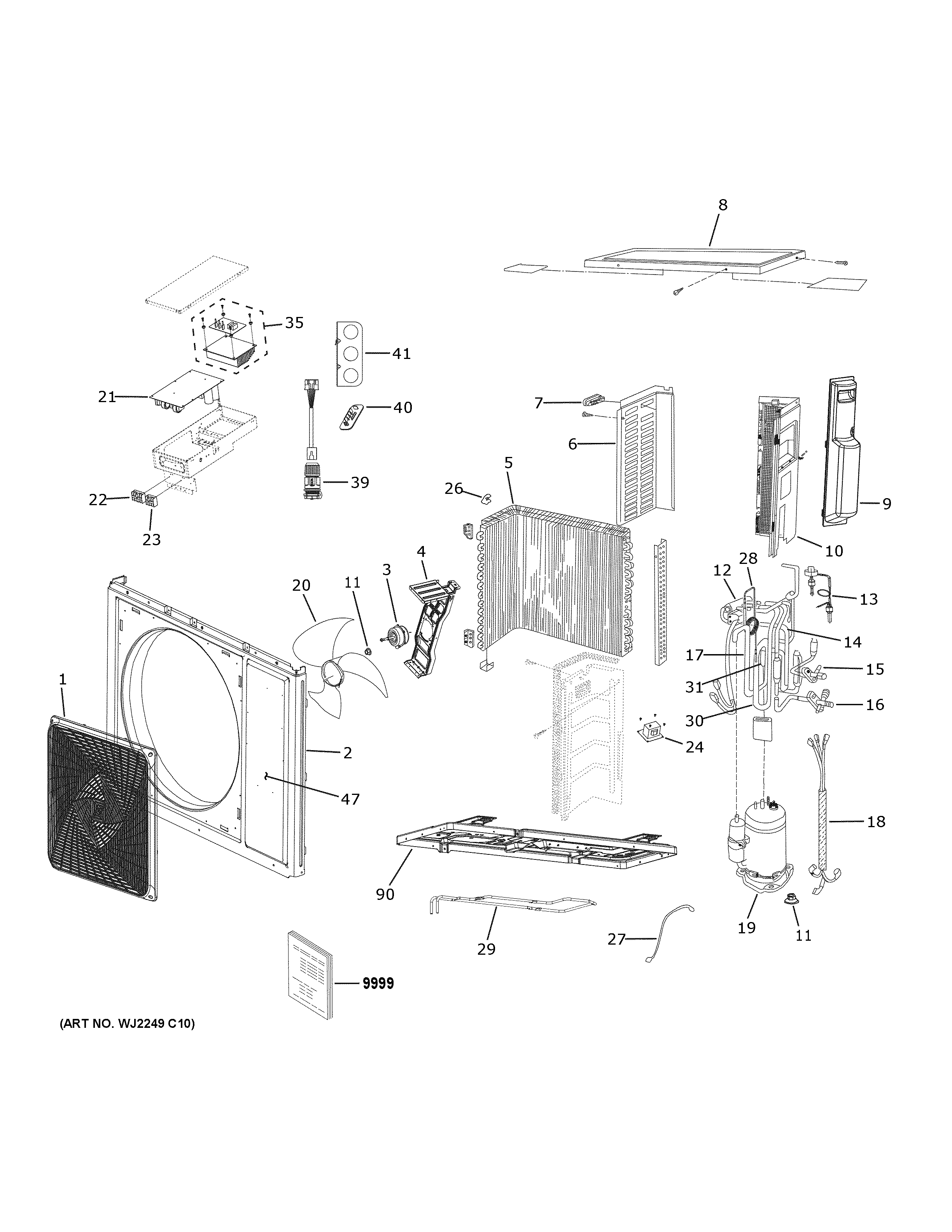

ASH124TRDFA2 ROOM AIR CONDITIONER

Products

Position	Product
1	WJ71X33077 GE Grill
2	WJ71X33103 GE Casing
3	OUTDOOR FAN MOTOR
4	WJ65X23015 GE Outdoor Fan Motor Bracket
5	WJ88X26444 GE Condenser
6	WJ71X33104 GE Left Side Panel
7	WJ65X33081 GE Handle
8	TOP COVER
9	VALVE COVER
10	WJ71X33313 GE Right Side Panel
11	WJ01X22974 GE Flange Nut
12	WJ53X30854 GE 4-Way Valve Tube Assembly
13	EEV VALVE
14	WJ53X29532 GE Discharge Tube
15	WJ53X24974 GE Vapor Service Valve
16	VAPOR SERVICE VALVE
17	WJ53X29533 GE Suction Tube
18	WJ35X29527 GE Outdoor Harness Wire
19	WJ98X26204 GE Compressor
20	WJ73X32233 GE Fan Blade
21	POWER CONTROL BOARD
22	WJ27X23011 GE Indoor Terminal Block
23	WJ26X23520 GE Terminal Block
24	WJ27X29538 GE Reactor Assembly
26	WJ01X23219 GE Sensor Clip
27	WJ26X23009 GE Suction Sensor
28	WJ53X29531 GE Tube Cap
29	COMPRESSOR HEATER
30	WJ53X29530 GE Suction Tube
31	GAS-LIQUID SEPARATOR
35	INVERTER
39	RJ45
40	WJ76X27114 GE Cover
41	WJ65X27113 GE Bracket Strain Relief
47	FRONT SERVICE PANEL
90	BOTTOM PLATE ASSY.
9999	PM INSTALL INSTRUCTIONS
