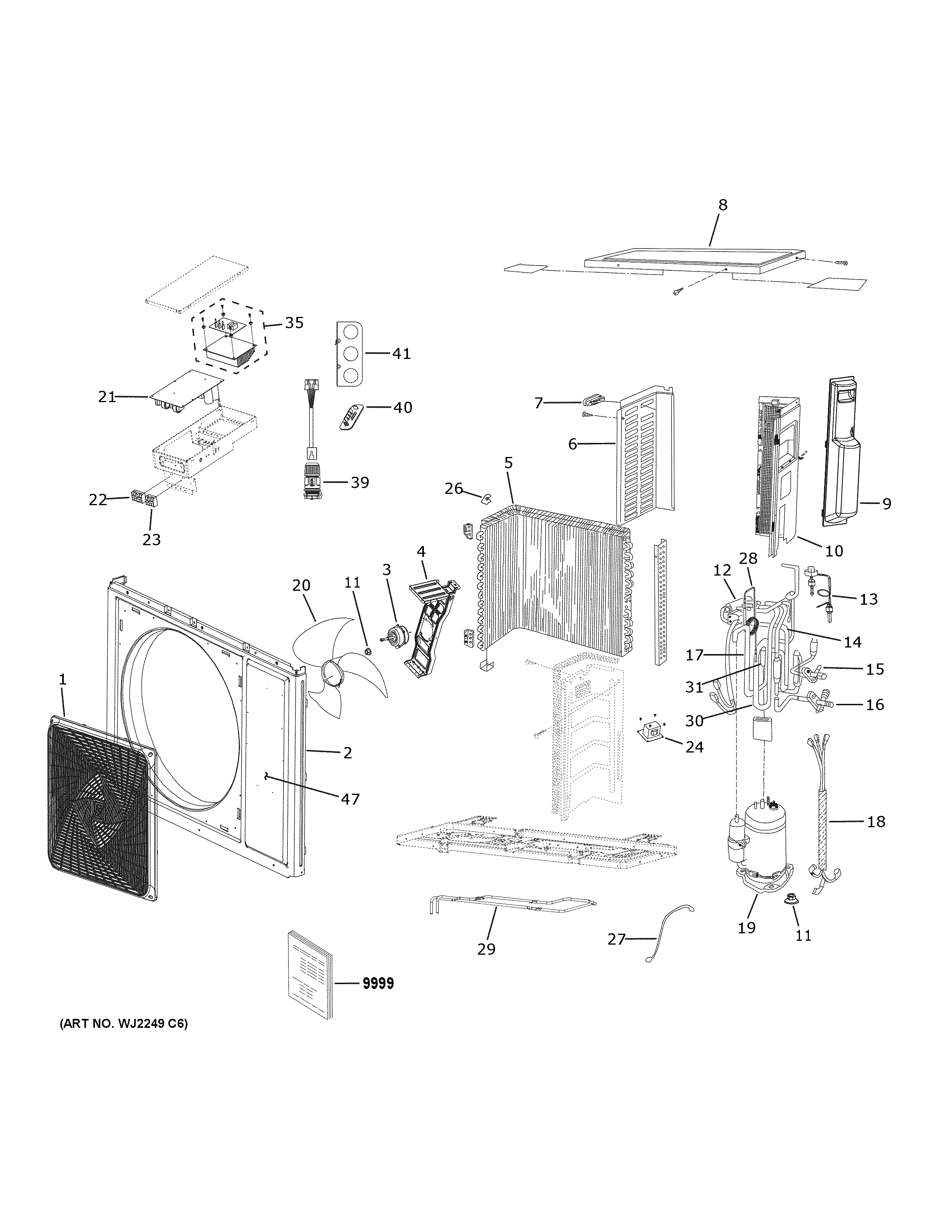

ASH3036TRDFA1 ROOM AIR CONDITIONER

Products

Position	Product
1	GRILLE
2	WJ76X23221 GE Casing
3	OUTDOOR FAN MOTOR
4	WJ65X23015 GE Outdoor Fan Motor Bracket
5	WJ88X26444 GE Condenser
6	LEFT SIDE PANEL
7	WJ01X24664 GE Handle
8	TOP COVER
9	WJ76X23018 GE Valve Cover
10	RIGHT SIDE PANEL
11	WJ01X22974 GE Flange Nut
12	WJ53X30854 GE 4-Way Valve Tube Assembly
13	EEV VALVE
14	WJ53X29532 GE Discharge Tube
15	WJ53X24974 GE Vapor Service Valve
16	VAPOR SERVICE VALVE
17	WJ53X29533 GE Suction Tube
18	WJ35X29527 GE Outdoor Harness Wire
19	WJ98X26204 GE Compressor
20	FAN BLADE
21	POWER CONTROL BOARD
22	WJ27X23011 GE Indoor Terminal Block
23	WJ26X23520 GE Terminal Block
24	WJ27X29538 GE Reactor Assembly
26	WJ01X23219 GE Sensor Clip
27	WJ26X23009 GE Suction Sensor
28	WJ53X29531 GE Tube Cap
29	COMPRESSOR HEATER
30	WJ53X29530 GE Suction Tube
31	GAS-LIQUID SEPARATOR
35	INVERTER
39	RJ45
40	WJ76X27114 GE Cover
41	WJ65X27113 GE Bracket Strain Relief
47	WJ76X24672 GE Casing Assembly
9999	PM INSTALL INSTRUCTIONS
