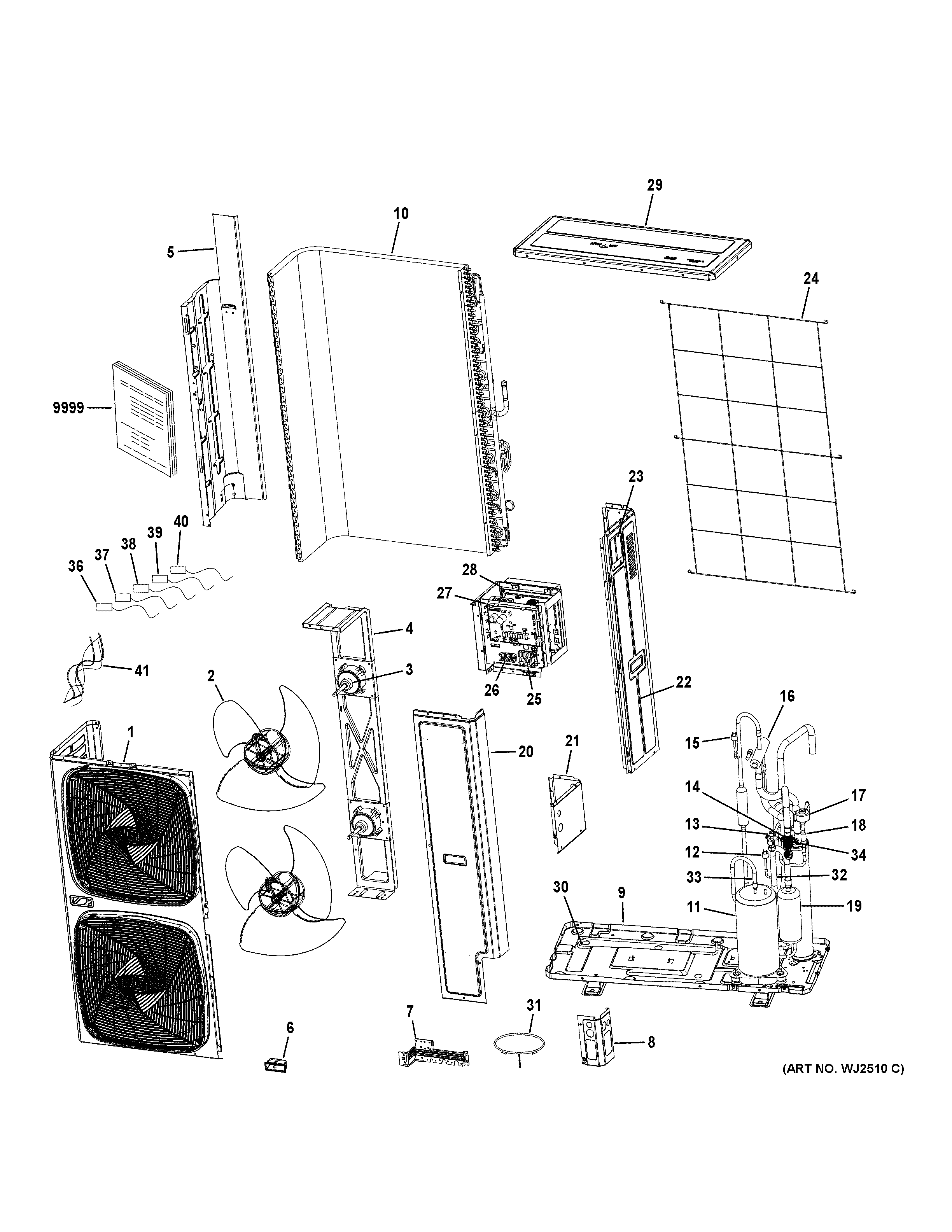

ASH4248UCDDA1 ROOM AIR CONDITIONERadmin2025-04-26T08:53:59+00:00ASH4248UCDDA1 ROOM AIR CONDITIONER ProductsPositionProduct1WJ71X32434 GE Front Panel Assembly2WJ73X32233 GE Fan Blade3WJ94X31189 GE DC Fan Motor4WJ65X31171 GE Fan Motor Bracket5WJ71X31172 GE Left Side Panel6WJ65X32236 GE Handle7WJ65X31313 GE Valve Bracket8WJ71X32432 GE Front Passthrough Panel9BOTTOM BASE PAN10WJ88X31173 GE Condenser Assembly11WJ98X31160 GE Compressor12WJ26X23722 GE Low Pressure Switch13WJ58X32300 GE Liquid Service Valve14VAPOR SERVICE VALVE15WJ27X22646 GE High Pressure Switch16WJ53X22661 GE Reversing Valve Body17WJ53X22639 GE Electronic Expansion Valve18STRAINER19WJ53X31159 GE Gas Liquid Separator20WJ71X32429 GE Left Corner Access Panel21WJ71X32613 GE Rear Passthrough Panel22WJ71X32433 GE Right Side Panel23WJ76X32414 GE Diagnostic Board Cover24CONDSENDING COIL GUARD25TERMINAL BLOCK26WJ26X25073 GE Terminal Block Supply27PCB28WJ26X31254 GE Inverter Board29WJ76X32424 GE Top Cover30WJ70X32311 GE Heater Base Pan31WJ27X22685 GE Sump Heater32WJ56X32304 GE Suction Pipe33DISCHARGING PIPE34VALVE SEAT GROUP36DISCHARGE TEMP. SENSOR37SUCTION SENSOR38AMBIENT TEMP. SENSOR39EVAPORATOR SENSOR40WJ26X32298 GE Defrost Temperature Sensor41WJ35X31776 GE Wiring Harness9999PM INSTALL INSTRUCTIONS
