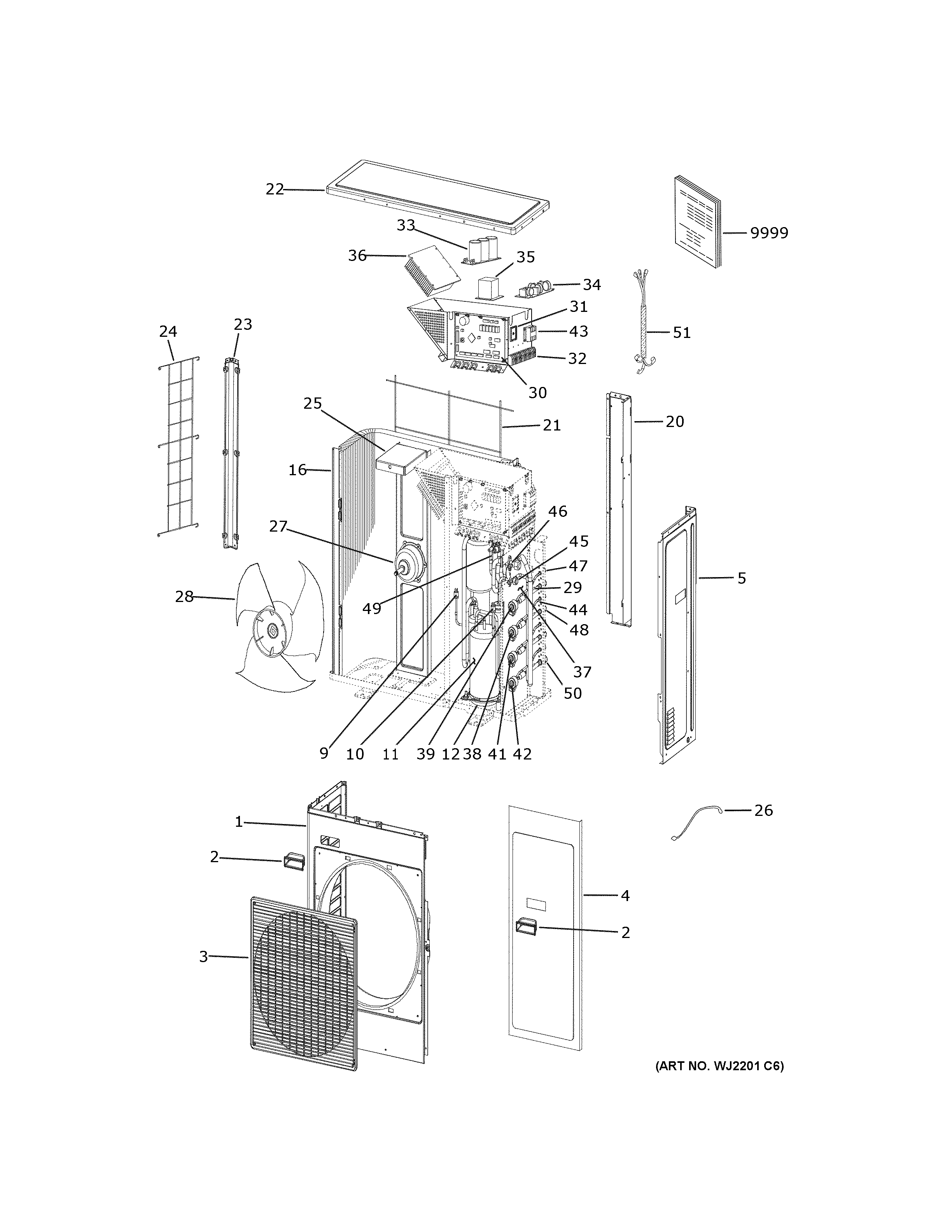

ASH436JCDDA1 ROOM AIR CONDITIONER

Products

Position	Product
1	WJ71X28933 GE Panel Front
2	WJ65X25041 GE Handle
3	FRONT GRILLE
4	WJ71X29694 GE Front Panel
5	WJ71X23737 GE Right Side Panel
9	WJ26X23722 GE Low Pressure Switch
10	WJ27X22646 GE High Pressure Switch
11	COMPRESSOR
12	WJ27X25045 GE Band Heater
16	WJ88X29334 GE Condenser Assembly
20	WJ71X25051 GE Rear Panel
21	WJ71X25038 GE Rear Grille
22	WJ76X29693 GE Top Cover
23	WJ65X25040 GE Column Stand
24	LEFT GRILLE
25	WJ65X23733 GE Outdoor Fan Motor Bracket
26	WJ26X28816 GE Refrigerator Defrost/Suction/Discharge Temperature
27	WJ94X25044 GE Fan Motor
28	FAN BLADE
29	WJ26X28815 GE Liquid Pipe Sensor
30	OUTDOOR POWER CONTROL BOARD
31	SERVICE POWER CONTROL BOARD
32	WJ26X23730 GE Indoor Terminal Block
33	WJ20X25033 GE Power Control Board Capacitor
34	WJ26X25043 GE Power Control Board Filter
35	WJ26X23734 GE Reactor
36	WJ26X25173 GE Inverter Driver Module
37	WJ53X23724 GE Outdoor EEV Coil Assembly
38	WJ26X25034 GE Leveling Coil
39	WJ26X24364 GE Evaporator Coil
41	LEV COIL C (BLLUE)
42	WJ26X26195 GE Coil D (White)
43	WP26X28216 GE Terminal Block Communication
44	WJ26X28814 GE Gas Pipe Sensor
45	WJ26X24368 GE Liquid Service Valve
46	WJ26X24369 GE Vapor Service Valve
47	WJ53X25046 GE Liquid Pipe 1/4"
48	WJ53X25047 GE Gas Pipe 3/8 Inch
49	WJ53X23567 GE 4-Way Valve
50	WJ53X26205 GE Gas Pipe 1/2 Inch
51	WJ35X29453 GE Wiring Harness Assembly
9999	PM INSTALL INSTRUCTIONS
